6SL3201-0BE23-8AA0 Siemens - Sinamics тормозной резистор R=30OM длительная МОЩНОСТЬ=925ВТ макс. МОЩНОСТЬ

доп. склад: 4

₸306 642

6SL3201-0BE21-0AA0 Siemens - Sinamics тормозной резистор R=140OM длительная МОЩНОСТЬ=200ВТ макс

доп. склад: 1

Цена по запросу

6SL3201-0BE14-3AA0 Siemens - Sinamics тормозной резистор R=370OM длительная МОЩНОСТЬ=75ВТ макс. МОЩНОСТЬ

Цена по запросу

Последнее обновление цен: 2 августа 2026

Обзор

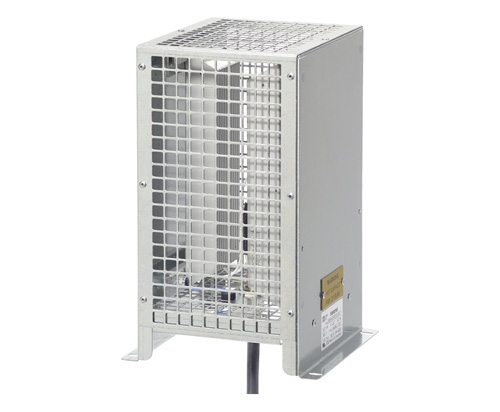

Braking resistor for PM240‑2 Power Modules, frame size FSD

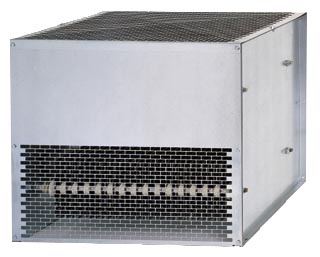

Braking resistor for PM240‑2 Power Modules, frame size FSG

Excess energy in the DC link is dissipated in the braking resistor. The braking resistors are intended for use with PM240‑2 Power Modules which feature an integrated braking chopper, but cannot regenerate energy to the supply system. For regenerative operation, e.g. the braking of a rotating mass with high moment of inertia, a braking resistor must be connected to convert the resulting energy into heat.

The braking resistors can be installed laterally next to the PM240‑2 Power Modules. The braking resistors for the Power Modules, frame sizes FSD to FSG, should be placed outside the control cabinet or outside the switchgear room so that the heat is dissipated away from the Power Modules. The level of air conditioning required is therefore reduced.

Every braking resistor has a temperature switch (UL-listed). The temperature switch should be evaluated to prevent consequential damage if the braking resistor overheats.

Note:

For the electromagnetically compatible connection of an optionally connectable braking resistor, the corresponding shield connection kit is to be ordered for frame sizes FSD to FSG.

For more information, see shield connection kits for blocksize format.

Интеграция

Braking resistors that are optionally available depending on the Power Module used

	Frame size
	FSA	FSB	FSC	FSD	FSE	FSF	FSG
PM240-2 Power Module with integrated braking chopper
200 V versions	✓	✓	✓	✓	✓	✓	–
400 V versions	✓	✓	✓	✓	✓	✓	✓
690 V versions	–	–	–	✓	✓	✓	✓
DC link components
Braking resistor	S	S	S	S	S	S	S

S = Lateral mounting

– = Not possible

Заказные данные

Rated power		PM240‑2 Power Module		Braking resistor (The prefix "JJY:" is part of a Siemens internal order code which does not belong to the product number of the original equipment manufacturer Heine Resistor GmbH)
Rated power		Standard variant
kW	hp	Type 6SL3210-...	Frame size	Article No.
200 ... 240 V 1 AC/3 AC
0.55	0.75	1PB13-0 . L0	FSA	JJY:023146720008
0.75	1	1PB13-8 . L0	FSA	JJY:023146720008
1.1	1.5	1PB15-5 . L0	FSB	JJY:023151720007
1.5	2	1PB17-4 . L0
2.2	3	1PB21-0 . L0
3	4	1PB21-4 . L0	FSC	JJY:023163720018
4	5	1PB21-8 . L0	FSC	JJY:023163720018
200 ... 240 V 3 AC
5.5	7.5	1PC22-2 . L0	FSC	JJY:023433720001
7.5	10	1PC22-8 . L0	FSC	JJY:023433720001
11	15	1PC24-2UL0	FSD	JJY:023422620002
15	20	1PC25-4UL0
18.5	25	1PC26-8UL0
22	30	1PC28-0UL0	FSE	JJY:023423320001
30	40	1PC31-1UL0	FSE	JJY:023423320001
37	50	1PC31-3UL0	FSF	JJY:023434020003
45	60	1PC31-6UL0
55	75	1PC31-8UL0
380 ... 480 V 3 AC
0.55	0.75	1PE11-8 . L1	FSA	6SL3201-0BE14-3AA0
0.75	1	1PE12-3 . L1
1.1	1.5	1PE13-2 . L1
1.5	2	1PE14-3 . L1
2.2	3	1PE16-1 . L1	FSA	6SL3201-0BE21-0AA0
3	4	1PE18-0 . L1	FSA	6SL3201-0BE21-0AA0
4	5	1PE21-1 . L0	FSB	6SL3201-0BE21-8AA0
5.5	7.5	1PE21-4 . L0
7.5	10	1PE21-8 . L0
11	15	1PE22-7 . L0	FSC	6SL3201-0BE23-8AA0
15	20	1PE23-3 . L0	FSC	6SL3201-0BE23-8AA0
18.5	25	1PE23-8 . L0	FSD	JJY:023422620001
22	30	1PE24-5 . L0	FSD	JJY:023422620001
30	40	1PE26-0 . L0	FSD	JJY:023424020001
37	50	1PE27-5 . L0	FSD	JJY:023424020001
45	60	1PE28-8 . L0	FSE	JJY:023434020001
55	75	1PE31-1 . L0	FSE	JJY:023434020001
75	100	1PE31-5 . L0	FSF	JJY:023454020001
90	125	1PE31-8 . L0	FSF	JJY:023454020001
110	150	1PE32-1 . L0	FSF	JJY:023464020001
132	200	1PE32-5 . L0	FSF	JJY:023464020001
160	250	1PE33-0 . L0	FSG	6SL3000-1BE32-5AA0
200	300	1PE33-7 . L0
250	400	1PE34-8 . L0
500 ... 690 V 3 AC
11	10	1PH21-4 . L0	FSD	JJY:023424020002
15	15	1PH22-0 . L0
18.5	20	1PH22-3 . L0
22	25	1PH22-7 . L0
30	30	1PH23-5 . L0
37	40	1PH24-2 . L0
45	50	1PH25-2 . L0	FSE	JJY:023434020002
55	60	1PH26-2 . L0	FSE	JJY:023434020002
75	75	1PH28-0 . L0	FSF	JJY:023464020002
90	100	1PH31-0 . L0
110	100	1PH31-2 . L0
132	125	1PH31-4 . L0
160	150	1PH31-7CL0	FSG	6SL3000-1BH32-5AA0
200	200	1PH32-1CL0
250	250	1PH32-5CL0

Технические данные

Line voltage 200 ... 240 V 1 AC/3 AC		Braking resistor
		JJY:023146720008	JJY:023151720007	JJY:023163720018
Resistance	Ω	200	68	37
Rated power P_DB (continuous braking power)	kW	0.0375	0.11	0.2
Peak power P_max (load duration t_a = 12 s with period t = 240 s)	kW	0.75	2.2	4
Power connection		Cable	Cable	Cable
Thermostatic switch		Integrated	Integrated	Integrated
Degree of protection		IP20	IP20	IP20
Dimensions
Width	mm (in)	60 (2.36)	60 (2.36)	60 (2.36)
Height	mm (in)	167 (6.57)	217 (8.54)	337 (13.27)
Depth	mm (in)	30 (1.18)	30 (1.18)	30 (1.18)
Weight, approx.	kg (lb)	0.5 (1.10)	0.7 (1.54)	1.1 (2.43)
Suitable for PM240‑2 Power Module standard variant	Type	6SL3210-1PB13-0 . L0 6SL3210-1PB13-8 . L0	6SL3210-1PB15-5 . L0 6SL3210-1PB17-4 . L0 6SL3210-1PB21-0 . L0	6SL3210-1PB21-4 . L0 6SL3210-1PB21-8 . L0
Frame size		FSA	FSB	FSC

Line voltage 200 ... 240 V 3 AC		Braking resistor
		JJY:023433720001	JJY:023422620002	JJY:023423320001	JJY:023434020003
Resistance	Ω	20	7.5	4.5	2.5
Rated power P_DB (continuous braking power)	kW	0.375	0.93	1.5	2.75
Peak power P_max (load duration t_a = 12 s with period t = 240 s)	kW	7.5	18.5	30	55
Power connection		Cable	Cable	Cable	Cable
Thermostatic switch		Integrated	Integrated	Integrated	Integrated
Degree of protection		IP20	IP21	IP21	IP21
Dimensions
Width	mm (in)	337 (13.27)	220 (8.66)	220 (8.66)	350 (13.78)
Height	mm (in)	120 (4.72)	470 (18.50)	560 (22.05)	630 (24.80)
Depth	mm (in)	30 (1.18)	180 (7.09)	180 (7.09)	180 (7.09)
Weight, approx.	kg (lb)	2 (4.41)	7 (15.4)	8.5 (18.7)	13.5 (29.8)
Suitable for PM240‑2 Power Module standard variant	Type	6SL3210-1PC22-2 . L0 6SL3210-1PC22-8 . L0	6SL3210-1PC24-2UL0 6SL3210-1PC25-4UL0 6SL3210-1PC26-8UL0	6SL3210-1PC28-0UL0 6SL3210-1PC31-1UL0	6SL3210-1PC31-3UL0 6SL3210-1PC31-6UL0 6SL3210-1PC31-8UL0
Frame size		FSC	FSD	FSE	FSF

Line voltage 380 ... 480 V 3 AC		Braking resistor
		6SL3201-0BE14-3AA0	6SL3201-0BE21-0AA0	6SL3201-0BE21-8AA0	6SL3201-0BE23-8AA0
Resistance	Ω	370	140	75	30
Rated power P_DB (continuous braking power)	kW	0.075	0.2	0.375	0.925
Peak power P_max (load duration t_a = 12 s with period t = 240 s)	kW	1.5	4	7.5	18.5
Power connection		Terminal block	Terminal block	Terminal block	Terminal block
Conductor cross-section	mm²	2.5	2.5	4	6
Thermostatic switch		NC contact	NC contact	NC contact	NC contact
Contact load, max.		250 V AC/2.5 A	250 V AC/2.5 A	250 V AC/2.5 A	250 V AC/2.5 A
Conductor cross-section	mm²	2.5	2.5	2.5	2.5
PE connection
Via terminal block		Yes	Yes	Yes	Yes
PE connection on housing		M4 screw	M4 screw	M4 screw	M4 screw
Degree of protection		IP20	IP20	IP20	IP20
Dimensions
Width	mm (in)	105 (4.13)	105 (4.13)	175 (6.89)	250 (9.84)
Height	mm (in)	295 (11.61)	345 (13.58)	345 (13.58)	490 (19.29)
Depth	mm (in)	100 (3.94)	100 (3.94)	100 (3.94)	140 (5.51)
Weight, approx.	kg (lb)	1.48 (3.26)	1.8 (3.97)	2.73 (6.02)	6.2 (13.7)
Suitable for PM240‑2 Power Module standard variant	Type	6SL3210-1PE11-8 . L1 6SL3210-1PE12-3 . L1 6SL3210-1PE13-2 . L1 6SL3210-1PE14-3 . L1	6SL3210-1PE16-1 . L1 6SL3210-1PE18-0 . L1	6SL3210-1PE21-1 . L0 6SL3210-1PE21-4 . L0 6SL3210-1PE21-8 . L0	6SL3210-1PE22-7 . L0 6SL3210-1PE23-3 . L0
Frame size		FSA	FSA	FSB	FSC

Line voltage 380 ... 480 V 3 AC		Braking resistor
		JJY:023422620001	JJY:023424020001	JJY:023434020001	JJY:023454020001 ¹⁾	JJY:023464020001 ²⁾
Resistance	Ω	25	15	10	7.1	5
Rated power P_DB (continuous braking power)	kW	1.1	1.85	2.75	3.85	5.5
Peak power P_max (load duration t_a = 12 s with period t = 240 s)	kW	22	37	55	77	110
Power connection		Cable	Cable	Cable	Cable	Cable
Thermostatic switch		Integrated	Integrated	Integrated	Integrated	Integrated
Degree of protection		IP21	IP21	IP21	IP21	IP21
Dimensions
Width	mm (in)	220 (8.66)	220 (8.66)	350 (13.78)	¹⁾	²⁾
Height	mm (in)	470 (18.50)	610 (24.02)	630 (24.80)	¹⁾	²⁾
Depth	mm (in)	180 (7.09)	180 (7.09)	180 (7.09)	¹⁾	²⁾
Weight, approx.	kg (lb)	7 (15.4)	9.5 (20.9)	13.5 (29.8)	20.5 (45.2)	27 (59.5)
Suitable for PM240‑2 Power Module standard variant	Type	6SL3210-1PE23-8 . L0 6SL3210-1PE24-5 . L0	6SL3210-1PE26-0 . L0 6SL3210-1PE27-5 . L0	6SL3210-1PE28-8 . L0 6SL3210-1PE31-1 . L0	6SL3210-1PE31-5 . L0 6SL3210-1PE31-8 . L0	6SL3210-1PE32-1 . L0 6SL3210-1PE32-5 . L0
Frame size		FSD	FSD	FSE	FSF	FSF

¹⁾ This braking resistor consists of the two braking resistors, JJY:023422620001 and JJY:023434020001, which must be connected in parallel on the plant/system side.

²⁾ This braking resistor consists of two JJY:023434020001 braking resistors, which must be connected in parallel on the plant/system side.

Line voltage 500 ... 690 V 3 AC		Braking resistor
		JJY:023424020002	JJY:023434020002	JJY:023464020002 ¹⁾
Resistance	Ω	31	21	10.5
Rated power P_DB (continuous braking power)	kW	1.85	2.75	5.5
Peak power P_max (load duration t_a = 12 s with period t = 240 s)	kW	37	55	110
Power connection		Cable	Cable	Cable
Thermostatic switch		Integrated	Integrated	Integrated
Degree of protection		IP21	IP21	IP21
Dimensions
Width	mm (in)	220 (8.66)	350 (13.78)	¹⁾
Height	mm (in)	610 (24.02)	630 (24.80)	¹⁾
Depth	mm (in)	180 (7.09)	180 (7.09)	¹⁾
Weight, approx.	kg (lb)	9.5 (20.9)	13.5 (29.8)	27 (59.5)
Suitable for PM240‑2 Power Module	Type	6SL3210-1PH21-4 . L0 6SL3210-1PH22-0 . L0 6SL3210-1PH22-3 . L0 6SL3210-1PH22-7 . L0 6SL3210-1PH23-5 . L0 6SL3210-1PH24-2 . L0	6SL3210-1PH25-2 . L0 6SL3210-1PH26-2 . L0	6SL3210-1PH28-0 . L0 6SL3210-1PH31-0 . L0 6SL3210-1PH31-2 . L0 6SL3210-1PH31-4 . L0
Frame size		FSD	FSE	FSF

¹⁾ This braking resistor consists of two JJY:023434020002 braking resistors, which must be connected in parallel on the plant/system side.

Line voltage 380 ... 480 V 3 AC or 500 ... 690 V 3 AC		Braking resistor
		6SL3000-1BE32-5AA0	6SL3000-1BH32-5AA0
Resistance	Ω	2.2	4.9
Rated power P_DB (Continuous braking power for operation with PM240‑2)	kW	12.5	12.5
Peak power P_max (load duration t_a = 12 s with period t = 240 s)	kW	250	250
Power connection		M10 screw stud	M10 screw stud
Thermostatic switch		NC contact	NC contact
Contact load, max.		250 V AC/2.5 A	250 V AC/2.5 A
Degree of protection		IP20	IP20
Dimensions
Width	mm (in)	810 (31.89)	810 (31.89)
Height	mm (in)	1325 (52.17)	1325 (52.17)
Depth	mm (in)	485 (19.09)	485 (19.09)
Weight, approx.	kg (lb)	120 (265)	120 (265)
Suitable for PM240‑2 Power Module	Type	400 V: 6SL3210-1PE33-0 . L0 6SL3210-1PE33-7 . L0 6SL3210-1PE34-8 . L0	690 V: 6SL3210-1PH31-7CL0 6SL3210-1PH32-1CL0 6SL3210-1PH32-5CL0
Frame size		FSG	FSG

Характеристика

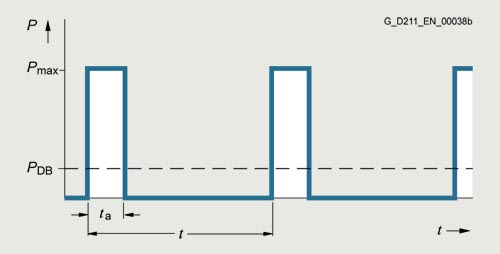

Load diagram for the braking resistors

t_a = 12 s

t = 240 s
