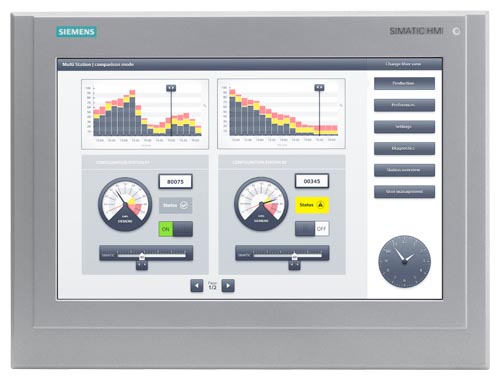

    SIMATIC HMI Comfort Panels Outdoor

    Special HMI Panels have been developed which are designed to withstand outdoor environments.

    It's not only extreme temperatures which call for robust hardware. Direct sunlight, too, must not be allowed to impair display readability and the panel front must be protected from UV radiation. The specially-bonded Outdoor fronts and the rugged hardware of the Outdoor Panels make the SIMATIC HMI Comfort Panels Outdoor a reliable partner in this environment.

    • For outdoor operation without additional measures
    • 7" and 15" daylight-readable display, widescreen
    • Automatic, central or manual dimming of the backlight, with integrated sensor
    • Panel front 100% UV protected
    • Front resistant to salt mist
    • Front IP66 and Nema4 x (indoor/outdoor)
    • Numerous explosion protection and shipbuilding certifications
    • Extended operating temperature range: from -30 °C to +60 °C at 3 000 m installation altitude
    • TIA Portal central engineering tool (WinCC V13 SP1&HSP or higher)
    • Comfort Panel functionality and performance

    Notice:

    The 7" Comfort Panel Outdoor corresponds to a 7" Comfort Panel Standard, the 15" Comfort Panel Outdoor corresponds to a 12" Comfort Panel Standard in respect of performance, functionality and quantity structure.

    More information is available at this link

    Особенности

    • No additional expense or measures in the outdoor area for:
      • Climatic adaptations
      • UV protection
      • Glare protection
      • Automatic dimming
    • Integral component of Totally Integrated Automation (TIA):
      Increased productivity, minimum engineering overhead, reduction in life-cycle costs.
    • Can also be deployed in an upright position in a laterally limited installation space (all touch devices).
    • Seamless compatibility across the Comfort Panel range for existing projects from Standard to Outdoor.
      This means that TP700 Comfort Standard and TP1200 Comfort Standard projects can be used without issue on TP700 Comfort Outdoor and/or TP1500 Comfort Outdoor Panels. The TP1500 Comfort Outdoor Panel displays the configuration of the TP1200 Comfort Standard proportionately larger.
    • Projects can be created with a Standard Panel, and subsequently also used on an Outdoor Panel (device switchover).

    Область применения

    The Outdoor Panels can be operated in outdoor environments without the need for additional measures. Additional heating or cooling units are not required. The daylight-readable display is optically bonded to the unit and is glare-free thanks to special polarizing films. So the screen contents are highly legible even in daylight.

    The Panel is just at home In the marine sector as it is offshore. Drilling platforms, ships, special vehicles or other, awkwardly located fields of application can now be easily accessed.

    Дизайн

    • The mechanical design of the SIMATIC HMI Comfort Outdoor Panels differentiates them from other units in that they have an extremely rugged appearance.
    • The front is made from milled, powder-coated aluminum.
    • Special powder coating protects the front against ultraviolet radiation and salt mist.
    • The GFG Touch (glass-foil-glass) is bonded to the display to form a single optical unit. This ensures that no moisture can get between the two layers to cause fogging and also prevents reflective phenomena to the largest possible extent.
    • This high-quality bonding enables energy-saving backlight to be used, in contrast to very bright, energy-intensive backlit displays which achieve the same effects.
    • The dimension drawings can be found in the manual available as a free download in the SIMATIC Support area. Online 3D CAD drawings are also available.
    • An integrated PN switch provides two PN interfaces for operation in ring or line topologies. This enables hardware configurations that do not require additional network components.
    • For applications where there are aggressive substances in the atmosphere, the electrical components can have customized hardening (see also SIPLUS variants).

    Функции

    The functionality is identical to that of the corresponding Standard Panel - a TP700 Comfort Standard is the equivalent of TP700 Comfort Outdoor, just as a TP1200 Comfort Standard is the equivalent of a TP1500 Comfort Outdoor. The sole distinguishing feature is their size.

    The complete functionality and all the details of the devices are thoroughly described in their corresponding manuals. A comprehensive online help resource is also available for direct support in the TIA Portal.

    Интеграция

    SIMATIC HMI Comfort Outdoor Panels can be connected to:

    • SIMATIC S7 controllers
    • Third-party controllers
      • Allen Bradley DF1, Allen Bradley Ethernet/IP
      • Modicon MODBUS RTU, Modicon MODBUS TCP/IP
      • Mitsubishi FX, Mitsubishi MC TCP/IP
      • Omron Hostlink/Multilink
    • OPC UA client or OPC DA server
    • Multi-protocol capability
    • http communication with other SIMATIC HMI systems
    • Over Ethernet (TCP/IP) to a higher-level PC, network printer

    Note:

    Further information can be found under "System interfaces".

    Технические данные

    Article number

    6AV2124-0GC13-0AX0

    6AV2124-0QC13-0AX0

    SIMATIC HMI TP700 Comfort Outdoor

    SIMATIC HMI TP1500 Comfort Outdoor

    General information

    Product type designation

    TP700 Comfort Outdoor

    TP1500 Comfort Outdoor

    Display

    Design of display

    TFT, bonded, daylight-readable

    TFT, bonded, daylight-readable

    Screen diagonal

    7 in

    15.4 in

    Display width

    152.4 mm

    331.2 mm

    Display height

    91.4 mm

    207 mm

    Number of colors

    16 777 216

    16 777 216

    Resolution (pixels)

    • ● Horizontal image resolution

    800 pixel

    1 280 pixel

    • ● Vertical image resolution

    480 pixel

    800 pixel

    Backlighting

    • ● MTBF backlighting (at 25 °C)

    50 000 h

    50 000 h

    • ● Backlight dimmable

    Yes; LED, can be dimmed manually or automatically

    Yes; LED, can be dimmed manually or automatically

    Control elements

    Keyboard

    • ● Function keys

    • — Number of function keys

    0

    0

    • — Number of function keys with LEDs

    0

    0

    • ● Keys with LED

    No

    No

    • ● System keys

    No

    No

    • ● Numeric keyboard

    Yes; Onscreen keyboard

    Yes; Onscreen keyboard

    • ● alphanumeric keyboard

    Yes; Onscreen keyboard

    Yes; Onscreen keyboard

    Touch operation

    • ● Design as touch screen

    Yes; Analog-resistive

    Yes; Analog-resistive

    Expansions for operator control of the process

    • ● DP direct LEDs (LEDs as S7 output I/O)

    • — F1...Fx

    0

    0

    • ● Direct keys (keys as S7 input I/O)

    • — F1...Fx

    0

    0

    • ● Direct keys (touch buttons as S7 input I/O)

    32

    40

    Installation type/mounting

    Mounting position

    vertical

    vertical

    Mounting in portrait format possible

    Yes

    Yes

    Mounting in landscape format possible

    Yes

    Yes

    maximum permissible angle of inclination without external ventilation

    35°

    35°

    Supply voltage

    Type of supply voltage

    DC

    DC

    Rated value (DC)

    24 V

    24 V

    permissible range, lower limit (DC)

    19.2 V

    19.2 V

    permissible range, upper limit (DC)

    28.8 V

    28.8 V

    Input current

    Current consumption (rated value)

    0.7 A

    1.3 A

    Starting current inrush I²t

    0.5 A²·s

    0.5 A²·s

    Power

    Active power input, typ.

    17 W

    32 W

    Processor

    Processor type

    X86

    X86

    Storage

    Flash

    Yes

    Yes

    RAM

    Yes

    Yes

    Memory available for user data

    12 Mbyte

    12 Mbyte

    Type of output

    Info LED

    No

    No

    Power LED

    No

    No

    Error LED

    No

    No

    Acoustics

    • ● Buzzer

    No

    No

    • ● Speaker

    Yes

    Yes

    Time of day

    Clock

    • ● Hardware clock (real-time)

    Yes

    Yes

    • ● Software clock

    No

    No

    • ● retentive

    Yes; Back-up duration typically 6 weeks

    Yes; Back-up duration typically 6 weeks

    • ● synchronizable

    Yes

    Yes

    Interfaces

    Number of industrial Ethernet interfaces

    2

    2

    Number of RS 485 interfaces

    1; RS 422 / 485 combined

    1; RS 422 / 485 combined

    Number of RS 422 interfaces

    1

    1

    Number of RS 232 interfaces

    0

    0

    Number of USB interfaces

    2; USB 2.0

    2; USB 2.0

    • ● USB Mini B

    1; 5-pole

    1; 5-pole

    Number of 20 mA interfaces (TTY)

    0

    0

    Number of parallel interfaces

    0

    0

    Number of other interfaces

    0

    0

    Number of SD card slots

    2

    2

    With software interfaces

    No

    No

    Industrial Ethernet

    • ● Industrial Ethernet status LED

    2

    2

    • ● Number of ports of the integrated switch

    2

    2

    Protocols

    PROFINET

    Yes

    Yes

    Supports protocol for PROFINET IO

    Yes

    Yes

    IRT

    Yes; WinCC V13 SP1 HSP or higher

    Yes; WinCC V13 SP1 HSP or higher

    PROFIBUS

    Yes

    Yes

    EtherNet/IP

    Yes

    Yes

    MPI

    Yes

    Yes

    Protocols (Ethernet)

    • ● TCP/IP

    Yes

    Yes

    • ● DHCP

    Yes

    Yes

    • ● SNMP

    Yes

    Yes

    • ● DCP

    Yes

    Yes

    • ● LLDP

    Yes

    Yes

    WEB characteristics

    • ● HTTP

    Yes

    Yes

    • ● HTTPS

    No

    No

    • ● HTML

    Yes

    Yes

    • ● XML

    No

    No

    • ● CSS

    Yes

    Yes

    • ● Active X

    No

    No

    • ● JavaScript

    Yes

    Yes

    • ● Java VM

    No

    No

    Redundancy mode

    Media redundancy

    • — MRP

    Yes; WinCC V13 SP1 HSP or higher

    Yes; WinCC V13 SP1 HSP or higher

    Further protocols

    • ● CAN

    No

    No

    • ● MODBUS

    Yes

    Yes

    EMC

    Emission of radio interference acc. to EN 55 011

    • ● Limit class A, for use in industrial areas

    Yes

    Yes

    • ● Limit class B, for use in residential areas

    No

    No

    Degree and class of protection

    IP (at the front)

    IP66

    IP66

    IP (rear)

    IP20

    IP20

    NEMA (front)

    • ● Enclosure Type 4 at the front

    Yes

    Yes

    • ● Enclosure Type 4x at the front

    Yes

    Yes

    Standards, approvals, certificates

    CE mark

    Yes

    Yes

    cULus

    Yes

    Yes

    RCM (formerly C-TICK)

    Yes

    Yes

    KC approval

    Yes

    Yes

    Use in hazardous areas

    • ● ATEX Zone 2

    Yes; for inscription on device rating plate

    Yes; for inscription on device rating plate

    • ● ATEX Zone 22

    Yes; for inscription on device rating plate

    Yes; for inscription on device rating plate

    • ● IECEx Zone 2

    Yes; for inscription on device rating plate

    Yes; for inscription on device rating plate

    • ● IECEx Zone 22

    Yes; for inscription on device rating plate

    Yes; for inscription on device rating plate

    • ● cULus Class I Zone 1

    No

    No

    • ● cULus Class I Zone 2, Division 2

    Yes; for inscription on device rating plate

    Yes; for inscription on device rating plate

    • ● FM Class I Division 2

    Yes; for inscription on device rating plate

    Yes; for inscription on device rating plate

    Marine approval

    • ● Germanischer Lloyd (GL)

    Yes

    Yes

    • ● American Bureau of Shipping (ABS)

    Yes

    Yes

    • ● Bureau Veritas (BV)

    Yes

    Yes

    • ● Det Norske Veritas (DNV)

    Yes

    Yes

    • ● Korean Register of Shipping (KRS)

    Yes

    Yes

    • ● Lloyds Register of Shipping (LRS)

    Yes

    Yes

    • ● Nippon Kaiji Kyokai (Class NK)

    Yes

    Yes

    • ● Polski Rejestr Statkow (PRS)

    No

    No

    • ● Chinese Classification Society (CCS)

    Yes

    Yes

    • ● Compass working clearance

    5 m

    5 m

    Ambient conditions

    Suited for indoor use

    Yes

    Yes

    Suited for outdoor use

    Yes; Powder-coated, UV resistant

    Yes; Powder-coated, UV resistant

    Ambient temperature during operation

    Operation (vertical installation)

    • — For vertical installation, min.

    -30 °C

    -30 °C

    • — For vertical installation, max.

    60 °C; (55 °C, see entry ID: 64847814)

    60 °C; (55 °C, see entry ID: 64847814)

    Operation (max. tilt angle)

    • — At maximum tilt angle, min.

    -30 °C

    -30 °C

    • — At maximum tilt angle, max.

    50 °C

    50 °C

    Operation (vertical installation, portrait format)

    • — For vertical installation, min.

    -30 °C

    -30 °C

    • — For vertical installation, max.

    50 °C

    50 °C

    Operation (max. tilt angle, portrait format)

    • — At maximum tilt angle, min.

    -30 °C

    -30 °C

    • — At maximum tilt angle, max.

    45 °C

    45 °C

    Ambient temperature during storage/transportation

    • ● min.

    -30 °C

    -30 °C

    • ● max.

    70 °C

    70 °C

    Altitude during operation relating to sea level

    • ● Installation altitude above sea level, max.

    3 000 m; Depending on the operating temperature

    3 000 m; Depending on the operating temperature

    Relative humidity

    • ● Operation, max.

    90 %; no condensation

    90 %; no condensation

    Operating systems

    proprietary

    No

    No

    pre-installed operating system

    • ● Windows CE

    Yes

    Yes

    Configuration

    Message indicator

    Yes

    Yes

    Alarm system (incl. buffer and acknowledgment)

    Yes

    Yes

    Process value display (output)

    Yes

    Yes

    Process value default (input) possible

    Yes

    Yes

    Recipe management

    Yes

    Yes

    Configuration software

    • ● STEP 7 Basic (TIA Portal)

    No

    No

    • ● STEP 7 Professional (TIA Portal)

    No

    No

    • ● WinCC flexible Compact

    No

    No

    • ● WinCC flexible Standard

    No

    No

    • ● WinCC flexible Advanced

    No

    No

    • ● WinCC Basic (TIA Portal)

    No

    No

    • ● WinCC Comfort (TIA Portal)

    Yes; WinCC V13 SP1 Update 7 + HSP or higher

    Yes; WinCC V13 SP1 Update 7 + HSP or higher

    • ● WinCC Advanced (TIA Portal)

    Yes; WinCC V13 SP1 Update 7 + HSP or higher

    Yes; WinCC V13 SP1 Update 7 + HSP or higher

    • ● WinCC Professional (TIA Portal)

    Yes; WinCC V13 SP1 Update 7 + HSP or higher

    Yes; WinCC V13 SP1 Update 7 + HSP or higher

    Languages

    Online languages

    • ● Number of online/runtime languages

    32

    32

    Project languages

    • ● Languages per project

    32

    32

    Functionality under WinCC (TIA Portal)

    Libraries

    Yes

    Yes

    Applications/options

    • ● Web browser

    Yes

    Yes

    • ● Pocket Word

    Yes

    Yes

    • ● Pocket Excel

    Yes

    Yes

    • ● PDF Viewer

    Yes

    Yes

    • ● Media Player

    Yes

    Yes

    • ● SIMATIC WinCC Sm@rtServer

    Yes

    Yes

    • ● SIMATIC WinCC Audit

    Yes

    Yes

    Number of Visual Basic Scripts

    Yes

    Yes

    Task planner

    • ● time-controlled

    Yes

    Yes

    • ● task-controlled

    Yes

    Yes

    Help system

    • ● Number of characters per info text

    70

    70

    Message system

    • ● Number of alarm classes

    32

    32

    • ● Bit messages

    • — Number of bit messages

    4 000

    4 000

    • ● Analog messages

    • — Number of analog messages

    200

    200

    • ● S7 alarm number procedure

    Yes

    Yes

    • ● System messages HMI

    Yes

    Yes

    • ● System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )

    Yes

    Yes

    • ● Number of characters per message

    80

    80

    • ● Number of process values per message

    8

    8

    • ● Acknowledgment groups

    Yes

    Yes

    • ● Message indicator

    Yes

    Yes

    • ● Message buffer

    • — Number of entries

    1 024

    1 024

    • — Circulating buffer

    Yes

    Yes

    • — retentive

    Yes

    Yes

    • — maintenance-free

    Yes

    Yes

    Recipe management

    • ● Number of recipes

    300

    300

    • ● Data records per recipe

    500

    500

    • ● Entries per data record

    1 000

    1 000

    • ● Size of internal recipe memory

    2 Mbyte

    2 Mbyte

    • ● Recipe memory expandable

    Yes

    Yes

    Variables

    • ● Number of variables per device

    2 048

    2 048

    • ● Number of variables per screen

    400

    400

    • ● Limit values

    Yes

    Yes

    • ● Multiplexing

    Yes

    Yes

    • ● Structures

    Yes

    Yes

    • ● Arrays

    Yes

    Yes

    Images

    • ● Number of configurable images

    500

    500

    • ● Permanent window/default

    Yes

    Yes

    • ● Global image

    Yes

    Yes

    • ● Image selection by PLC

    Yes

    Yes

    • ● Image number in the PLC

    Yes

    Yes

    Image objects

    • ● Number of objects per image

    400

    400

    • ● Text fields

    Yes

    Yes

    • ● I/O fields

    Yes

    Yes

    • ● Graphic I/O fields (graphics list)

    Yes

    Yes

    • ● Symbolic I/O fields (text list)

    Yes

    Yes

    • ● Date/time fields

    Yes

    Yes

    • ● Switches

    Yes

    Yes

    • ● Buttons

    Yes

    Yes

    • ● Graphic display

    Yes

    Yes

    • ● Icons

    Yes

    Yes

    • ● Geometric objects

    Yes

    Yes

    Complex image objects

    • ● Number of complex objects per screen

    20

    20

    • ● Alarm view

    Yes

    Yes

    • ● Trend view

    Yes

    Yes

    • ● User view

    Yes

    Yes

    • ● Status/control

    Yes

    Yes

    • ● Sm@rtClient view

    Yes

    Yes

    • ● Recipe view

    Yes

    Yes

    • ● f(x) trend view

    Yes

    Yes

    • ● System diagnostics view

    Yes

    Yes

    • ● Media Player

    Yes

    Yes

    • ● HTML browser

    Yes

    • ● PDF display

    Yes

    • ● IP camera display

    Yes; Webcam type see FAQs

    Yes; Webcam type see FAQs

    • ● Bar graphs

    Yes

    Yes

    • ● Sliders

    Yes

    Yes

    • ● Pointer instruments

    Yes

    Yes

    • ● Analog/digital clock

    Yes

    Yes

    Lists

    • ● Number of text lists per project

    500

    500

    • ● Number of entries per text list

    500

    500

    • ● Number of graphics lists per project

    500

    500

    • ● Number of entries per graphics list

    500

    500

    Archiving

    • ● Number of archives per device

    50

    50

    • ● Number of entries per archive

    20 000

    20 000

    • ● Message archive

    Yes

    Yes

    • ● Process value archive

    Yes

    Yes

    • ● Archiving methods

    • — Sequential archive

    Yes

    Yes

    • — Short-term archive

    Yes

    Yes

    • ● Memory location

    • — Memory card

    Yes

    Yes

    • — USB memory

    Yes

    Yes

    • — Ethernet

    Yes

    Yes

    • ● Data storage format

    • — CSV

    Yes

    Yes

    • — TXT

    Yes

    Yes

    • — RDB

    Yes

    Yes

    Security

    • ● Number of user groups

    50

    50

    • ● Number of user rights

    32

    32

    • ● Number of users

    50

    50

    • ● Password export/import

    Yes

    Yes

    • ● SIMATIC Logon

    Yes

    Yes

    Logging through printer

    • ● Alarms

    Yes

    Yes

    • ● Report (shift log)

    Yes

    Yes

    • ● Hardcopy

    Yes

    Yes

    • ● Electronic print to file

    Yes; PDF, HTML

    Yes; PDF, HTML

    Character sets

    • ● Keyboard fonts

    • — US English

    Yes

    Yes

    Transfer (upload/download)

    • ● MPI/PROFIBUS DP

    Yes

    Yes

    • ● USB

    Yes

    Yes

    • ● Ethernet

    Yes

    Yes

    • ● using external storage medium

    Yes; Backup/restore

    Yes; Backup/restore

    Process coupling

    • ● S7-1200

    Yes

    Yes

    • ● S7-1500

    Yes

    Yes

    • ● S7-200

    Yes

    Yes

    • ● S7-300/400

    Yes

    Yes

    • ● LOGO!

    Yes

    Yes

    • ● WinAC

    Yes

    Yes

    • ● SINUMERIK

    Yes; with SINUMERIK option package

    Yes; with SINUMERIK option package

    • ● SIMOTION

    Yes

    Yes

    • ● Allen Bradley (EtherNet/IP)

    Yes

    Yes

    • ● Allen Bradley (DF1)

    Yes

    Yes

    • ● Mitsubishi (MC TCP/IP)

    Yes

    Yes

    • ● Mitsubishi (FX)

    Yes

    Yes

    • ● OMRON (FINS TCP)

    No

    No

    • ● OMRON (Host Link)

    Yes

    Yes

    • ● Modicon (Modbus TCP/IP)

    Yes

    Yes

    • ● Modicon (Modbus RTU)

    Yes

    Yes

    • ● OPC UA Client

    Yes

    Yes

    • ● OPC UA Server

    Yes

    Yes

    Service tools/configuration aids

    • ● Backup/Restore manually

    Yes

    Yes

    • ● Backup/Restore automatically

    Yes

    Yes

    • ● Simulation

    Yes

    Yes

    • ● Device switchover

    Yes

    Yes

    Peripherals/Options

    Printer

    Yes

    Yes

    SIMATIC HMI MM memory card: Multi Media Card

    Yes

    Yes

    SIMATIC HMI SD memory card: Secure Digital memory card

    Yes

    Yes

    SIMATIC HMI CF memory card Compact Flash Card

    No

    No

    USB memory

    Yes; e.g. USB RFID reader, see FAQ entry ID: 99808171

    Yes; e.g. USB RFID reader, see FAQ entry ID: 99808171

    SIMATIC IPC USB Flashdrive (USB stick)

    Yes

    Yes

    SIMATIC HMI USB stick

    Yes

    Yes

    Network camera

    Yes; See FAQ Entry ID: 62383298 and entry ID: 65647473

    Yes; See FAQ Entry ID: 62383298 and entry ID: 65647473

    Accessories

    extension module

    Optional e.g. USB RFID reader, see FAQ entry ID: 99808171

    Optional e.g. USB RFID reader, see FAQ entry ID: 99808171

    Further accessories are available

    Yes; Mounting clips and 2-pin power supply connector

    Yes; Mounting clips and 2-pin power supply connector

    Mechanics/material

    Enclosure material (front)

    • ● Plastic

    No

    No

    • ● Aluminum

    Yes; Powder-coated, UV resistant

    Yes; Powder-coated, UV resistant

    • ● Stainless steel

    No

    No

    Dimensions

    Width of the housing front

    214 mm

    415 mm

    Height of housing front

    158 mm

    310 mm

    Mounting cutout, width

    198 mm

    396 mm

    Mounting cutout, height

    142 mm

    291 mm

    mounting depth

    64.6 mm

    73.2 mm

    Weights

    Weight (without packaging)

    1.5 kg

    4 kg

    Weight (with packaging)

    1.7 kg

    6.2 kg

    Other

    Note:

    Power, quantity structure and performance correspond to a standard 7" Comfort Panel

    Power, quantity structure and performance correspond to a standard 12" Comfort Panel

    Дальнейшая информация

    More information is available on the internet at this link

    Note:

    The TP700 Comfort Panel Outdoor is comparable with the TP700 Comfort Panel Standard.

    The TP1500 Comfort Panel Outdoor is comparable with the TP1200 Comfort Panel Standard with a 15" display.

    A TP1500 Comfort Standard unit with the maximum possible configuration cannot be installed on a TP1500 Comfort Panel Outdoor.

    Ответственный редактор / Инженер

    Директор «Би Энд Би Инжиниринг»
    «Описание оборудования на этой странице составлено на основе нашего 10-летнего опыта работы в сфере пневматического оборудования, запорной арматуры и промышленной автоматизации. Если у вас есть вопросы или комментарии — напишите мне лично».
