CP 1542SP-1

Обзор

The CP 1542SP-1 communications processor connects the ET 200SP Distributed Controller with Industrial Ethernet networks.

The module can also be used for integrating the ET 200SP Distributed Controller into an IPv6-based network. All functions are configured using STEP 7 Professional V14 (TIA Portal) or higher.

The CP 1542SP-1 supports the following communication services:

• PG/OP communication
• S7 communication
• Open communication (Open User Communication)
• IT communication
  • Sending emails via SMTP for authentication on an email server (also with IPv6)
  • SNMPv1 for transfer of network analysis information
• Integration of the ET 200SP Distributed Controller into IPv6-based networks


Особенности

• Network separation for setting up identical machines with the same IP addresses
• Optimum maintenance support thanks to
  • Simple diagnostics via the central web server
  • Monitoring with IT network management tools (SNMP)
  • Module replacement without a PG
• Securing the system against unauthorized access with
  • Central access protection for any S7 station
  • Access to the central web server
• Simple alerting by email
• Protection of investment thanks to simple integration of the ET 200SP Distributed Controller in existing networks with SIMATIC S7-300/S7-400/via Industrial Ethernet using the CP 1542SP-1
• Accessibility of the ET 200SP Distributed Controller from an IPv6-based infrastructure

Область применения

The CP 1542SP-1 is used for connecting the ET 200SP Distributed Controller to Industrial Ethernet networks. With its own processor, it relieves the CPU of communication tasks.

The CP 1542SP-1 offers possible communication with:

• PGs/PCs,
• master computers
• operator control and monitoring systems,
• SIMATIC S7 systems

The CP 1542SP-1 is used in the ET 200SP system to operate lower-level networks separately, or to implement a separation from the higher-level network.

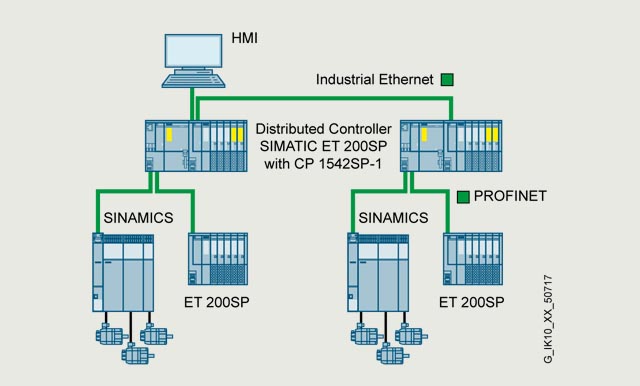

Application: automation network and lower-level networks are to be operated separately

Дизайн

The CP 1542SP-1 has all the advantages of the ET 200SP design:

• Compact, space-saving design:
  • Module powered via separate power supply
  • Three LEDs for displaying the operating state and communication state of the module as well as LEDs on the bus adapter.
  • Can be operated simultaneously with BA Send module and CM DP module.
• Simple installation:
  The CP 1542SP-1 is mounted on the ET 200SP DIN rail and is connected to the adjacent modules via the backplane bus.
  • The BusAdapter (not included in scope of delivery) makes various connection methods possible;
  • For standard environmental conditions, BA 2xRJ45 for connection via RJ45 connector
  • For mechanical loading during operation and/or increased EMC requirements
    BA 2xFC, BA 2xSCRJ, BA SCRJ/RJ45, BA SCRJ/FC
  • The CP 1542SP-1 can be operated without a fan; no backup battery is required.
  • The module can be replaced without the need for a programming device.
• The CP can be equipped with an equipment labeling plate.
• Optional labeling using light gray or yellow labeling strips. There is a choice of 2 materials:
  • Film and roll with 500 strips, for thermal transfer roll printer
  • Paper (280 g/m2), DIN A4 sheets with 100 strips each, for laser printer

Scope of delivery:
CP 1542SP-1, 24 V DC connector (BusAdapter must be ordered separately)

Функции

• 2-port interface via BusAdapter with an RJ45 connection with 10/100 Mbps full/half duplex with autosensing functionality
• The CP 1542SP-1 communications processor connects the SIMATIC ET 200SP Distributed Controller to additional Industrial Ethernet networks

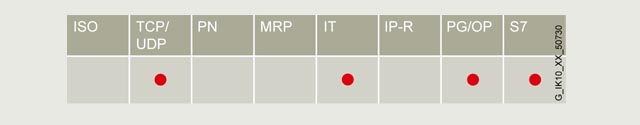

• Communications services:
  • Open communication (TCP/IP, UDP, ISO-on-TCP):
    Multicast with UDP
  • PG/OP communication: Inter-network with S7 routing
  • S7 communication (client, server)
  • S7 routing
  • IT communication:
    HTTP communication allows access to the web server of the CPU.
  • The email client function enables sending of emails direct from the user program.
    IP address assignment via DHCP for IPv4 or via direct entry in the engineering software and via the T_CONFIG function block
    STEP 7 Professional V14 (TIA Portal) or higher
• Diagnostics and network management:
  • Extensive diagnostic functions of all modules in the ET 200SP system
  • Integration in network management systems through the support of SNMP V1
• Configuration of all functions with STEP 7 Professional V14 (TIA Portal) or higher
• Module replacement without programming device: All information can be stored on the memory card of the CPU.

Технические данные

Дальнейшая информация

You will find more information on ET 200SP at

www.siemens.com/simatic-et200sp

The TIA Selection Tool is available to assist you in selecting ET 200SP equipment and configuring modular variants:

www.siemens.com/tst

You will find more information on the topic of Industrial Security on the Internet at:

An ET 200SP Distributed Controller firmware version ≥ 2.0 is required for operation of the CP 1542SP-1.
