MDS D424

product brand name

SIMATIC RF

Technical Product Detail Page

radio frequencies

operating frequency rated value

13.56 MHz

range maximum

300 mm; range is reader dependent: observe

protocol with radio transmission

ISO 15693

transfer rate with radio transmission maximum

26.5 kbit/s

product feature multitag-capable

Yes

electrical data

product component backup battery

No

memory

type of memory

FRAM

storage capacity of the user memory

2 000 byte

type of memory organization

UID (fixed code) 8 bytes, user memory 2000 bytes, configuration memory 40 bytes

number of read cycles at ambient temperature < 40 °C maximum

1 000 000 000 000

number of write cycles at ambient temperature < 40 °C maximum

1 000 000 000 000

data retention time at ambient temperature < 40 °C not less than

10 a

property of memory

Block-by-block write protection of the user memory

type of transponder chip used

Fujitsu MB89R118

mechanical data

material

Epoxy resin

color

black

tightening torque of the screw for securing the equipment maximum

1 N·m

mounting distance relating to metal surfaces recommended minimum

15 mm

ambient conditions

ambient temperature

• ● during read/write access

-25 ... +85 °C

• ● outside the read/write area

-40 ... +100 °C

• ● during storage

-40 ... +100 °C

protection class IP

IP67/IPx9K

shock resistance

According to DIN EN 60721-3-7 Class 7 M3

shock acceleration

1 000 m/s²

vibrational acceleration

200 m/s²

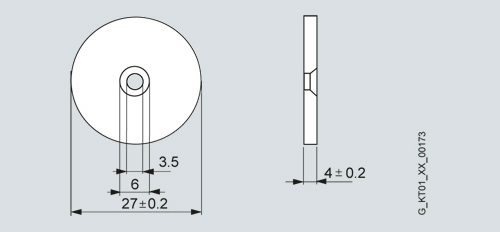

design, dimensions and weights

height

4 mm

diameter

27 mm

net weight

5 g

fastening method

M3 screw, gluing

product features, product functions, product components general

product feature

• ● silicon-free

Yes

• ● printable

No

standards, specifications, approvals

certificate of suitability

• ● IECEx

No

MTBF

171 a

standards, specifications, approvals Environmental Product Declaration

Environmental Product Declaration

Yes

global warming potential [CO2 eq]

• ● total

0.93 kg

• ● during manufacturing

0.88 kg

• ● during operation

0.00041 kg

• ● after end of life

0.05 kg

accessories

accessories

Mounting support and spacer
