Mobile network antennas

product brand name

SCALANCE

SCALANCE

Technical Product Detail Page

suitability for operation

antenna for 5G/4G/3G/2G networks

antenna for 5G/4G/3G/2G networks

antenna for 5G/4G/3G/2G networks & IWLAN

antenna for 5G/4G/3G/2G networks

antenna for 5G/4G/3G/2G networks

antenna for 5G/4G/3G/2G networks & IWLAN

radio frequencies

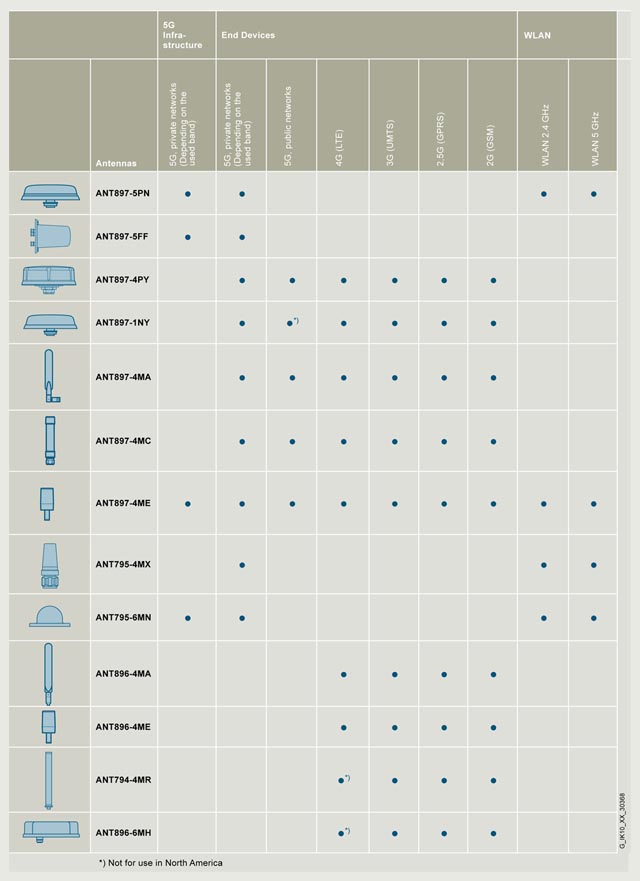

type of wireless network / is supported

5G public networks, 5G private networks, LTE, UMTS, GSM

5G public networks, 5G private networks, LTE, UMTS, GSM

5G public networks, 5G private networks, LTE, UMTS, GSM, WLAN

5G public networks, 5G private networks, LTE, UMTS, GSM

5G public networks, 5G private networks, LTE, UMTS, GSM

5G private networks, WLAN

5G private networks, WLAN

5G private networks, WLAN

operating frequency / 1

617 ... 960 MHz

617 ... 960 MHz

617 ... 698 MHz

617 ... 960 MHz

700 ... 960 MHz

2300 ... 2700 MHz

1700 ... 2000 MHz

2400 ... 2700 MHz

operating frequency / 2

1452 ... 1576 MHz

1452 ... 1496 MHz

698 ... 960 MHz

1452 ... 2700 MHz

1700 ... 4200 MHz

3400 ... 4200 MHz

2000 ... 2700 MHz

3400 ... 3800 MHz

operating frequency / 3

1710 ... 2690 MHz

1710 ... 2690 MHz

1427 ... 2700 MHz

3300 ... 5925 MHz

4900 ... 7200 MHz

2700 ... 3800 MHz

4900 ... 5925 MHz

operating frequency / 4

3300 ... 4200 MHz

3300 ... 5000 MHz

3300 ... 7125 MHz

4900 ... 5925 MHz

5925 ... 7125 MHz

operating frequency / 5

4400 ... 5000 MHz

5925 ... 7125 MHz

operating frequency

• ● for WLAN in 2.4 GHz frequency band

2.4 ... 2.7 GHz

2.4 ... 2.7 GHz

• ● for WLAN in 5 GHz frequency band 1

4.9 ... 5.92 GHz

4.9 ... 5.92 GHz

electrical data

antenna gain compared to spherical radiator

• ● with linear radiation

typical maximum gain

typical max. gain, measured on supplied holder

typical maximum gain measured on metallic floor area Ø 0.35 m with cable length 0.3 m

measured in open space with 0.5 m cable

typical maximum gain measured in open space

• ● with linear radiation / in operating frequency area 1 / typical

1 dB

2 dB

1 dB

1 dB

0 dB

3 dB

1.5 dB

6 dB

• ● with linear radiation / in operating frequency area 2 / typical

2 dB

2 dB

2 dB

4 dB

2 dB

5 dB

2 dB

6 dB

• ● with linear radiation / in operating frequency area 3 / typical

2 dB

2 dB

2 dB

4 dB

6 dB

1.5 dB

8 dB

• ● with linear radiation / in operating frequency area 4 / typical

2 dB

3 dB

7 dB

2 dB

8 dB

• ● with linear radiation / in operating frequency area 5 / typical

2 dB

2.5 dB

• ● with linear radiation / in operating frequency area 6 / typical

3 dB

impedance

50 Ω

50 Ω

50 Ω

50 Ω

50 Ω

50 Ω

50 Ω

50 Ω

polarization

Linear Vertical

Linear Vertical

Linear Vertical

Linear Vertical

Linear

Linear Vertical

Linear Vertical

Linear Vertical

radiation characteristic

omnidirectional

omnidirectional

omnidirectional

omnidirectional

omnidirectional

omnidirectional

omnidirectional

omnidirectional

standing wave ratio (VSWR) / maximum

3.5

3.5

3

2.5

3

2

2

2

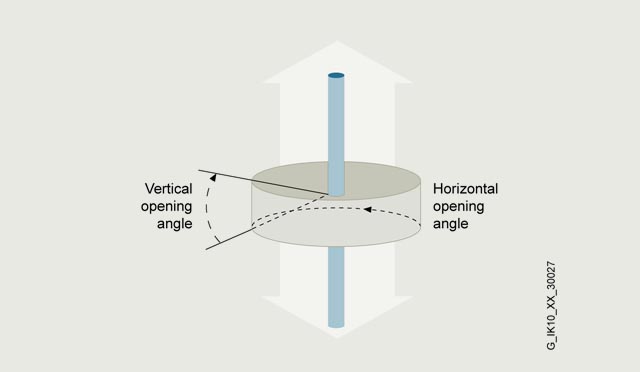

radiating angle of the antenna

take the antenna diagram into account regarding the horizontal beam angle

• ● horizontal

360°

360°

• ● in the 2.4 GHz frequency band / horizontal

360°

• ● in the 5 GHz frequency band / horizontal

360°

150°

number of electrical connections / of the antenna

1

1

1

4

2

4

1

1

type of electrical connection / of the antenna

N-Connector

N-Connector

N-Connector

SMA Connector

SMA Connector

N-Connector

N-Connector

N-Connector

design of plug-in connection

male, variable 0-90°

male, straight

female

male

male

female

male, straight

female

angle of inclination / downward / maximum

0°

0°

mechanical data

material

• ● of the enclosure

Aluminum, chromate-free conversion layer

• ● of outer shell

PC

Glass fiber

ASA

PC+ABS

Lexan EXL 9330

Lexan EXL 9330

ASA

Polycarbonate

color

black

black

black

black

black

white

color / of cable sheath

Black

light gray

ambient conditions

ambient temperature

• ● during operation

-20 ... +65 °C

-30 ... +70 °C

-40 ... +80 °C

-30 ... +70 °C

-30 ... +70 °C

-30 ... +70 °C

-40 ... +85 °C

-40 ... +80 °C

• ● during storage

-30 ... +70 °C

-40 ... +85 °C

-40 ... +80 °C

-40 ... +85 °C

-40 ... +80 °C

-40 ... +85 °C

-40 ... +85 °C

-40 ... +80 °C

• ● during transport

-40 ... +85 °C

-40 ... +85 °C

-40 ... +80 °C

relative humidity / at 25 °C / without condensation / during operation / maximum

95 %

protection class IP

IP65

IP65/67

IP65

IP65/67

IP69K; with correct installation

IP69K; with correct installation

IP68/IP69K

IP65; with correct installation

wind load / maximum

10 N; at 160 km/h

product feature / resistant to UV radiation

Yes

shock resistance

according to EN61373, category1, class b (for railway carriage)

design, dimensions and weights

width

35 mm

86 mm

height

160 mm

132 mm

82 mm

53 mm

30 mm

30 mm

55 mm

43 mm

depth

13 mm

86 mm

diameter

24 mm

48 mm

153 mm

115 mm

115 mm

22 mm

net weight

27 g

96 g

212 g

1290 g

330 g

50 g

300 g

fastening method

from outside in 32 mm drill hole, one stainless steel nut

from outside in 19 mm drill hole, one stainless steel nut

from outside in 24 mm drill hole, one stainless steel nut

fastening method

• ● mast mounting

No

No

Yes

No

No

No

No

• ● flat roof mounting

No

No

Yes

Yes

Yes

Yes

Yes

• ● wall mounting

No

No

Yes

No

No

No

No

Yes

• ● roof mounting

No

No

No

Yes

Yes

Yes

No

Yes

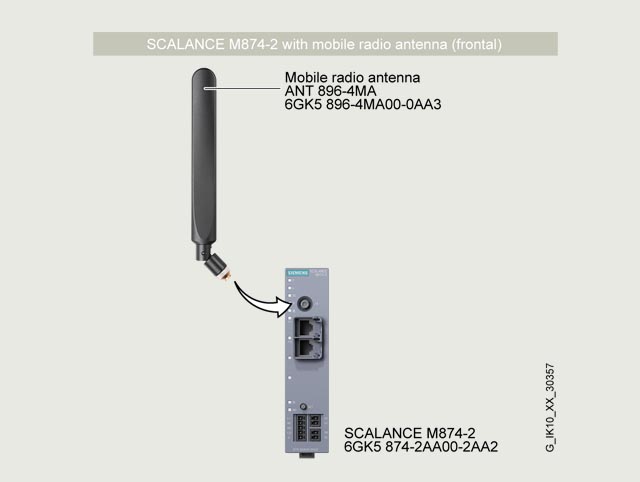

• ● directly on the device

Yes

Yes

No

No

No

No

Yes

No

cable designation

J195

RG174

CS32

wire length / of antenna cable

2 m

3 m

wire length / of antenna cable / graded

0.2 ... 0.275 m

product features, product functions, product components / general

product feature / silicon-free

Yes

Yes

Yes

No

Yes

Yes

Yes

Yes

standards, specifications, approvals

certificate of suitability

Railway application in accordance with NF-F-16-101, NF-F-16-102

certificate of suitability

• ● RoHS conformity

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

• ● railway application in accordance with EN 50155

Yes

Yes

• ● fire protection in accordance with EN 45545-2

Yes

Yes

Marine classification association / Korean Register of Shipping (KRS)

Yes

product conformity

UL 94-HB

UL 94-V0

wireless approval

Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen

Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen

Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen

Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen

Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen

Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen

Current national approvals can be found on the Internet under www.siemens.com/funkzulassungen

Current national approvals can be found on the Internet under www.siemens.com/funkzulassungen
