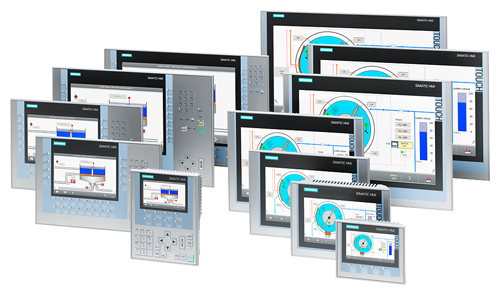

Панели операторов SIPLUS Comfort Panels

General information

Product type designation

TP1500 Comfort

TP1900 Comfort

TP2200 Comfort

based on

6AV2124-0QC02-0AX1

6AV2124-0UC02-0AX1

6AV2124-0XC02-0AX1

Display

Design of display

TFT

TFT

TFT

Screen diagonal

15.4 in

18.5 in

21.5 in

Display width

331.2 mm

409.8 mm

475.2 mm

Display height

207 mm

230.4 mm

267.3 mm

Number of colors

16 777 216

16 777 216

16 777 216

Resolution (pixels)

• ● Horizontal image resolution

1 280 pixel

1 366 pixel

1 920 pixel

• ● Vertical image resolution

800 pixel

768 pixel

1 080 pixel

Backlighting

• ● MTBF backlighting (at 25 °C)

80 000 h

50 000 h

30 000 h

• ● Backlight dimmable

Yes; 0-100 %

Yes; 0-100 %

Yes; 0-100 %

Control elements

Keyboard

• ● Function keys

• — Number of function keys

0

0

0

• — Number of function keys with LEDs

0

0

0

• ● Keys with LED

No

No

No

• ● System keys

No

No

No

• ● Numeric keyboard

Yes; Onscreen keyboard

Yes; Onscreen keyboard

Yes; Onscreen keyboard

• ● alphanumeric keyboard

Yes; Onscreen keyboard

Yes; Onscreen keyboard

Yes; Onscreen keyboard

Touch operation

• ● Design as touch screen

Yes; Analog-resistive

Yes; Analog-resistive

Yes; Analog-resistive

Expansions for operator control of the process

• ● Direct keys (touch buttons as S7 input I/O)

40

40

40

Installation type/mounting

Mounting position

vertical

vertical

vertical

Mounting in portrait format possible

Yes

Yes

Yes

Mounting in landscape format possible

Yes

Yes

Yes

maximum permissible angle of inclination without external ventilation

35°

35°

35°

Supply voltage

Type of supply voltage

DC

DC

DC

Rated value (DC)

24 V

24 V

24 V

permissible range, lower limit (DC)

19.2 V

19.2 V

19.2 V

permissible range, upper limit (DC)

28.8 V

28.8 V

28.8 V

Input current

Current consumption (rated value)

1.7 A

1.7 A

1.7 A

Starting current inrush I²t

0.5 A²·s

0.5 A²·s

0.5 A²·s

Power

Active power input, typ.

41 W

41 W

41 W

Processor

Processor type

X86

X86

X86

Storage

Flash

Yes

Yes

Yes

RAM

Yes

Yes

Yes

Memory available for user data

24 Mbyte

24 Mbyte

24 Mbyte

Type of output

Info LED

No

No

No

Power LED

No

No

No

Error LED

No

No

No

Acoustics

• ● Buzzer

No

No

No

• ● Speaker

Yes

Yes

Yes

Time of day

Clock

• ● Hardware clock (real-time)

Yes

Yes

Yes

• ● Software clock

Yes

Yes

Yes

• ● retentive

Yes; Back-up duration typically 6 weeks

Yes; Back-up duration typically 6 weeks

Yes; Back-up duration typically 6 weeks

• ● synchronizable

Yes

Yes

Yes

Interfaces

Number of industrial Ethernet interfaces

2; 2 ports (switch) + independent port

2; 2 ports (switch) + independent port

2; 2 ports (switch) + independent port

Number of RS 485 interfaces

1; RS 422 / 485 combined

1; RS 422 / 485 combined

1; RS 422 / 485 combined

Number of RS 422 interfaces

0; together with RS 485

0; together with RS 485

0; together with RS 485

Number of RS 232 interfaces

0

0

0

Number of USB interfaces

2; USB 2.0

2; USB 2.0

2; USB 2.0

Number of 20 mA interfaces (TTY)

0

0

0

Number of parallel interfaces

0

0

0

Number of other interfaces

0

0

0

Number of SD card slots

2

2

2

With software interfaces

No

No

No

Industrial Ethernet

• ● Industrial Ethernet status LED

3

3

3

• ● Number of ports of the integrated switch

2

2

2

Protocols

PROFINET

Yes

Yes

Yes

Supports protocol for PROFINET IO

Yes

Yes

Yes

IRT

Yes

Yes

Yes

PROFIBUS

Yes

Yes

Yes

EtherNet/IP

Yes

Yes

Yes

MPI

Yes

Yes

Yes

Protocols (Ethernet)

• ● TCP/IP

Yes

Yes

Yes

• ● DHCP

Yes

Yes

Yes

• ● SNMP

Yes

Yes

Yes

• ● DCP

Yes

Yes

Yes

• ● LLDP

Yes

Yes

Yes

WEB characteristics

• ● HTTP

Yes

Yes

Yes

• ● HTTPS

Yes

Yes

Yes

• ● HTML

Yes

Yes

Yes

• ● XML

Yes

Yes

Yes

• ● CSS

Yes

Yes

Yes

• ● Active X

Yes

Yes

Yes

• ● JavaScript

Yes

Yes

Yes

• ● Java VM

No

No

No

Redundancy mode

Media redundancy

• — MRP

Yes

Yes

Yes

Further protocols

• ● CAN

No

No

No

• ● MODBUS

Yes

Yes

Yes

Interrupts/diagnostics/status information

Diagnoses

• ● Diagnostic information readable

Yes; S7 controller

Yes; S7 controller

Yes; S7 controller

EMC

Emission of radio interference acc. to EN 55 011

• ● Limit class A, for use in industrial areas

Yes

Yes

Yes

• ● Limit class B, for use in residential areas

No

No

No

Degree and class of protection

IP (at the front)

IP65

IP65

IP65

IP (rear)

IP20

IP20

IP20

NEMA (front)

• ● Enclosure Type 4 at the front

Yes

Yes

Yes

• ● Enclosure Type 4x at the front

Yes

Yes

Yes

Ambient conditions

Suited for indoor use

Yes

Yes

Yes

Suited for outdoor use

No

No

No

Ambient temperature during operation

Operation (vertical installation)

• — For vertical installation, min.

0 °C

0 °C; = Tmin

0 °C; = Tmin

• — For vertical installation, max.

50 °C; (55 °C, see entry ID: 64847814)

45 °C; = Tmax

45 °C; = Tmax

Operation (max. tilt angle)

• — At maximum tilt angle, min.

0 °C

0 °C; = Tmin

0 °C; = Tmin

• — At maximum tilt angle, max.

40 °C

40 °C; = Tmax

40 °C; = Tmax

Operation (vertical installation, portrait format)

• — For vertical installation, min.

0 °C

0 °C; = Tmin

0 °C; = Tmin

• — For vertical installation, max.

40 °C

40 °C; = Tmax

40 °C; = Tmax

Operation (max. tilt angle, portrait format)

• — At maximum tilt angle, min.

0 °C

0 °C; = Tmin

0 °C; = Tmin

• — At maximum tilt angle, max.

40 °C

35 °C; = Tmax

35 °C; = Tmax

Ambient temperature during storage/transportation

• ● min.

-20 °C

-20 °C

-20 °C

• ● max.

60 °C

60 °C

60 °C

Altitude during operation relating to sea level

• ● Installation altitude above sea level, max.

5 000 m

5 000 m

5 000 m

• ● Ambient air temperature-barometric pressure-altitude

Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Tmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax - 20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Relative humidity

• ● With condensation, tested in accordance with IEC 60068-2-38, max.

100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

Resistance

Coolants and lubricants

• — Resistant to commercially available coolants and lubricants

Yes; Incl. diesel and oil droplets in the air

Yes; Incl. diesel and oil droplets in the air

Yes; Incl. diesel and oil droplets in the air

Use in stationary industrial systems

• — to biologically active substances according to EN 60721-3-3

Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

• — to chemically active substances according to EN 60721-3-3

Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

• — to mechanically active substances according to EN 60721-3-3

Yes; Class 3S4 incl. sand, dust, *

Yes; Class 3S4 incl. sand, dust, *

Yes; Class 3S4 incl. sand, dust, *

Use on ships/at sea

• — to biologically active substances according to EN 60721-3-6

Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

• — to chemically active substances according to EN 60721-3-6

Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

• — to mechanically active substances according to EN 60721-3-6

Yes; Class 6S3 incl. sand, dust; *

Yes; Class 6S3 incl. sand, dust; *

Yes; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

• — Against chemically active substances acc. to EN 60654-4

Yes; Class 3 (excluding trichlorethylene)

Yes; Class 3 (excluding trichlorethylene)

Yes; Class 3 (excluding trichlorethylene)

• — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04

Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

• — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04

* The supplied plug covers must remain in place over the unused interfaces during operation!

* The supplied plug covers must remain in place over the unused interfaces during operation!

* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

• ● Coatings for printed circuit board assemblies acc. to EN 61086

Yes; Class 2 for high reliability

Yes; Class 2 for high reliability

Yes; Class 2 for high reliability

• ● Protection against fouling acc. to EN 60664-3

Yes; Type 1 protection

Yes; Type 1 protection

Yes; Type 1 protection

• ● Military testing according to MIL-I-46058C, Amendment 7

Yes; Discoloration of coating possible during service life

Yes; Discoloration of coating possible during service life

Yes; Discoloration of coating possible during service life

• ● Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A

Yes; Conformal coating, Class A

Yes; Conformal coating, Class A

Yes; Conformal coating, Class A

Operating systems

proprietary

No

No

No

pre-installed operating system

• ● Windows CE

Yes; Windows Embedded Compact 2013

Yes; Windows Embedded Compact 2013

Yes; Windows Embedded Compact 2013

Configuration

Message indicator

Yes

Yes

Yes

Alarm system (incl. buffer and acknowledgment)

Yes

Yes

Yes

Process value display (output)

Yes

Yes

Yes

Process value default (input) possible

Yes

Yes

Yes

Recipe management

Yes

Yes

Yes

Configuration software

• ● STEP 7 Basic (TIA Portal)

No

No

No

• ● STEP 7 Professional (TIA Portal)

No

No

No

• ● WinCC flexible Compact

No

No

No

• ● WinCC flexible Standard

No

No

No

• ● WinCC flexible Advanced

No

No

No

• ● WinCC Basic (TIA Portal)

No

No

No

• ● WinCC Comfort (TIA Portal)

Yes; V14 SP1 HSP and higher

Yes; V14 SP1 HSP and higher

Yes; V14 SP1 HSP and higher

• ● WinCC Advanced (TIA Portal)

Yes; V14 SP1 HSP and higher

Yes; V14 SP1 HSP and higher

Yes; V14 SP1 HSP and higher

• ● WinCC Professional (TIA Portal)

Yes; V14 SP1 HSP and higher

Yes; V14 SP1 HSP and higher

Yes; V14 SP1 HSP and higher

Languages

Online languages

• ● Number of online/runtime languages

32

32

32

Project languages

• ● Languages per project

32

32

32

Functionality under WinCC (TIA Portal)

Libraries

Yes

Yes

Yes

Applications/options

• ● Web browser

Yes

Yes

Yes

• ● Pocket Word

Yes

Yes

Yes

• ● Pocket Excel

Yes

Yes

Yes

• ● PDF Viewer

Yes

Yes

Yes

• ● Media Player

Yes

Yes

Yes

• ● SIMATIC WinCC Sm@rtServer

Yes

Yes

Yes

• ● SIMATIC WinCC Audit

Yes

Yes

Yes

Number of Visual Basic Scripts

Yes

Yes

Yes

Task planner

• ● time-controlled

Yes

Yes

Yes

• ● task-controlled

Yes

Yes

Yes

Help system

• ● Number of characters per info text

320

320

320

Message system

• ● Number of alarm classes

32

32

32

• ● Bit messages

• — Number of bit messages

6 000

6 000

6 000

• ● Analog messages

• — Number of analog messages

200

200

200

• ● S7 alarm number procedure

Yes

Yes

Yes

• ● System messages HMI

Yes

Yes

Yes

• ● System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )

Yes

Yes

Yes

• ● Number of characters per message

80

80

80

• ● Number of process values per message

8

8

8

• ● Acknowledgment groups

Yes

Yes

Yes

• ● Message indicator

Yes

Yes

Yes

• ● Message buffer

• — Number of entries

1 024

1 024

1 024

• — Circulating buffer

Yes

Yes

Yes

• — retentive

Yes

Yes

Yes

• — maintenance-free

Yes

Yes

Yes

Recipe management

• ● Number of recipes

500

500

500

• ● Data records per recipe

1 000

1 000

1 000

• ● Entries per data record

2 000

2 000

2 000

• ● Size of internal recipe memory

4 Mbyte

4 Mbyte

4 Mbyte

• ● Recipe memory expandable

Yes

Yes

Yes

Variables

• ● Number of variables per device

4 096

4 096

4 096

• ● Number of variables per screen

400

400

400

• ● Limit values

Yes

Yes

Yes

• ● Multiplexing

Yes

Yes

Yes

• ● Structures

Yes

Yes

Yes

• ● Arrays

Yes

Yes

Yes

Images

• ● Number of configurable images

750

750

750

• ● Permanent window/default

Yes

Yes

Yes

• ● Global image

Yes

Yes

Yes

• ● Pop-up images

Yes

Yes

Yes

• ● Slide-in images

Yes

Yes

Yes

• ● Image selection by PLC

Yes

Yes

Yes

• ● Image number in the PLC

Yes

Yes

Yes

Image objects

• ● Number of objects per image

600

600

600

• ● Text fields

Yes

Yes

Yes

• ● I/O fields

Yes

Yes

Yes

• ● Graphic I/O fields (graphics list)

Yes

Yes

Yes

• ● Symbolic I/O fields (text list)

Yes

Yes

Yes

• ● Date/time fields

Yes

Yes

Yes

• ● Switches

Yes

Yes

Yes

• ● Buttons

Yes

Yes

Yes

• ● Graphic display

Yes

Yes

Yes

• ● Icons

Yes

Yes

Yes

• ● Geometric objects

Yes

Yes

Yes

Complex image objects

• ● Number of complex objects per screen

40

40

40

• ● Alarm view

Yes

Yes

Yes

• ● Trend view

Yes

Yes

Yes

• ● User view

Yes

Yes

Yes

• ● Status/control

Yes

Yes

Yes

• ● Sm@rtClient view

Yes

Yes

Yes

• ● Recipe view

Yes

Yes

Yes

• ● f(x) trend view

Yes

Yes

Yes

• ● System diagnostics view

Yes

Yes

Yes

• ● Media Player

Yes

Yes

Yes

• ● HTML browser

Yes

Yes

Yes

• ● PDF display

Yes

Yes

Yes

• ● IP camera display

Yes

Yes

Yes

• ● Bar graphs

Yes

Yes

Yes

• ● Sliders

Yes

Yes

Yes

• ● Pointer instruments

Yes

Yes

Yes

• ● Analog/digital clock

Yes

Yes

Yes

Lists

• ● Number of text lists per project

500

500

500

• ● Number of entries per text list

500

500

500

• ● Number of graphics lists per project

500

500

500

• ● Number of entries per graphics list

500

500

500

Archiving

• ● Number of archives per device

50

50

50

• ● Number of entries per archive

50 000

50 000

50 000

• ● Message archive

Yes

Yes

Yes

• ● Process value archive

Yes

Yes

Yes

• ● Archiving methods

• — Sequential archive

Yes

Yes

Yes

• — Short-term archive

Yes

Yes

Yes

• ● Memory location

• — Memory card

Yes

Yes

Yes

• — USB memory

Yes

Yes

Yes

• — Ethernet

Yes

Yes

Yes

• ● Data storage format

• — CSV

Yes

Yes

Yes

• — TXT

Yes

Yes

Yes

• — RDB

Yes

Yes

Yes

Security

• ● Number of user groups

50

50

50

• ● Number of user rights

32

32

32

• ● Number of users

50

50

50

• ● Password export/import

Yes

Yes

Yes

• ● SIMATIC Logon

Yes

Yes

Yes

Logging through printer

• ● Alarms

Yes

Yes

Yes

• ● Report (shift log)

Yes

Yes

Yes

• ● Hardcopy

Yes

Yes

Yes

• ● Electronic print to file

Yes; PDF, HTML

Yes; PDF, HTML

Yes; PDF, HTML

Character sets

• ● Keyboard fonts

• — US English

Yes

Yes

Yes

Transfer (upload/download)

• ● MPI/PROFIBUS DP

Yes

Yes

Yes

• ● USB

Yes

Yes

Yes

• ● Ethernet

Yes

Yes

Yes

• ● using external storage medium

Yes

Yes

Yes

Process coupling

• ● S7-1200

Yes

Yes

Yes

• ● S7-1500

Yes

Yes

Yes

• ● S7-200

Yes

Yes

Yes

• ● S7-300/400

Yes

Yes

Yes

• ● LOGO!

Yes

Yes

Yes

• ● WinAC

Yes

Yes

Yes

• ● SINUMERIK

Yes; With SINUMERIK option package as from WinCC V15 or higher

Yes; With SINUMERIK option package as from WinCC V15 or higher

Yes; With SINUMERIK option package as from WinCC V15 or higher

• ● SIMOTION

Yes

Yes

Yes

• ● Allen Bradley (EtherNet/IP)

Yes

Yes

Yes

• ● Allen Bradley (DF1)

Yes

Yes

Yes

• ● Mitsubishi (MC TCP/IP)

Yes

Yes

Yes

• ● Mitsubishi (FX)

Yes

Yes

Yes

• ● OMRON (FINS TCP)

No

No

No

• ● OMRON (Host Link)

Yes

Yes

Yes

• ● Modicon (Modbus TCP/IP)

Yes

Yes

Yes

• ● Modicon (Modbus RTU)

Yes

Yes

Yes

• ● OPC UA Client

Yes

Yes

Yes

• ● OPC UA Server

Yes

Yes

Yes

Service tools/configuration aids

• ● Backup/Restore manually

Yes

Yes

Yes

• ● Backup/Restore automatically

Yes

Yes

Yes

• ● Simulation

Yes

Yes

Yes

• ● Device switchover

Yes

Yes

Yes

Peripherals/Options

Printer

Yes

Yes

Yes

SIMATIC HMI MM memory card: Multi Media Card

Yes; Up to 128 MB

Yes; Up to 128 MB

Yes; Up to 128 MB

SIMATIC HMI SD memory card: Secure Digital memory card

Yes; Up to 2 GB

Yes; Up to 2 GB

Yes; Up to 2 GB

SIMATIC HMI CF memory card Compact Flash Card

No

No

No

USB memory

Yes

Yes

Yes

SIMATIC IPC USB Flashdrive (USB stick)

Yes; Up to 16 GB

Yes; Up to 16 GB

Yes; Up to 16 GB

SIMATIC HMI USB stick

Yes; Up to 8 GB

Yes; Up to 8 GB

Yes; Up to 8 GB

Network camera

Yes

Yes

Yes

Mechanics/material

Enclosure material (front)

• ● Plastic

No

No

No

• ● Aluminum

Yes

Yes

Yes

• ● Stainless steel

No

No

No

Dimensions

Width of the housing front

415 mm

483 mm

560 mm

Height of housing front

310 mm

337 mm

380 mm

Mounting cutout, width

396 mm

465 mm

542 mm

Mounting cutout, height

291 mm

319 mm

362 mm

mounting depth

75 mm

75 mm

75 mm

Weights

Weight (without packaging)

4.4 kg

5.6 kg

6.7 kg

General information

Product type designation

KP700 Comfort

KP900 Comfort

KP1200 Comfort

KP1500 Comfort

based on

6AV2124-1GC01-0AX0

6AV2124-1JC01-0AX0

6AV2124-1MC01-0AX0

6AV2124-1QC02-0AX1

Display

Design of display

TFT

TFT

TFT

TFT

Screen diagonal

7 in

9 in

12.1 in

15.4 in

Display width

152.4 mm

195 mm

261.1 mm

331.2 mm

Display height

91.4 mm

117 mm

163.2 mm

207 mm

Number of colors

16 777 216

16 777 216

16 777 216

16 777 216

Resolution (pixels)

• ● Horizontal image resolution

800 pixel

800 pixel

1 280 pixel

1 280 pixel

• ● Vertical image resolution

480 pixel

480 pixel

800 pixel

800 pixel

Backlighting

• ● MTBF backlighting (at 25 °C)

80 000 h

80 000 h

80 000 h

80 000 h

• ● Backlight dimmable

Yes; 0-100 %

Yes; 0-100 %

Yes; 0-100 %

Yes; LED, dimmable

Control elements

Keyboard

• ● Function keys

• — Number of function keys

24

26

34

36

• — Number of function keys with LEDs

24

26

34

36

• ● Keys with LED

Yes

Yes

Yes

Yes

• ● System keys

Yes

Yes

Yes

Yes

• ● Numeric keyboard

Yes

Yes

Yes

Yes

• ● alphanumeric keyboard

Yes; similar to mobile phone

Yes; similar to mobile phone

Yes; similar to mobile phone

Yes

Touch operation

• ● Design as touch screen

No; without

No; without

No; without

No; without

Expansions for operator control of the process

• ● DP direct LEDs (LEDs as S7 output I/O)

• — F1...Fx

24

26

34

36

• ● Direct keys (keys as S7 input I/O)

• — F1...Fx

24

26

34

36

• ● Direct keys (touch buttons as S7 input I/O)

0

0

0

Installation type/mounting

Mounting position

vertical

vertical

vertical

vertical

Wall mounting/direct mounting

No

No

No

Mounting in portrait format possible

No

No

No

No

Mounting in landscape format possible

Yes

Yes

Yes

Yes

maximum permissible angle of inclination without external ventilation

35°

35°

35°

35°

Supply voltage

Type of supply voltage

DC

DC

DC

DC

Rated value (DC)

24 V

24 V

24 V

24 V

permissible range, lower limit (DC)

19.2 V

19.2 V

19.2 V

19.2 V

permissible range, upper limit (DC)

28.8 V

28.8 V

28.8 V

28.8 V

Input current

Current consumption (rated value)

0.5 A

0.75 A

0.85 A

1.7 A

Starting current inrush I²t

0.5 A²·s

0.5 A²·s

0.5 A²·s

0.5 A²·s

Power

Active power input, typ.

12 W

18 W

20 W

41 W

Processor

Processor type

X86

X86

X86

X86

Storage

Flash

Yes

Yes

Yes

Yes

RAM

Yes

Yes

Yes

Yes

Memory available for user data

12 Mbyte

12 Mbyte

12 Mbyte

24 Mbyte

Type of output

Info LED

Yes

Yes

Yes

No

Power LED

No

No

No

No

Error LED

No

No

No

No

Acoustics

• ● Buzzer

No

No

No

No

• ● Speaker

Yes

Yes

Yes

Yes

Time of day

Clock

• ● Hardware clock (real-time)

Yes

Yes

Yes

Yes

• ● Software clock

Yes

Yes

Yes

Yes

• ● retentive

Yes; Back-up duration typically 6 weeks

Yes; Back-up duration typically 6 weeks

Yes; Back-up duration typically 6 weeks

Yes; Back-up duration typically 6 weeks

• ● synchronizable

Yes

Yes

Yes

Yes

Interfaces

Number of industrial Ethernet interfaces

1; 2 ports (switch)

1; 2 ports (switch)

1; 2 ports (switch)

2; 2 ports (switch) + independent port

Number of RS 485 interfaces

1; RS 422 / 485 combined

1; RS 422 / 485 combined

1; RS 422 / 485 combined

1; RS 422 / 485 combined

Number of RS 422 interfaces

1

1

1

0

Number of RS 232 interfaces

0

0

0

0

Number of USB interfaces

2; USB 2.0

2; USB 2.0

2; USB 2.0

2; USB 2.0

• ● USB Mini B

1; 5-pole

1; 5-pole

1; 5-pole

Number of 20 mA interfaces (TTY)

0

0

0

0

Number of parallel interfaces

0

0

0

0

Number of other interfaces

0

0

0

0

Number of SD card slots

2

2

2

2

With software interfaces

No

No

No

No

Industrial Ethernet

• ● Industrial Ethernet status LED

2

2

2

3

• ● Number of ports of the integrated switch

2

2

2

2

Protocols

PROFINET

Yes

Yes

Yes

Yes

Supports protocol for PROFINET IO

Yes

Yes

Yes

Yes

IRT

Yes; As of WinCC V12

Yes; As of WinCC V12

Yes; As of WinCC V12

Yes

PROFIBUS

Yes

Yes

Yes

Yes

EtherNet/IP

Yes

Yes

Yes

Yes

MPI

Yes

Yes

Yes

Yes

Protocols (Ethernet)

• ● TCP/IP

Yes

Yes

Yes

Yes

• ● DHCP

Yes

Yes

Yes

Yes

• ● SNMP

Yes

Yes

Yes

Yes

• ● DCP

Yes

Yes

Yes

Yes

• ● LLDP

Yes

Yes

Yes

Yes

WEB characteristics

• ● HTTP

Yes

Yes

Yes

Yes

• ● HTTPS

Yes

Yes

Yes

Yes

• ● HTML

Yes

Yes

Yes

Yes

• ● XML

Yes

Yes

Yes

Yes

• ● CSS

Yes

Yes

Yes

Yes

• ● Active X

Yes

Yes

Yes

Yes

• ● JavaScript

Yes

Yes

Yes

Yes

• ● Java VM

No

No

No

No

Redundancy mode

Media redundancy

• — MRP

Yes; As of WinCC V12

Yes; As of WinCC V12

Yes; As of WinCC V12

Yes

Further protocols

• ● CAN

No

No

No

No

• ● MODBUS

Yes

Yes

Yes

Yes

Interrupts/diagnostics/status information

Diagnoses

• ● Diagnostic information readable

Yes; S7 controller

Yes; S7 controller

Yes; S7 controller

Yes; S7 controller

EMC

Emission of radio interference acc. to EN 55 011

• ● Limit class A, for use in industrial areas

Yes

Yes

Yes

Yes

• ● Limit class B, for use in residential areas

No

No

No

No

Degree and class of protection

IP (at the front)

IP65

IP65

IP65

IP65

IP (rear)

IP20

IP20

IP20

IP20

NEMA (front)

• ● Enclosure Type 4 at the front

Yes

Yes

Yes

Yes

• ● Enclosure Type 4x at the front

Yes

Yes

Yes

Yes

Ambient conditions

Suited for indoor use

Yes

Suited for outdoor use

No

Ambient temperature during operation

Operation (vertical installation)

• — For vertical installation, min.

0 °C; = Tmin

0 °C; = Tmin

0 °C; = Tmin

0 °C

• — For vertical installation, max.

50 °C; = Tmax

50 °C; = Tmax

50 °C; = Tmax

50 °C; (55 °C, see entry ID: 64847814)

Operation (max. tilt angle)

• — At maximum tilt angle, min.

0 °C; = Tmin

0 °C; = Tmin

0 °C; = Tmin

0 °C

• — At maximum tilt angle, max.

40 °C; = Tmax

40 °C; = Tmax

40 °C; = Tmax

40 °C

Operation (vertical installation, portrait format)

• — For vertical installation, min.

0 °C; = Tmin

0 °C; = Tmin

0 °C; = Tmin

0 °C

• — For vertical installation, max.

40 °C; = Tmax

40 °C; = Tmax

40 °C; = Tmax

40 °C

Operation (max. tilt angle, portrait format)

• — At maximum tilt angle, min.

0 °C; = Tmin

0 °C; = Tmin

0 °C; = Tmin

0 °C

• — At maximum tilt angle, max.

35 °C; = Tmax

35 °C; = Tmax

35 °C; = Tmax

40 °C

Ambient temperature during storage/transportation

• ● min.

-20 °C

-20 °C

-20 °C

-20 °C

• ● max.

60 °C

60 °C

60 °C

60 °C

Altitude during operation relating to sea level

• ● Installation altitude above sea level, max.

5 000 m

5 000 m

5 000 m

5 000 m

• ● Ambient air temperature-barometric pressure-altitude

Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Tmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax - 20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Relative humidity

• ● With condensation, tested in accordance with IEC 60068-2-38, max.

100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

Resistance

Coolants and lubricants

• — Resistant to commercially available coolants and lubricants

Yes; Incl. diesel and oil droplets in the air

Yes; Incl. diesel and oil droplets in the air

Yes; Incl. diesel and oil droplets in the air

Yes; Incl. diesel and oil droplets in the air

Use in stationary industrial systems

• — to biologically active substances according to EN 60721-3-3

Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

• — to chemically active substances according to EN 60721-3-3

Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

• — to mechanically active substances according to EN 60721-3-3

Yes; Class 3S4 incl. sand, dust, *

Yes; Class 3S4 incl. sand, dust, *

Yes; Class 3S4 incl. sand, dust, *

Yes; Class 3S4 incl. sand, dust, *

Use on ships/at sea

• — to biologically active substances according to EN 60721-3-6

Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

• — to chemically active substances according to EN 60721-3-6

Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

• — to mechanically active substances according to EN 60721-3-6

Yes; Class 6S3 incl. sand, dust; *

Yes; Class 6S3 incl. sand, dust; *

Yes; Class 6S3 incl. sand, dust; *

Yes; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

• — Against chemically active substances acc. to EN 60654-4

Yes; Class 3 (excluding trichlorethylene)

Yes; Class 3 (excluding trichlorethylene)

Yes; Class 3 (excluding trichlorethylene)

Yes; Class 3 (excluding trichlorethylene)

• — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04

Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

• — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04

* The supplied plug covers must remain in place over the unused interfaces during operation!

* The supplied plug covers must remain in place over the unused interfaces during operation!

* The supplied plug covers must remain in place over the unused interfaces during operation!

* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

• ● Coatings for printed circuit board assemblies acc. to EN 61086

Yes; Class 2 for high reliability

Yes; Class 2 for high reliability

Yes; Class 2 for high reliability

Yes; Class 2 for high reliability

• ● Protection against fouling acc. to EN 60664-3

Yes; Type 1 protection

Yes; Type 1 protection

Yes; Type 1 protection

Yes; Type 1 protection

• ● Military testing according to MIL-I-46058C, Amendment 7

Yes; Discoloration of coating possible during service life

Yes; Discoloration of coating possible during service life

Yes; Discoloration of coating possible during service life

Yes; Discoloration of coating possible during service life

• ● Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A

Yes; Conformal coating, Class A

Yes; Conformal coating, Class A

Yes; Conformal coating, Class A

Yes; Conformal coating, Class A

Operating systems

proprietary

No

No

No

No

pre-installed operating system

• ● Windows CE

Yes

Yes

Yes

Yes; Windows Embedded Compact 2013

Configuration

Message indicator

Yes

Yes

Yes

Yes

Alarm system (incl. buffer and acknowledgment)

Yes

Yes

Yes

Yes

Process value display (output)

Yes

Yes

Yes

Yes

Process value default (input) possible

Yes

Yes

Yes

Yes

Recipe management

Yes

Yes

Yes

Yes

Configuration software

• ● STEP 7 Basic (TIA Portal)

No

No

No

No

• ● STEP 7 Professional (TIA Portal)

No

No

No

No

• ● WinCC flexible Compact

No

No

No

No

• ● WinCC flexible Standard

No

No

No

No

• ● WinCC flexible Advanced

No

No

No

No

• ● WinCC Basic (TIA Portal)

No

No

No

No

• ● WinCC Comfort (TIA Portal)

Yes; from V11

Yes; from V11

Yes; from V11

Yes; V14 SP1 HSP and higher

• ● WinCC Advanced (TIA Portal)

Yes; from V11

Yes; from V11

Yes; from V11

Yes; V14 SP1 HSP and higher

• ● WinCC Professional (TIA Portal)

Yes; from V11

Yes; from V11

Yes; from V11

Yes; V14 SP1 HSP and higher

Languages

Online languages

• ● Number of online/runtime languages

32

32

32

32

Project languages

• ● Languages per project

32

32

32

32

Functionality under WinCC (TIA Portal)

Libraries

Yes

Yes

Yes

Yes

Applications/options

• ● Web browser

Yes

Yes

Yes

Yes

• ● Pocket Word

Yes

Yes

Yes

Yes

• ● Pocket Excel

Yes

Yes

Yes

Yes

• ● PDF Viewer

Yes

Yes

Yes

Yes

• ● Media Player

Yes

Yes

Yes

Yes

• ● SIMATIC WinCC Sm@rtServer

Yes

Yes

Yes

Yes

• ● SIMATIC WinCC Audit

Yes

Yes

Yes

Yes

Number of Visual Basic Scripts

Yes

Yes

Yes

Yes

Task planner

• ● time-controlled

Yes

Yes

Yes

Yes

• ● task-controlled

Yes

Yes

Yes

Yes

Help system

• ● Number of characters per info text

70

70

70

320

Message system

• ● Number of alarm classes

32

32

32

32

• ● Bit messages

Yes

Yes

• — Number of bit messages

4 000

4 000

4 000

6 000

• ● Analog messages

Yes

Yes

• — Number of analog messages

200

200

200

200

• ● S7 alarm number procedure

Yes

Yes

Yes

Yes

• ● System messages HMI

Yes

Yes

Yes

Yes

• ● System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )

Yes

Yes

Yes

Yes

• ● Number of characters per message

80

80

80

80

• ● Number of process values per message

8

8

8

8

• ● Acknowledgment groups

Yes

Yes

Yes

Yes

• ● Message indicator

Yes

Yes

Yes

Yes

• ● Message buffer

• — Number of entries

1 024

1 024

1 024

1 024

• — Circulating buffer

Yes

Yes

Yes

Yes

• — retentive

Yes

Yes

Yes

Yes

• — maintenance-free

Yes

Yes

Yes

Yes

Recipe management

• ● Number of recipes

300

300

300

500

• ● Data records per recipe

500

500

500

1 000

• ● Entries per data record

1 000

1 000

1 000

2 000

• ● Size of internal recipe memory

2 Mbyte

2 Mbyte

2 Mbyte

4 Mbyte

• ● Recipe memory expandable

Yes

Yes

Yes

Yes

Variables

• ● Number of variables per device

2 048

2 048

2 048

4 096

• ● Number of variables per screen

400

400

400

400

• ● Limit values

Yes

Yes

Yes

Yes

• ● Multiplexing

Yes

Yes

Yes

Yes

• ● Structures

Yes

Yes

Yes

Yes

• ● Arrays

Yes

Yes

Yes

Yes

Images

• ● Number of configurable images

500

500

500

750

• ● Permanent window/default

Yes

Yes

Yes

Yes

• ● Global image

Yes

Yes
