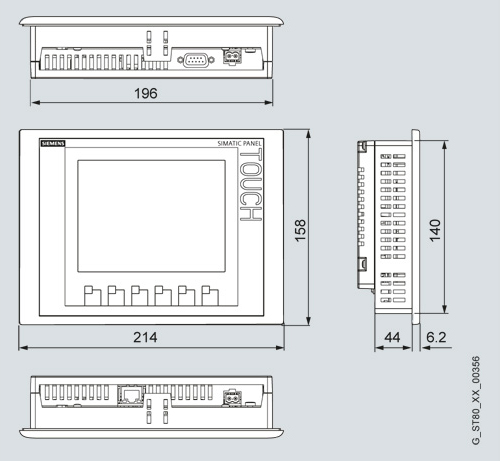

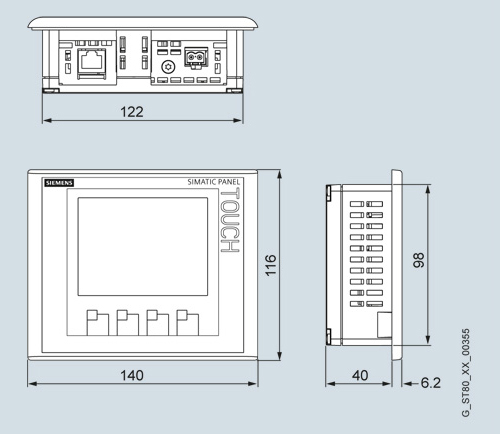

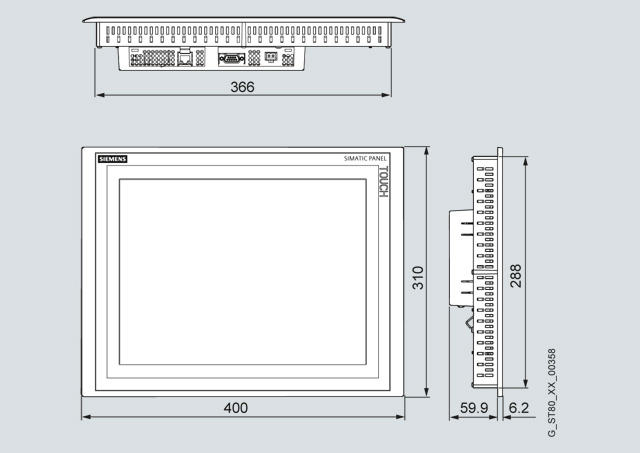

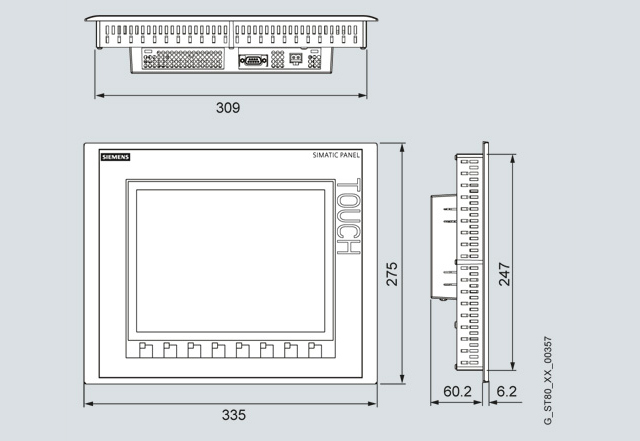

Панели операторов SIPLUS HMI Basic Panel с расширенным температурным диапазоном

Заказной номер

6AG1647-0AA11-2AX0

6AG1647-0AD11-2AX0

6AG1647-0AE11-4AX0

6AG1647-0AF11-4AX0

6AG1647-0AG11-4AX0

Заказной номер базовой панели

6AV6647-0AA11-3AX0

6AV6647-0AD11-3AX0

6AV6647-0AE11-3AX0

6AV6647-0AF11-3AX0

6AV6647-0AG11-3AX0

Диапазон рабочих температур

-10 ... +60 °C; допускается появление конденсата

-25 ... +60 °C; допускается появление конденсата

0 ... +50 °C; допускается появление конденсата

0 ... +50 °C; допускается появление конденсата

0 ... +50 °C; допускается появление конденсата

Защитное покрытие

Защитное покрытие печатных плат и электронных компонентов

Технические данные

Соответствуют техническим данным базовых панелей за исключением допустимых условий эксплуатации

Условия эксплуатации

Относительная влажность

5 ... 100 %, допускается появление конденсата

Биологически активные вещества

По EN 60721-3-3, класс 3B2: плесень, споры грибка

Химически активные вещества

По EN 60721-3-3, класс 3C4, включая соленый туман, и ISA–S71.04 уровни сложности G1; G2; G3; GX¹⁾²⁾

Механически активные вещества

По EN 60721-3-3, класс 3S4, включая токопроводящий песок и пыль ²⁾

Атмосферное давление (зависит от верхней границы диапазона рабочих температур)

1080 ... 795 гПа (-1000 … +2000 м)
диапазон рабочих температур

795 ...658 гПа (+2000 ... + 3500 м)
снижение на 10K

658 … 540 гПа (+3500 … +5000 м)
снижение на 20 K

General information

Product type designation

KP300 Basic mono PN

based on

6AV6647-0AH11-3AX1

Display

Design of display

FSTN

Screen diagonal

3.6 in

Display width

87 mm

Display height

31 mm

Number of colors

4; backlit display only (white, red, green, yellow)

Resolution (pixels)

• ● Horizontal image resolution

240 pixel

• ● Vertical image resolution

80 pixel

Backlighting

• ● MTBF backlighting (at 25 °C)

50 000 h

• ● Backlight dimmable

No

Control elements

Keyboard

• ● Function keys

• — Number of function keys

10

• — Number of function keys with LEDs

0

• ● Keys with LED

No

• ● System keys

Yes

• ● Numeric keyboard

Yes; Keyboard

• ● alphanumeric keyboard

Yes; Keyboard

Touch operation

• ● Design as touch screen

No; without

Installation type/mounting

Mounting position

vertical

Rack mounting

No

Wall mounting/direct mounting

No

Mounting in portrait format possible

No

Mounting in landscape format possible

Yes

maximum permissible angle of inclination without external ventilation

35°

Supply voltage

Type of supply voltage

DC

Rated value (DC)

24 V

permissible range, lower limit (DC)

19.2 V

permissible range, upper limit (DC)

28.8 V

Input current

Current consumption (rated value)

0.1 A

Starting current inrush I²t

0.5 A²·s

Power

Active power input, typ.

3 W

Processor

Processor type

RISC 32 bit

Storage

Flash

Yes

RAM

Yes

Memory available for user data

1 Mbyte

Type of output

Acoustics

• ● Buzzer

No

• ● Speaker

No

Time of day

Clock

• ● Hardware clock (real-time)

No

• ● Software clock

Yes

• ● retentive

No

• ● synchronizable

Yes

Interfaces

Number of industrial Ethernet interfaces

1

Number of RS 485 interfaces

0

Number of RS 422 interfaces

0

Number of RS 232 interfaces

0

Number of USB interfaces

0

Number of 20 mA interfaces (TTY)

0

Number of parallel interfaces

0

Number of other interfaces

0

Number of SD card slots

0

With software interfaces

No

Industrial Ethernet

• ● Industrial Ethernet status LED

2

Protocols

PROFINET

Yes

Supports protocol for PROFINET IO

No

IRT

No

PROFIBUS

No

EtherNet/IP

Yes

MPI

No

Protocols (Ethernet)

• ● TCP/IP

Yes

• ● DHCP

Yes

• ● SNMP

Yes

• ● DCP

Yes

• ● LLDP

Yes

WEB characteristics

• ● HTTP

No

• ● HTML

No

Redundancy mode

Media redundancy

• — MRP

No

Further protocols

• ● CAN

No

• ● MODBUS

Yes; Modicon (MODBUS TCP/IP)

Interrupts/diagnostics/status information

Diagnoses

• ● Diagnostic information readable

No

EMC

Emission of radio interference acc. to EN 55 011

• ● Limit class A, for use in industrial areas

Yes

• ● Limit class B, for use in residential areas

No

Degree and class of protection

IP (at the front)

IP65

IP (rear)

IP20

NEMA (front)

• ● Enclosure Type 4 at the front

Yes

• ● Enclosure Type 4x at the front

Yes

Ambient conditions

Ambient temperature during operation

Operation (vertical installation)

• — For vertical installation, min.

-25 °C; = Tmin

• — For vertical installation, max.

60 °C; = Tmax

Operation (max. tilt angle)

• — At maximum tilt angle, min.

-25 °C; = Tmin

• — At maximum tilt angle, max.

40 °C; = Tmax

Ambient temperature during storage/transportation

• ● min.

-25 °C

• ● max.

60 °C

Altitude during operation relating to sea level

• ● Installation altitude above sea level, max.

5 000 m

• ● Ambient air temperature-barometric pressure-altitude

Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Relative humidity

• ● With condensation, tested in accordance with IEC 60068-2-38, max.

100 %; RH incl. condensation/frost (no commissioning when condensation present), horizontal at vertical mounting position

Resistance

Coolants and lubricants

• — Resistant to commercially available coolants and lubricants

Yes; Incl. diesel and oil droplets in the air

Use in stationary industrial systems

• — to biologically active substances according to EN 60721-3-3

Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

• — to chemically active substances according to EN 60721-3-3

Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

• — to mechanically active substances according to EN 60721-3-3

Yes; Class 3S4 incl. sand, dust, *

Use on ships/at sea

• — to biologically active substances according to EN 60721-3-6

Yes; Class 6B2 mold, fungal and dry rot spores (excluding fauna)

• — to chemically active substances according to EN 60721-3-6

Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

• — to mechanically active substances according to EN 60721-3-6

Yes; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

• — Against chemically active substances acc. to EN 60654-4

Yes; Class 3 (excluding trichlorethylene)

• — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04

Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

• — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04

* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

• ● Coatings for printed circuit board assemblies acc. to EN 61086

Yes; Class 2 for high reliability

• ● Protection against fouling acc. to EN 60664-3

Yes; Type 1 protection

• ● Military testing according to MIL-I-46058C, Amendment 7

Yes; Discoloration of coating possible during service life

• ● Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A

Yes; Conformal coating, Class A

Operating systems

proprietary

Yes

pre-installed operating system

• ● Windows CE

No

Configuration

Message indicator

Yes

Alarm system (incl. buffer and acknowledgment)

Yes

Process value display (output)

Yes

Process value default (input) possible

Yes

Recipe management

Yes

Configuration software

• ● STEP 7 Basic (TIA Portal)

Yes; via integrated WinCC Basic (TIA Portal)

• ● STEP 7 Professional (TIA Portal)

Yes; via integrated WinCC Basic (TIA Portal)

• ● WinCC flexible Compact

No

• ● WinCC flexible Standard

No

• ● WinCC flexible Advanced

No

• ● WinCC Basic (TIA Portal)

Yes

• ● WinCC Comfort (TIA Portal)

Yes

• ● WinCC Advanced (TIA Portal)

Yes

• ● WinCC Professional (TIA Portal)

Yes

Languages

Online languages

• ● Number of online/runtime languages

5

Project languages

• ● Languages per project

32

Functionality under WinCC (TIA Portal)

Libraries

Yes

Applications/options

none

• ● Web browser

No

• ● SIMATIC WinCC Sm@rtServer

No

Task planner

• ● time-controlled

No

• ● task-controlled

Yes

Help system

Yes

• ● Number of characters per info text

320

Message system

• ● Number of alarm classes

32

• ● Bit messages

Yes

• — Number of bit messages

200

• ● Analog messages

Yes

• — Number of analog messages

15

• ● System messages HMI

Yes

• ● System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )

No

• ● Number of characters per message

80

• ● Number of process values per message

8

• ● Message indicator

Yes

• ● Message buffer

• — Number of entries

256

• — Circulating buffer

Yes

• — retentive

Yes

• — maintenance-free

Yes

Recipe management

• ● Number of recipes

5

• ● Data records per recipe

20

• ● Entries per data record

20

• ● Size of internal recipe memory

40 kbyte

• ● Recipe memory expandable

No

Variables

• ● Number of variables per device

250

• ● Number of variables per screen

30

• ● Limit values

Yes

• ● Multiplexing

Yes

• ● Structures

No

• ● Arrays

Yes

Images

• ● Number of configurable images

50

• ● Permanent window/default

Yes

• ● Global image

Yes

• ● Image selection by PLC

Yes

• ● Image number in the PLC

Yes

Image objects

• ● Number of objects per image

30

• ● Text fields

Yes

• ● I/O fields

Yes

• ● Graphic I/O fields (graphics list)

Yes

• ● Symbolic I/O fields (text list)

Yes

• ● Date/time fields

Yes

• ● Switches

Yes

• ● Buttons

Yes

• ● Graphic display

Yes

• ● Icons

Yes

• ● Geometric objects

Yes

Complex image objects

• ● Number of complex objects per screen

5

• ● Alarm view

Yes

• ● Trend view

Yes

• ● User view

Yes

• ● Status/control

No

• ● Sm@rtClient view

No

• ● Recipe view

Yes

• ● f(x) trend view

No

• ● System diagnostics view

No

• ● Media Player

No

• ● Bar graphs

Yes

• ● Sliders

No

• ● Pointer instruments

No

• ● Analog/digital clock

No

Lists

• ● Number of text lists per project

150

• ● Number of entries per text list

30

• ● Number of graphics lists per project

100

• ● Number of entries per graphics list

30

Archiving

• ● Number of archives per device

0

Security

• ● Number of user groups

50

• ● Number of user rights

32

• ● Number of users

50

• ● Password export/import

No

• ● SIMATIC Logon

No

Character sets

• ● Keyboard fonts

• — US English

Yes

Transfer (upload/download)

• ● MPI/PROFIBUS DP

No

• ● USB

No

• ● Ethernet

Yes

• ● using external storage medium

No

Process coupling

• ● S7-1200

Yes

• ● S7-1500

Yes

• ● S7-200

Yes

• ● S7-300/400

Yes

• ● LOGO!

Yes

• ● WinAC

Yes

• ● SINUMERIK

No

• ● SIMOTION

No

• ● Allen Bradley (EtherNet/IP)

Yes

• ● Allen Bradley (DF1)

No

• ● Mitsubishi (MC TCP/IP)

Yes

• ● Mitsubishi (FX)

No

• ● OMRON (FINS TCP)

No

• ● OMRON (Host Link)

No

• ● Modicon (Modbus TCP/IP)

Yes

• ● Modicon (Modbus RTU)

No

Service tools/configuration aids

• ● Backup/Restore manually

Yes

• ● Backup/Restore automatically

No

• ● Simulation

Yes

• ● Device switchover

Yes

Peripherals/Options

Printer

No

SIMATIC HMI MM memory card: Multi Media Card

No

SIMATIC HMI SD memory card: Secure Digital memory card

No

USB memory

No

Mechanics/material

Enclosure material (front)

• ● Plastic

Yes

• ● Aluminum

No

• ● Stainless steel

No

Dimensions

Width of the housing front

165 mm

Height of housing front

97 mm

Mounting cutout, width

149 mm

Mounting cutout, height

82 mm

mounting depth

30 mm

Weights

Weight (without packaging)

0.25 kg

Weight (with packaging)

0.38 kg
