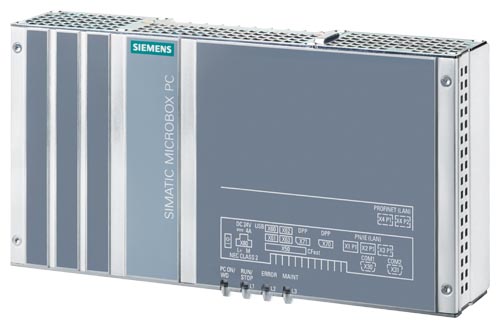

SIMATIC IPC427E (Microbox PC): The powerful embedded IPC – maintenance-free with versatile configuration
Ready-to-run, complete solution:
- Ultra-compact
- Maintenance-free
- 6th Generation Intel Core i technology
Особенности
High data processing speed for high productivity
- Up to Intel® Xeon®, fan-free
- DDR4 memory technology up to 16 GB
- AI-Accelerator for real-time inference
Maximum compactness and ruggedness for use directly on the machine
- Low mounting depth, ambient temperature up to 55 °C
- Front portrait mounting as second standard mounting position
- Solid-state drive (SSD) optionally 256 GB, 240 GB or 480 GB, SATA hard disk, or CFast cards with up to 128 GB
High degree of industrial functionality and flexibility for implementing embedded solutions
- Flexible memory concepts (e.g. 2 mass storage units possible)
- 3 x LAN 10/100/1000 Mbps connections; teaming-capable
- PROFINET interface onboard
- 4 x high-speed USB 3.0 ports; 2 serial interfaces (optional)
- Flexible installation and mounting options (top hat DIN rail, wall, portrait mounting)
- Simple expansion capability (up to 2 PCIe slots)
- On-off switch
High system availability in order to reduce the risk of potential failures and maintenance costs
- Maintenance-free since no rotating parts (fans, hard disks) and operation without battery possible
- 512 KB NVRAM can be written by Software Controller
- Front LED for efficient self-diagnostics; optimized for headless operation through special BIOS properties
- System-tested SIMATIC software
High investment security in order to reduce engineering costs
- Long-term availability: Service and support period of 8 to 10 years after market launch
- Compatible with existing installations
Область применения
The SIMATIC IPC427E provides machine, plant and control cabinet builders with a high-performance, compact PC platform for use at machine or process level, or in the industrial environment for:
- Measuring and checking, open-loop and closed-loop control of process and machine data
- Acquisition, further processing and visualization of data
- All applications at the machine level – created in C/C++ or with Software Controller/WinCC RT Advanced – which require rugged, ultra-compact IPCs with high computing power
- Additional new applications such as shipbuilding, building automation, water treatment
The application spectrum ranges from automation computers fully integrated in TIA with CPU 1500S Software Controllers, for example, to C/C++-based automation solutions with VxWorks, for example, and "standalone" applications for general IT applications.
For software products that require Windows 7 Ultimate, the combination of Windows 7 Ultimate is available preinstalled on the hard disk or SSD.
The SIMATIC IPC427E has the CE mark for use in industrial applications as well as in domestic, business and commercial environments. It can therefore also be used in building automation systems or in public facilities. The device also has the most important marine approvals.
Due to the fan-free design and use of SIMATIC PC CFast memories or SSDs there are no rotating parts, which increases system availability.
The SIMATIC PC can be ordered in conjunction with WinCC SCADA or WinCC (Advanced, Professional) as SIMATIC HMI packages with a price advantage.
Дизайн
Basic design
- All-metal enclosure, resistant to vibrations and shocks, also with high electromagnetic compatibility
- Graphics onboard, 2 x DisplayPort
- Optical drives can be connected externally via USB interface, not included in scope of supply
- Interfaces (accessible from one side):
- 3 x LAN 10/100/1000 Mbps Ethernet interface (RJ45)
- 4 x high-speed USB V3.0
- 2 x COM (RS232/RS485)
- Vacant slots (when using versions with one or two expansion slots):
- Up to 2 x PCIe cards
- Isolated power supply: 24 V DC (19.2 to 28.8 V)
Design versions
- Processor:
- Intel® Celeron® processor G3902E (2 MB cache, 1.60 GHz)
- Intel® Core™ i3-6102E processor (3 MB cache, 1.90 GHz)
- Intel® Core™ i5-6442EQ processor (6 MB cache, up to 2.70 GHz)
- Intel® Xeon® processor E3-1505L v5 (8 MB cache, 2.00 GHz)
- Primary storage capacity of 4 GB to (8/16 GB optional), DDR4 SDRAM
- Fieldbus
- PROFINET onboard, 3 x RJ45
- Hardware expansion:
- Two RS232/RS485 interfaces (COM) onboard
- Drives:
- 240 GB or 480 GB solid-state drive, rugged alternative to hard disk
- Flash drive (replaceable, accessible): 2 GB, 4 GB, 8 GB, 16 GB or 128 GB
- Hard disk serial ATA, 2.5"
- Preinstalled operating systems:
- Windows 7 Ultimate MUI
- Windows Embedded Standard 7
- Windows 10 Enterprise LTSB 2016, 64-bit
- Windows 10 IoT Enterprise LTSC 2019, 64-bit
Функции
- Integrated, parameterizable monitoring functions (program execution/watchdog, processor and board temperature)
- Expanded diagnostics/messages via Ethernet, e-mail, SMS and for direct transfer to SIMATIC software via OPC (optionally via SIMATIC PC DiagMonitor)
- Operating hours counter
- Hard disk status
- System status (heartbeat)
- Automatic logging of all messages to a log file
- Capability for central monitoring of networked SIMATIC IPC
Интеграция
Integrated interfaces:
-
Ethernet
The three integrated Gigabit Ethernet interfaces (10/100/1 000 Mbps) can be used for IT communication and for data exchange with automation devices such as SIMATIC S7 (with the "SOFTNET S7" software package). -
PROFINET
The PROFINET interface can be used for connecting distributed field devices or for controlling drives. -
Further interfaces
Up to two free slots for PCIe modules, 4 high-speed USB V3.0 interfaces, and two serial interfaces are available for connecting additional I/O devices
Технические данные
Article number |
6AG4141-.....-.... |
|
|---|---|---|
SIMATIC IPC427E (MicroBOX PC) |
||
General information |
||
Product type designation |
IPC427E |
|
Installation type/mounting |
||
Mounting |
DIN rail, wall mounting, portrait mounting |
|
Design |
Box PC, built-in unit |
|
Supply voltage |
||
Type of supply voltage |
24 V DC |
|
Rated value (DC) |
24 V; PELV / SELV floating |
|
Mains buffering |
||
|
20 ms |
|
Processor |
||
Processor type |
Celeron G3902 (2C/2T, 1.6 GHz, 2 MB Cache); Core i3-6102E (2C/4T, 1.9 GHz, 3 MB Cache); Core i5-6442EQ (4C/4T, 1.9 (2.7) GHz, 6 MB Cache, iAMT); Xeon E3-1505L v5 (4C/8T, 2.0 (2.8) GHz, 8 MB Cache, iAMT) |
|
Chipset |
Intel C236 / Intel H110 |
|
Graphic |
||
Graphics controller |
Intel HD graphics controller |
|
Drives |
||
Hard disk |
2.5" SATA ≥ 320 GB |
|
SSD |
Yes; 128 / 240 / 480 GB |
|
Storage |
||
Type of memory |
DDR4-2400 SO-DIMM |
|
Main memory |
4 / 8 / 16 GB, ECC optional |
|
Capacity of main memory, max. |
16 Gbyte |
|
Data areas and their retentivity |
||
Retentive data area (incl. timers, counters, flags), max. |
512 kbyte; 128 KB can be stored in the buffer time; optional |
|
Hardware configuration |
||
Slots |
||
|
2x PCIe; optional: 1x PCIe (x4); 2x PCIe (x1, x4), with card retainer |
|
|
2; Optional |
|
|
1; CFast |
|
Interfaces |
||
Number of industrial Ethernet interfaces |
3; Ethernet (2x RJ45, optional 3x RJ45) |
|
USB port |
4x USB 3.0 |
|
Connection for keyboard/mouse |
USB / USB |
|
serial interface |
Without / 2x COM (RS 232 / 485 / 422; switchable) |
|
Video interfaces |
||
|
2x DisplayPort |
|
Industrial Ethernet |
||
|
3x Ethernet (RJ45) |
|
|
Yes |
|
|
Yes |
|
Interrupts/diagnostics/status information |
||
LED status display |
1x power, 3x user |
|
Bus diagnostics |
Yes |
|
Integrated Functions |
||
Monitoring functions |
||
|
Yes |
|
|
Yes |
|
|
No |
|
|
Optional |
|
EMC |
||
Interference immunity against discharge of static electricity |
||
|
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
|
Interference immunity against high-frequency electromagnetic fields |
||
|
10 V/m for 80 - 1 000 MHz and 1.4 - 2 GHz, 80% AM acc. to IEC 61000-4-3; 3 V/m for 2 - 2.7 GHz, 80% AM acc. to IEC 61000-4-3; 10 V for 10 kHz - 80 MHz, 80% AM acc. to IEC 61000-4-6 |
|
Interference immunity to cable-borne interference |
||
|
±2 kV acc. to IEC 61000-4-4, burst; ±1 kV acc. to IEC 61000-4-5, surge symmetric; ±2 kV acc. to IEC 61000-4-5, surge asymmetric |
|
|
±2 kV acc. to IEC 61000-4-5, surge, length > 30 m |
|
|
±1 kV acc. to IEC 61000-4-4; burst; length < 3 m; ±2 kV acc. to IEC 61000-4-4; burst; length > 3 m |
|
Interference immunity against voltage surge |
||
|
±2 kV acc. to IEC 61000-4-5, surge asymmetric |
|
|
±1 kV acc. to IEC 61000-4-5, surge symmetric |
|
Interference immunity to magnetic fields |
||
|
100 A/m; to IEC 61000-4-8 |
|
Emission of conducted and non-conducted interference |
||
|
EN 61000-6-3, EN 61000-6-4, CISPR 22 Class B, FCC Class A |
|
Degree and class of protection |
||
IP degree of protection |
IP20 |
|
Standards, approvals, certificates |
||
CE mark |
Yes |
|
UL approval |
Yes |
|
|
Yes |
|
cULus |
Yes |
|
RCM (formerly C-TICK) |
Yes |
|
KC approval |
Yes |
|
EAC (formerly Gost-R) |
Yes |
|
FCC |
Yes |
|
EMC |
CE, EN 55022A, EN 61000-6-4, EN 61000-6-2 |
|
Use in hazardous areas |
||
|
Yes; for inscription on device rating plate |
|
|
No |
|
|
Yes; for inscription on device rating plate |
|
|
No |
|
|
Yes; for inscription on device rating plate |
|
|
No |
|
|
Yes; for inscription on device rating plate |
|
|
No |
|
|
No |
|
|
No |
|
Marine approval |
||
|
Yes |
|
|
Yes |
|
|
Yes |
|
|
Yes |
|
|
Yes |
|
|
Yes |
|
|
Yes |
|
Ambient conditions |
||
Ambient temperature during operation |
||
|
0 °C |
|
|
55 °C |
|
Ambient temperature during storage/transportation |
||
|
-40 °C |
|
|
70 °C |
|
Relative humidity |
||
|
Tested according to IEC 60068-2-78, IEC 60068-2-30: Operation: 5% to 80% at 25 °C (no condensation), Storage: 5% to 95% at 25 °C (no condensation) |
|
Vibrations |
||
|
tested to DIN IEC 60068-2-6: 10 Hz to 58 Hz: 0.075 mm, 58 Hz to 200 Hz: 9.8 m/s² (1 g) |
|
Shock testing |
||
|
Tested to DIN IEC 60068-2-29: 50 m/s² (5 g), 30 ms, 100 shocks |
|
Operating systems |
||
pre-installed operating system |
Windows 7 Ultimate (Multi-Language) 64-bit, Windows Embedded Standard 7 E/P 32-bit / 64-bit, Windows 10 |
|
without operating system |
Yes; Optional |
|
pre-installed operating system |
||
|
Yes; Ultimate 32 bit or 64 bit |
|
|
Yes; Windows 10 Enterprise 2016 LTSB, 64 bit, MUI |
|
Software |
||
Pre-installed software |
Edge SW (Simatic, Sinumerik), optional |
|
SIMATIC Software |
Optionally with pre-installed SIMATIC WinCC RT Advanced / Software Controller CPU 1500S software bundle |
|
Dimensions |
||
Width |
262 mm |
|
Height |
139.7 mm |
|
Depth |
55.5 mm; without PCIe |
|
Article number |
6AG4141-1AA17-0FA0 |
6AG4141-5AB17-0FA0 |
6AG4141-5BC30-0FW8 |
|
|---|---|---|---|---|
SIMATIC IPC427E (MicroBOX PC) |
SIMATIC IPC427E (MicroBOX PC) |
SIMATIC IPC427E (MicroBOX PC) |
||
General information |
||||
Product type designation |
IPC427E |
IPC427E |
IPC427E |
|
Installation type/mounting |
||||
Mounting |
standard rail |
|||
Design |
Box PC, built-in unit |
|||
Supply voltage |
||||
Type of supply voltage |
24 V DC |
24 V DC |
24 V DC |
|
Mains buffering |
||||
|
20 ms |
|||
Processor |
||||
Processor type |
Celeron G3902E |
Core i5-6442EQ (4C/4T, 1.9 (2.7) GHz, 6 MB cache) |
Core i5-6442EQ (4C/4T, 1.9 (2.7) GHz, 6 MB cache) |
|
Chipset |
Intel C236 / Intel H110 |
|||
Graphic |
||||
Graphics controller |
Intel HD graphics controller |
|||
Graphics card |
Yes |
Yes |
||
Drives |
||||
SSD |
Yes; ≥ 240 GB optional |
|||
Storage |
||||
Type of memory |
DDR4-2400 SO-DIMM |
|||
Capacity of main memory, max. |
4 Gbyte |
8 Gbyte |
16 Gbyte |
|
Hardware configuration |
||||
Slots |
||||
|
0 |
0 |
||
|
1 |
1 |
0 |
|
|
1; CFast |
|||
Interfaces |
||||
Number of industrial Ethernet interfaces |
3 |
3 |
3; Ethernet (2x RJ45, optional 3x RJ45) |
|
Number of PROFINET interfaces |
3 |
3 |
||
serial interface |
2x COM (1x RS 232; 1x RS 232 / 422 / 485) |
|||
Video interfaces |
||||
|
2x DisplayPort |
|||
Industrial Ethernet |
||||
|
||||
|
Yes |
|||
|
Yes |
|||
Interrupts/diagnostics/status information |
||||
LED status display |
1x power, 3x user |
|||
Bus diagnostics |
Yes |
|||
Integrated Functions |
||||
Monitoring functions |
||||
|
Yes |
|||
|
No |
|||
|
Optional |
|||
Degree and class of protection |
||||
IP degree of protection |
IP20 |
IP20 |
IP20 |
|
Standards, approvals, certificates |
||||
CE mark |
Yes |
|||
UL approval |
Yes |
|||
|
Yes |
|||
cULus |
Yes |
|||
RCM (formerly C-TICK) |
Yes |
|||
KC approval |
Yes |
|||
EAC (formerly Gost-R) |
Yes |
|||
FCC |
Yes |
|||
Use in hazardous areas |
||||
|
Yes; Optional |
|||
|
Yes; Optional |
|||
|
Yes; Optional |
|||
Marine approval |
||||
|
Yes |
|||
|
Yes |
|||
|
Yes |
|||
|
Yes |
|||
|
Yes |
|||
|
Yes |
|||
|
Yes |
|||
Ambient conditions |
||||
Ambient temperature during operation |
||||
|
0 °C |
0 °C |
0 °C |
|
|
45 °C |
45 °C |
55 °C |
|
Ambient temperature during storage/transportation |
||||
|
-40 °C |
|||
|
70 °C |
|||
Vibrations |
||||
|
tested to DIN IEC 60068-2-6: 10 Hz to 58 Hz: 0.075 mm, 58 Hz to 200 Hz: 9.8 m/s² (1 g) |
|||
Operating systems |
||||
pre-installed operating system |
Windows 10 IoT Enterprise 2016 LTSB, 64bit, MUI |
Windows 10 IoT Enterprise 2016 LTSB, 64bit, MUI |
SIMATIC Industrial OS |
|
Dimensions |
||||
Width |
262 mm |
262 mm |
262 mm |
|
Height |
133 mm |
133 mm |
139.69999 mm |
|
Depth |
55.5 mm |
55.5 mm |
55.5 mm; without PCIe |
|
Дальнейшая информация
More information is available on the internet at this link.
