    Обзор

    SIRIUS 3RW52 General Performance soft starters are the ideal solution for standard applications. With ideal 3-phase motor control, they cover the performance range from 5.5 kW to 560 kW (at 400 V).

    Optional HMI modules, plug-in communications modules (PROFINET, PROFIBUS, EtherNet/IP and Modbus) and either an analog output or thermistor motor protection provide maximum flexibility.

    With their modern hybrid switching technology, the SIRIUS 3RW52 soft starters offer efficient switching for long-term, energy-saving use.

    More information

    Homepage, see www.siemens.com/sirius-soft-starter

    SIRIUS Soft Starter ES (TIA Portal) for diagnostics, see

    SiePortal, see www.siemens.com/product_catalog_siep?3RW52

    SIRIUS 3RW soft starter block library for SIMATIC PCS 7, see

    TIA Selection Tool Cloud (TST Cloud), see www.siemens.com/tstcloud/?node=3rw52

    Decision support for motor start – Starting and operating three-phase asynchronous motors efficiently, see www.siemens.com/motorstart-guide

    Topic page, see

    Conversion tool, see www.siemens.com/conversion-tool

    Simulation Tool for Soft Starters (STS), see

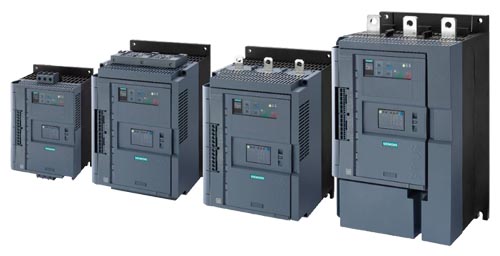

    SIRIUS 3RW52 soft starters device family

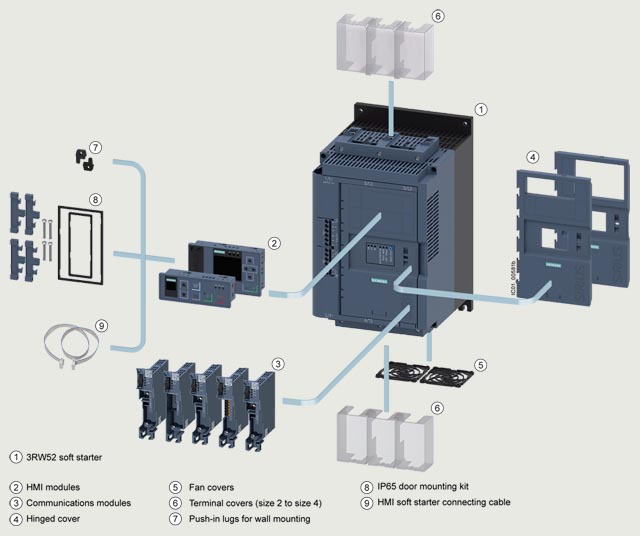

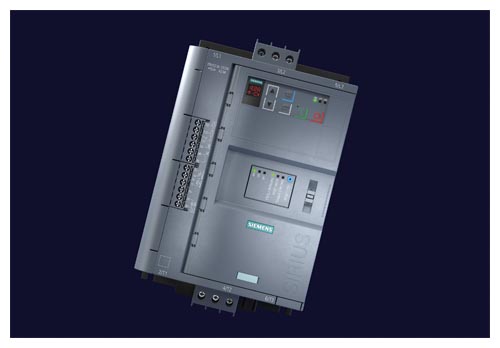

    The SIRIUS 3RW52 General Performance soft starter with accessories, for expansion with HMI module or communications module

    Особенности

    Product characteristics/function

    Performance features/benefits

    Hybrid switching technology and 3-phase motor control

    Minimum power loss and optimum/symmetrical motor control

    TIA integration – communications modules and HMI modules optional

    Efficient configuration and maximum flexibility in automation engineering

    Soft Torque

    Reduced mechanical loading and optimum pump stop

    Parameterization using potentiometers

    Simple and fast commissioning

    Wide range for control supply and main voltage

    Low variance, high system availability even with weak supply networks

    Технические данные

    More information

    Technical specifications, see

    FAQs, see

    Equipment Manual, see

    Simulation Tool for Soft Starters (STS), see

    Type

    3RW5213

    3RW5214

    3RW5215

    3RW5216

    3RW5217

    Rated operational current Ie

    A

    13

    18

    25

    32

    38

    Power electronics

    Load rating rated operational current Ie

    IEC + UL/CSA individual mounting at 40/50/60 °C, AC‑53a

    A

    13/11.5/10.5

    18/15.9/13.8

    25/22.3/19.6

    32/28.4/26

    38/33.5/30.5

    Permissible rated motor current and starts/h

    Normal starting (CLASS 10A)

    Rated motor current IM; Tu = 40/50/60 °C
    ON period = 70%; motor protection activated

    A

    13/11.5/10.5

    18/15.9/13.8

    25/22.3/19.6

    32/28.4/26

    38/33.5/30.5
    • 300% IM
    • Start-up time 5 s

    1/h

    43

    43

    43

    43

    43
    • Start-up time 10 s

    1/h

    18

    18

    18

    18

    18
    • 350% IM
    • Start-up time 5 s

    1/h

    28

    28

    28

    28

    28
    • Start-up time 10 s

    1/h

    10

    10

    10

    10

    10

    Normal starting (CLASS 10E)

    Rated motor current IM; Tu = 40/50/60 °C
    ON period = 70%; motor protection activated

    A

    13/11.5/10.5

    18/15.9/13.8

    25/22.3/19.6

    32/28.4/26

    38/33.5/30.5
    • 300% IM
    • Start-up time 10 s

    1/h

    21

    21

    21

    21

    21
    • Start-up time 20 s

    1/h

    8

    8

    8

    8

    8
    • 350% IM
    • Start-up time 10 s

    1/h

    13

    13

    13

    13

    13
    • Start-up time 20 s

    1/h

    4

    4

    4

    4

    4

    Heavy starting (CLASS 20E)

    Rated motor current IM; Tu = 40/50/60 °C
    ON period = 70%; motor protection activated

    A

    13/11.5/10.5

    18/15.9/13.8

    25/22.3/19.6

    29.6/27.2/23.6

    33.5/30.5/27.5
    • 300% IM
    • Start-up time 20 s

    1/h

    10

    10

    10

    10

    10
    • Start-up time 40 s

    1/h

    4

    4

    4

    4

    4
    • 350% IM
    • Start-up time 20 s

    1/h

    7

    7

    7

    7

    7
    • Start-up time 40 s

    1/h

    2.5

    2.5

    2.5

    2.5

    2.5

    Adjustable rated motor current IM
    • Minimum/maximum

    A

    5.5/13

    7.5/18

    11.5/25

    14/32

    15.5/38
    • Minimum/maximum in inside-delta circuits

    A

    9.5/22.5

    13/31.2

    19.9/43.3

    24.2/55.4

    26.8/65.8

    Type

    3RW5224

    3RW5225

    3RW5226

    3RW5227

    Rated operational current Ie

    A

    47

    63

    77

    93

    Power electronics

    Load rating rated operational current Ie

    IEC + UL/CSA individual mounting at 40/50/60 °C, AC‑53a

    A

    47/41.6/36.2

    63/55.5/50.5

    77/68/62

    93/82.5/75.5

    Permissible rated motor current and starts/h

    Normal starting (CLASS 10A)

    Rated motor current IM; Tu = 40/50/60 °C
    ON period = 70%; motor protection activated

    A

    47/41.6/36.2

    63/55.5/50.5

    77/68/62

    93/82.5/75.5
    • 300% IM
    • Start-up time 5 s

    1/h

    43

    43

    43

    43
    • Start-up time 10 s

    1/h

    18

    18

    18

    18
    • 350% IM
    • Start-up time 5 s

    1/h

    28

    28

    28

    28
    • Start-up time 10 s

    1/h

    10

    10

    10

    10

    Normal starting (CLASS 10E)

    Rated motor current IM; Tu = 40/50/60 °C
    ON period = 70%; motor protection activated

    A

    47/41.6/36.2

    63/55.5/50.5

    77/68/62

    93/82.5/75.5
    • 300% IM
    • Start-up time 10 s

    1/h

    21

    21

    21

    21
    • Start-up time 20 s

    1/h

    8

    8

    8

    8
    • 350% IM
    • Start-up time 10 s

    1/h

    13

    13

    13

    13
    • Start-up time 20 s

    1/h

    4

    4

    4

    4

    Heavy starting (CLASS 20E)

    Rated motor current IM; Tu = 40/50/60 °C
    ON period = 70%; motor protection activated

    A

    47/41.6/36.2

    63/55.5/50.5

    65/59/53

    93/82.5/75.5
    • 300% IM
    • Start-up time 20 s

    1/h

    10

    10

    10

    10
    • Start-up time 40 s

    1/h

    4

    3

    4

    4
    • 350% IM
    • Start-up time 20 s

    1/h

    7

    4

    7

    7
    • Start-up time 40 s

    1/h

    2

    0

    2.5

    2.5

    Adjustable rated motor current IM
    • Minimum/maximum

    A

    20/47

    25.5/63

    32/77

    40.5/93
    • Minimum/maximum in inside-delta circuits

    A

    34.6/81.4

    44.2/109

    55.4/133

    70.1/161

    Type

    3RW5234

    3RW5235

    3RW5236

    Rated operational current Ie

    A

    113

    143

    171

    Power electronics

    Load rating rated operational current Ie

    IEC + UL/CSA individual mounting at 40/50/60 °C, AC‑53a

    A

    113/101/89

    143/128/118

    171/153/141

    Permissible rated motor current and starts/h

    Normal starting (CLASS 10A)

    Rated motor current IM; Tu = 40/50/60 °C
    ON period = 70%; motor protection activated

    A

    113/101/89

    143/128/118

    171/153/141
    • 300% IM
    • Start-up time 5 s

    1/h

    43

    43

    43
    • Start-up time 10 s

    1/h

    18

    18

    18
    • 350% IM
    • Start-up time 5 s

    1/h

    28

    27

    20
    • Start-up time 10 s

    1/h

    10

    8

    4

    Normal starting (CLASS 10E)

    Rated motor current IM; Tu = 40/50/60 °C
    ON period = 70%; motor protection activated

    A

    113/101/89

    139/127/116

    158/146/129
    • 300% IM
    • Start-up time 10 s

    1/h

    21

    21

    21
    • Start-up time 20 s

    1/h

    8

    8

    8
    • 350% IM
    • Start-up time 10 s

    1/h

    13

    12

    12
    • Start-up time 20 s

    1/h

    4

    1

    1

    Heavy starting (CLASS 20E)

    Rated motor current IM; Tu = 40/50/60 °C
    ON period = 70%; motor protection activated

    A

    109/97/85

    113/103/93

    129/117/105
    • 300% IM
    • Start-up time 20 s

    1/h

    10

    10

    10
    • Start-up time 40 s

    1/h

    4

    4

    4
    • 350% IM
    • Start-up time 20 s

    1/h

    7

    7

    7
    • Start-up time 40 s

    1/h

    2.5

    2.5

    2.5

    Adjustable rated motor current IM
    • Minimum/maximum

    A

    53/113

    68/143

    81/171
    • Minimum/maximum in inside-delta circuits

    A

    91.8/195

    118/248

    140/296

    Type

    3RW5243

    3RW5244

    3RW5245

    3RW5246

    3RW5247

    3RW5248

    Rated operational current Ie

    A

    210

    250

    315

    370

    470

    570

    Power electronics

    Load rating rated operational current Ie

    IEC + UL/CSA individual mounting at 40/50/60 °C, AC‑53a

    A

    210/186/170

    250/220/200

    315/279/255

    370/328/300

    470/416/380

    570/504/460

    Permissible rated motor current and starts/h

    Normal starting (CLASS 10A)

    Rated motor current IM; Tu = 40/50/60 °C
    ON period = 70%; motor protection activated

    A

    210/186/170

    250/220/200

    315/279/255

    370/328/300

    470/416/380

    570/504/460
    • 300% IM
    • Start-up time 5 s

    1/h

    43

    43

    43

    43

    30

    20
    • Start-up time 10 s

    1/h

    18

    18

    14

    18

    11

    6
    • 350% IM
    • Start-up time 5 s

    1/h

    28

    28

    16

    28

    17

    9
    • Start-up time 10 s

    1/h

    5

    10

    4

    10

    5

    1

    Normal starting (CLASS 10E)

    Rated motor current IM; Tu = 40/50/60 °C
    ON period = 70%; motor protection activated

    A

    197/184/170

    250/220/200

    279/255/231

    370/328/300

    398/362/326

    460/416/372
    • 300% IM
    • Start-up time 10 s

    1/h

    21

    21

    21

    21

    21

    18
    • Start-up time 20 s

    1/h

    8

    8

    8

    8

    8

    7
    • 350% IM
    • Start-up time 10 s

    1/h

    12

    13

    12

    13

    13

    11
    • Start-up time 20 s

    1/h

    1

    4

    3

    4

    4

    2

    Heavy starting (CLASS 20E)

    Rated motor current IM; Tu = 40/50/60 °C
    ON period = 70%; motor protection activated

    A

    162/146/130

    200/180/160

    195/171/147

    258/230/202

    272/236/218

    284/262/240
    • 300% IM
    • Start-up time 20 s

    1/h

    10

    10

    10

    10

    10

    10
    • Start-up time 40 s

    1/h

    4

    4

    4

    4

    4

    4
    • 350% IM
    • Start-up time 20 s

    1/h

    7

    7

    7

    7

    7

    7
    • Start-up time 40 s

    1/h

    2.5

    2.5

    2.5

    2.5

    2.5

    2.5

    Adjustable rated motor current IM
    • Minimum/maximum

    A

    90/210

    100/250

    135/315

    160/370

    200/470

    240/570
    • Minimum/maximum in inside-delta circuits

    A

    156/364

    173/433

    234/546

    277/641

    346/814

    416/987

    Motor feeders according to IEC with 3RV2 motor starter protectors or 3VA circuit breakers (without semiconductor protection)

    Type of coordination "1", CLASS 10,
    short-circuit breaking capacity Iq in kA, see table

    Note:

    For general recommendations on the setup of motor feeders with soft starters, see SIRIUS 3RW soft starters → Overview → Motor feeders with soft starters.

    Soft starters

    Motor starter protectors

    Motor starter protectors

    for 400 V systems

    for 500 V systems

    for 400 V systems

    for 500 V systems

    Q11

    Q1

    Iq

    Q1

    Iq

    Q1

    Iq

    Q1

    Iq

    Type

    Type

    kA

    Type

    kA

    Type

    kA

    Type

    kA

    Type of coordination "1"

    Standard (inline) circuit

    Inside-delta circuit

    3RW5213

    3RV2032-4TA10

    65

    3RV2032-4TA10

    18

    3RV2032-4DA10

    65

    3RV2032-4DA10

    18

    3RW5214

    3RV2032-4DA10

    65

    3RV2032-4DA10

    15

    3RV2032-4EA10

    65

    3RV2032-4EA10

    15

    3RW5215

    3RV2032-4EA10

    65

    3RV2032-4EA10

    15

    3RV2032-4VA10

    65

    3RV2032-4VA10

    15

    3RW5216

    3RV2032-4VA10

    65

    3RV2032-4VA10

    10

    3RV2032-4JA10

    65

    3RV2032-4JA10

    10

    3RW5217

    3RV2032-4WA10

    65

    3RV2032-4WA10

    10

    3RV2032-4RA10

    65

    3RV2032-4RA10

    10

    3RW5224

    3RV2032-4JA10

    65

    3RV2032-4JA10

    10

    3RV2032-4RA10

    65

    3RV2032-4RA10

    10

    3RW5225

    3VA2163-7MN32-0AA0

    65

    3VA2163-7MN32-0AA0

    20

    3VA2110-7MN32-0AA0

    65

    3VA2110-7MN32-0AA0

    20

    3RW5226

    3VA2110-7MN32-0AA0

    65

    3VA2110-7MN32-0AA0

    20

    3VA2216-7MN32-0AA0

    65

    3VA2216-7MN32-0AA0

    20

    3RW5227

    3VA2216-7MN32-0AA0

    15

    3VA2216-7MN32-0AA0

    10

    3VA2220-7MN32-0AA0

    15

    3VA2220-7MN32-0AA0

    10

    3RW5234

    3VA2216-7MN32-0AA0

    65

    --

    --

    3VA2220-7MN32-0AA0

    65

    --

    --

    3RW5235

    3VA2220-7MN32-0AA0

    65

    --

    --

    3VA2325-7MN32-0AA0

    65

    --

    --

    3RW5236

    3VA2325-7MN32-0AA0

    30

    3VA2325-7MN32-0AA0

    10

    3VA2440-7MN32-0AA0

    30

    3VA2440-7MN32-0AA0

    10

    3RW5243

    3VA2325-7MN32-0AA0

    65

    3VA2325-7MN32-0AA0

    65

    3VA2440-7MN32-0AA0

    65

    3VA2440-7MN32-0AA0

    65

    3RW5244

    3VA2440-7MN32-0AA0

    65

    3VA2440-7MN32-0AA0

    65

    3VA2450-7MN32-0AA0

    65

    3VA2450-7MN32-0AA0

    65

    3RW5245

    3VA2440-7MN32-0AA0

    65

    3VA2440-7MN32-0AA0

    65

    3VA2580-6HN32-0AA0

    65

    3VA2580-6HN32-0AA0

    65

    3RW5246

    3VA2440-7MN32-0AA0

    65

    3VA2440-7MN32-0AA0

    65

    3VA2580-6HN32-0AA0

    65

    3VA2580-6HN32-0AA0

    65

    3RW5247

    3VA2450-7MN32-0AA0

    65

    3VA2450-7MN32-0AA0

    65

    3VA2510-6HN32-0AA0

    65

    3VA2510-6HN32-0AA0

    65

    3RW5248

    3VA2580-6HN32-0AA0

    65

    3VA2580-6HN32-0AA0

    65

    3VA2510-6HN32-0AA0

    65

    3VA2510-6HN32-0AA0

    65

    Note:

    The service factor or measurement inaccuracies have been taken into account, for example, for the selection of the specified motor starter protectors/circuit breakers; the specified short-circuit breaking capacities Iq in kA are covered by combination tests. Smaller motor starter protectors/circuit breakers from the same series can be used at any time as smaller ones trip more quickly in the event of a short circuit (unchanged short-circuit breaking capacity) and thus protect the soft starter in any case. The dimensioning of the short-circuit components must match the connected three-phase motor, the short-circuit and overload requirements of the application, and the line protection for the cables used.

    Motor feeders according to IEC with 3NA3 fuses

    gG class full-range fuses for cable and line protection
    according to IEC 60269‑2, without semiconductor protection

    Type of coordination "1", short-circuit breaking capacity Iq = 65 kA

    Note:

    For general recommendations on the setup of motor feeders with soft starters, see SIRIUS 3RW soft starters → Overview → Motor feeders with soft starters.

    Soft starters

    gG class fuse

    Line contactor (optional)

    gG class fuse

    Line contactor (optional)

    for systems
    up to 600 V

    for systems
    up to 480 V

    for systems
    up to 600 V

    for systems
    up to 600 V

    for systems
    up to 480 V
    in the supply cable

    for systems
    up to 600 V
    in the supply cable

    for systems
    up to 480 V
    in the delta

    for systems
    up to 600 V
    in the delta

    Q11

    F1

    Q21

    Q21

    F1

    Q21

    Q21

    Q21

    Q21

    Type

    Type

    Type

    Type

    Type

    Type

    Type

    Type

    Type

    Type of coordination "1"

    Standard (inline) circuit

    Inside-delta circuit

    3RW5213

    3NA3820-6

    3RT2025

    3RT2025

    3NA3820-6

    3RT2027

    3RT2035

    3RT2025

    3RT2025

    3RW5214

    3NA3820-6

    3RT2026

    3RT2027

    3NA3820-6

    3RT2027

    3RT2037

    3RT2026

    3RT2027

    3RW5215

    3NA3822-6

    3RT2027

    3RT2037

    3NA3822-6

    3RT2036

    3RT2037

    3RT2027

    3RT2037

    3RW5216

    3NA3824-6

    3RT2035

    3RT2037

    3NA3824-6

    3RT2037

    3RT2038

    3RT2035

    3RT2037

    3RW5217

    3NA3824-6

    3RT2035

    3RT2037

    3NA3824-6

    3RT2038

    3RT2046

    3RT2035

    3RT2037

    3RW5224

    3NA3824-6

    3RT2036

    3RT2037

    3NA3824-6

    3RT2046

    3RT2047

    3RT2036

    3RT2037

    3RW5225

    3NA3830-6

    3RT2037

    3RT2046

    3NA3830-6

    3RT2047

    3RT1054

    3RT2037

    3RT2046

    3RW5226

    3NA3132-6

    3RT2038

    3RT2046

    3NA3132-6

    3RT1055

    3RT1055

    3RT2038

    3RT2046

    3RW5227

    3NA3136-6

    3RT2046

    3RT2047

    3NA3136-6

    3RT1056

    3RT1056

    3RT2046

    3RT2047

    3RW5234

    3NA3244-6

    3RT1054

    3RT1054

    3NA3244-6

    3RT1064

    3RT1064

    3RT1054

    3RT1054

    3RW5235

    3NA3244-6

    3RT1055

    3RT1055

    3NA3244-6

    3RT1065

    3RT1065

    3RT1055

    3RT1055

    3RW5236

    3NA3365-6

    3RT1056

    3RT1064

    3NA3365-6

    3RT1066

    3RT1075

    3RT1056

    3RT1064

    3RW5243

    2 x 3NA3354-6

    3RT1064

    3RT1064

    2 x 3NA3354-6

    3RT1075

    3RT1075

    3RT1064

    3RT1064

    3RW5244

    2 x 3NA3354-6

    3RT1065

    3RT1065

    2 x 3NA3354-6

    3RT1076

    3RT1076

    3RT1065

    3RT1065

    3RW5245

    2 x 3NA3365-6

    3RT1075

    3RT1075

    2 x 3NA3365-6

    3TF68

    3TF68

    3RT1075

    3RT1075

    3RW5246

    2 x 3NA3365-6

    3RT1075

    3RT1075

    2 x 3NA3365-6

    3TF69

    3TF69

    3RT1075

    3RT1075

    3RW5247

    2 x 3NA3365-6

    3RT1076

    3RT1276

    2 x 3NA3365-6

    3TF69

    3TF69

    3RT1076

    3RT1276

    3RW5248

    2 x 3NA3365-6

    3TF68

    3TF68

    2 x 3NA3365-6

    --

    --

    3TF68

    3TF68

    Note:

    The specified short-circuit breaking capacities Iq in kA are covered by combination tests. Smaller fuses than those specified can be used at any time as smaller ones trip more quickly in the event of a short circuit (unchanged short-circuit breaking capacity) and thus protect the soft starter in any case. The dimensioning of the short-circuit components must, however, be suitable for the connected three-phase motor and the line protection for the cables used.

    Motor feeders according to IEC with 3NE1 SITOR fuses

    gR/gS class full-range fuses for semiconductor protection,
    cable and line protection (gS)

    Type of coordination "2",
    short-circuit breaking capacity Iq = 65 kA

    Note:

    For general recommendations on the setup of motor feeders with soft starters, see SIRIUS 3RW soft starters → Overview → Motor feeders with soft starters.

    Soft starters

    gR/gS class fuse

    Line contactor (optional)

    for systems
    up to 600 V

    for systems
    up to 480 V

    for systems
    up to 600 V

    Q11

    F'1

    Q21

    Q21

    Type

    Type

    Type

    Type

    Type of coordination "2"

    Standard (inline) circuit

    3RW5213

    3NE1815-0

    3RT2025

    3RT2025

    3RW5214

    3NE1802-0

    3RT2026

    3RT2027

    3RW5215

    3NE1817-0

    3RT2027

    3RT2037

    3RW5216

    3NE1818-0

    3RT2035

    3RT2037

    3RW5217

    3NE1820-0

    3RT2035

    3RT2037

    3RW5224

    3NE1021-2

    3RT2036

    3RT2037

    3RW5225

    3NE1022-0

    3RT2037

    3RT2046

    3RW5226

    3NE1224-0

    3RT2038

    3RT2046

    3RW5227

    3NE1224-0

    3RT2046

    3RT2047

    3RW5234

    3NE1225-0

    3RT1054

    3RT1054

    3RW5235

    3NE1227-0

    3RT1055

    3RT1055

    3RW5236

    3NE1230-0

    3RT1056

    3RT1064

    3RW5243

    3NE1230-21)

    3RT1064

    3RT1064

    3RW5244

    3NE1331-0

    3RT1065

    3RT1065

    3RW5245

    3NE1334-2

    3RT1075

    3RT1075

    3RW5246

    3NE1334-2

    3RT1075

    3RT1075

    3RW5247

    3NE1436-2

    3RT1076

    3RT1276

    3RW5248

    3NE1437-2

    3TF68

    3TF68

    1) Only for systems up to 500 V.

    Note:

    The specified short-circuit breaking capacities Iq in kA are covered by combination tests. Smaller fuses than those specified can be used at any time as smaller ones trip more quickly in the event of a short circuit (unchanged short-circuit breaking capacity) and thus protect the soft starter in any case. The dimensioning of the short-circuit components must, however, be suitable for the connected three-phase motor and the line protection for the cables used.

    In inside-delta circuits, a gR/gS class full-range fuse could not provide the semiconductor protection of the delta-connected soft starter with a short-circuit breaking capacity that is adequate for practical use. In this case, we recommend using aR class partial-range fuses for semiconductor protection for type of coordination "2", see next table.

    Motor feeders according to IEC with 3NE8/3NE4/3NE3 fuses

    aR class partial-range fuses for semiconductor protection

    Type of coordination "2",
    short-circuit breaking capacity Iq = 65 kA

    Note:

    For general recommendations on the setup of motor feeders with soft starters, see SIRIUS 3RW soft starters → Overview → Motor feeders with soft starters.

    Soft starters

    gG class fuse

    aR class fuse

    Line contactor (optional)

    gG class fuse

    aR class fuse

    Line contactor (optional)

    for systems
    up to 600 V

    for systems
    up to 500 V

    for systems
    up to 480 V

    for systems
    up to 600 V

    for systems
    up to 600 V

    for systems
    up to 600 V

    for systems
    up to 480 V
    in the supply cable

    for systems
    up to 600 V
    in the supply cable

    for systems
    up to 480 V
    in the delta

    for systems
    up to 600 V
    in the delta

    Q11

    F1

    F3

    Q21

    Q21

    F1

    F3

    Q21

    Q21

    Q21

    Q21

    Type

    Type

    Type

    Type

    Type

    Type

    Type

    Type

    Type

    Type

    Type

    Type of coordination "2"

    Standard (inline) circuit

    Inside-delta circuit

    3RW5213

    3NA3820-6

    3NE8017-1

    3RT2025

    3RT2025

    3NA3820-6

    3NE8017-1

    3RT2027

    3RT2035

    3RT2025

    3RT2025

    3RW5214

    3NA3820-6

    3NE8020-1

    3RT2026

    3RT2027

    3NA3820-6

    3NE8020-1

    3RT2027

    3RT2037

    3RT2026

    3RT2027

    3RW5215

    3NA3822-6

    3NE8021-1

    3RT2027

    3RT2037

    3NA3822-6

    3NE8021-1

    3RT2036

    3RT2037

    3RT2027

    3RT2037

    3RW5216

    3NA3824-6

    3NE8022-1

    3RT2035

    3RT2037

    3NA3824-6

    3NE8022-1

    3RT2037

    3RT2038

    3RT2035

    3RT2037

    3RW5217

    3NA3824-6

    3NE8024-1

    3RT2035

    3RT2037

    3NA3824-6

    3NE8024-1

    3RT2038

    3RT2046

    3RT2035

    3RT2037

    3RW5224

    3NA3824-6

    3NE8024-1

    3RT2036

    3RT2037

    3NA3824-6

    3NE8024-1

    3RT2046

    3RT2047

    3RT2036

    3RT2037

    3RW5225

    3NA3830-6

    3NE8024-1

    3RT2037

    3RT2046

    3NA3830-6

    3NE8024-1

    3RT2047

    3RT1054

    3RT2037

    3RT2046

    3RW5226

    3NA3132-6

    3NE8024-1

    3RT2038

    3RT2046

    3NA3132-6

    3NE8024-1

    3RT1055

    3RT1055

    3RT2038

    3RT2046

    3RW5227

    3NA3136-6

    3NE4124

    3RT2046

    3RT2047

    3NA3136-6

    3NE4124

    3RT1056

    3RT1056

    3RT2046

    3RT2047

    3RW5234

    3NA3244-6

    3NE3332-0B

    3RT1054

    3RT1054

    3NA3244-6

    3NE3332-0B

    3RT1064

    3RT1064

    3RT1054

    3RT1054

    3RW5235

    3NA3244-6

    3NE3334-0B

    3RT1055

    3RT1055

    3NA3244-6

    3NE3334-0B

    3RT1065

    3RT1065

    3RT1055

    3RT1055

    3RW5236

    3NA3365-6

    3NE3335

    3RT1056

    3RT1064

    3NA3365-6

    3NE3335

    3RT1066

    3RT1075

    3RT1056

    3RT1064

    3RW5243

    2 x 3NA3354-6

    3NE3333

    3RT1064

    3RT1064

    2 x 3NA3354-6

    3NE3333

    3RT1075

    3RT1075

    3RT1064

    3RT1064

    3RW5244

    2 x 3NA3354-6

    3NE3336

    3RT1065

    3RT1065

    2 x 3NA3354-6

    3NE3336

    3RT1076

    3RT1076

    3RT1065

    3RT1065

    3RW5245

    2 x 3NA3365-6

    3NE3336

    3RT1075

    3RT1075

    2 x 3NA3365-6

    3NE3336

    3TF68

    3TF68

    3RT1075

    3RT1075

    3RW5246

    2 x 3NA3365-6

    3NE3336

    3RT1075

    3RT1075

    2 x 3NA3365-6

    3NE3336

    3TF69

    3TF69

    3RT1075

    3RT1075

    3RW5247

    2 x 3NA3365-6

    3NE3340-8

    3RT1076

    3RT1276

    2 x 3NA3365-6

    3NE3340-8

    3TF69

    3TF69

    3RT1076

    3RT1276

    3RW5248

    2 x 3NA3365-6

    3NE3340-8

    3TF68

    3TF68

    2 x 3NA3365-6

    3NE3340-8

    --

    --

    3TF68

    3TF68

    Note:

    The specified short-circuit breaking capacities Iq in kA are covered by combination tests. Smaller fuses than those specified can be used at any time as smaller ones trip more quickly in the event of a short circuit (unchanged short-circuit breaking capacity) and thus protect the soft starter in any case. The dimensioning of the short-circuit components must, however, be suitable for the connected three-phase motor and the line protection for the cables used.

    For CLASS 10 applications, as an alternative to the gG class full-range fuses for cable and line protection 3NA3 (F1), 3RV2 motor starter protectors or 3VA circuit breakers can also be used, possibly with reduced short-circuit breaking capacity, see Table "Motor feeders according to IEC with 3RV2 motor starter protectors or 3VA circuit breakers (without semiconductor protection)". In these cases, optional line contactors can be dispensed with.

    Article number

    3RW5213
    3RW5214
    3RW5215

    3RW5216
    3RW5217

    3RW5224
    3RW5225

    3RW5226
    3RW5227
    3RW5234
    3RW5235
    3RW5236

    3RW5243
    3RW5244
    3RW5245
    3RW5246
    3RW5247
    3RW5248

    Installation/ mounting/ dimensions

    Width x Height x Depth
    post

    mm

    170 × 275 × 152

    185 × 306 × 203

    210 × 393 × 203

    fastening method

    screw fixing

    mounting position

    +/- 10° rotation possible and can be tilted forward or backward on vertical mounting surface

    with vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back

    +/- 10° rotation possible and can be tilted forward or backward on vertical mounting surface

    with vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back

    required spacing with side-by-side mounting

    • ● upwards

    mm

    100

    • ● at the side

    mm

    5

    • ● downwards

    mm

    75

    installation altitude at height above sea level maximum 1)

    m

    5 000

    protection class IP on the front according to IEC 60529

    IP20

    IP00; IP20 with cover

    touch protection on the front according to IEC 60529

    finger-safe, for vertical contact from the front

    finger-safe, for vertical contact from the front with cover

    Ambient conditions

    ambient temperature

    • ● during operation 2)

    °C

    -25 ... +60

    • ● during storage and transport

    °C

    -40 ... +80

    environmental category according to IEC 60721

    • ● during operation

    3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

    • ● during storage

    1K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4

    • ● during transport

    2K2, 2C1, 2S1, 2M2 (max. fall height 0.3 m)
    1) Derating as of 1000 m, see catalog
    2) Please observe derating at temperatures of 40 °C or above

    Article number

    3RW52..-..C0.

    3RW52..-..C1.

    Control circuit/ Control

    control supply voltage

    • ● at AC/DC

    V

    24/24

    --/--

    • ● at AC

    --

    110 ... 250

    Relative negative tolerance/Relative positive tolerance at AC

    %

    -20/20

    -15/10

    Relative negative tolerance/Relative positive tolerance at DC

    %

    -20/20

    --/--

    control supply voltage frequency

    Hz

    50 ... 60

    • ● Relative negative tolerance/Relative positive tolerance

    %

    -10/10

    design of the overvoltage protection

    Varistor

    design of short-circuit protection for control circuit 1)

    4 A gG fuse (Icu=1 kA), 6 A quick-acting fuse (Icu=1 kA), C1 miniature circuit breaker (Icu= 600 A), C6 miniature circuit breaker (Icu= 300 A)
    1) Is not part of scope of supply

    Article number

    3RW521.-..C.4
    3RW524.-..C.4

    3RW522.-..C.4
    3RW523.-..C.4

    3RW521.-..C.5
    3RW524.-..C.5

    3RW522.-..C.5
    3RW523.-..C.5

    Power Electronics

    operating voltage

    V

    200 ... 480

    200 ... 600

    • ● Relative negative tolerance/Relative positive tolerance

    %

    -15/10

    operating voltage at inside-delta circuit

    V

    200 ... 480

    200 ... 600

    • ● Relative negative tolerance/Relative positive tolerance

    %

    -15/10

    Operating frequency

    Hz

    50 ... 60

    • ● Relative negative tolerance/Relative positive tolerance

    %

    -10/10

    blocking voltage of the thyristor maximum

    V

    1 600

    1 400

    1 600

    1 800

    minimum load [%] 1)

    %

    15

    wire length between soft starter and motor maximum

    m

    800
    1) Relative to smallest settable Ie

    Ответственный редактор / Инженер

    Директор «Би Энд Би Инжиниринг»
    «Описание оборудования на этой странице составлено на основе нашего 10-летнего опыта работы в сфере пневматического оборудования, запорной арматуры и промышленной автоматизации. Если у вас есть вопросы или комментарии — напишите мне лично».
