Обзор

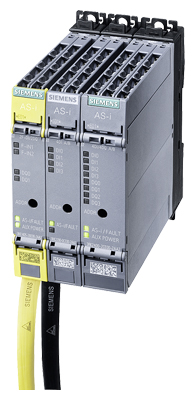

SC17.5F, SC17.5 and SC22.5 SlimLine Compact modules

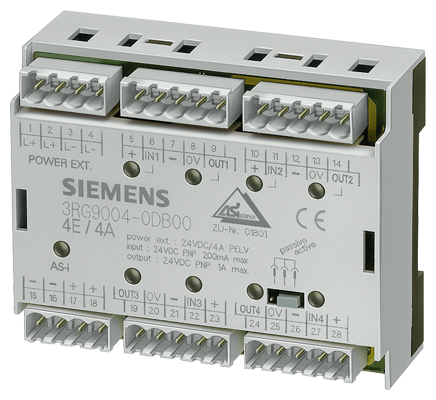

F90 module

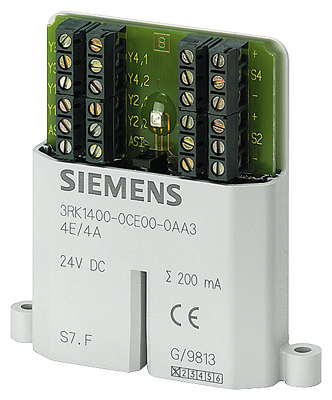

Flat module
For AS‑Interface applications inside control cabinets, there are various module series for the most diverse requirements:
- SlimLine Compact – particularly slim design ideal for space-saving use in the control cabinet
- F90 module – particularly flat design for flat control boxes
- Flat module – special design for integration into customer-specific solutions
The existing SlimLine series of modules S22.5 and S45 are being replaced by the innovative new devices in the SlimLine Compact SC17.5, SC17.5F and SC22.5 series. The previous SlimLine modules are still available as replacements for existing systems.
Available versions
The following table provides an overview of the key features of the different series of control cabinet modules.
Feature |
SlimLine Compact |
F90 module |
Flat module |
|---|---|---|---|
Digital I/O |
✓ |
✓ |
✓ |
Analog I/O |
✓ |
-- |
-- |
Safe inputs |
✓ |
-- |
-- |
Relay outputs |
✓ |
-- |
-- |
Addressing type A/B address |
✓ |
-- |
-- |
Mounting on TH 35 DIN rail according to IEC 60715 |
✓ |
✓ |
-- |
Wall mounting using push-in lugs |
✓ |
-- |
-- |
Integrated lugs for screw fixing |
-- |
-- |
✓ |
Width in mm |
17.5 or 22.5 |
90 |
80 |
✓ Available
-- Not available
