The flat power supply unit for distribution boards
Small. Clever. LOGO!Power: Thanks to its stepped profile design, the LOGO! 8 product line is ideally suited for installation in small distribution boards. The 12 V and 24 V versions are ideal for supplying LOGO! controllers with the corresponding voltage input. The high level of efficiency across the entire load range as well as the low no-load losses result in lower overall energy consumption. Greater convenience when commissioning and servicing thanks to the integrated current monitor. The extended ambient temperature range from -25 °C to +70 °C enables a host of additional applications.
To further increase 24 V availability, the 24 V LOGO!Power power supply units can be combined with the BUF1200 buffer module, DC UPS, redundancy and selectivity modules.
This powerhouse can be used in any industry: e.g. in building technology applications for light and heating controllers or for access control systems. LOGO!Power is also well-suited for use in industrial automation, such as in packaging machine, machine tool, conveyor belt or sorting system applications.
Product highlights of the product line
- Low width

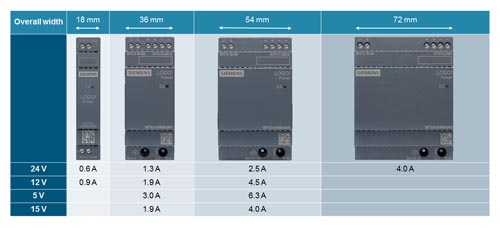

with minimum of 18 mm to maximum of 72 mm, thus requiring very little space in the control cabinet or distribution board - High energy efficiency
with efficiency levels of up to 90% over the entire performance range and ERP-compliant no-load losses of < 0.3 W - Global use
due to operating temperature range from -25 °C to +70 °C and international certificates - Supply
of NEC Class 2 electric circuits with limited output current (100 VA) - Load monitoring via current monitor
using real-time measurement of the output current without disconnecting the cable, i.e. without interrupting the DC supply - Flexible mounting
with top hat DIN rail or wall mounting in different installation positions - Flexible operation
in all standard 1-phase supply networks thanks to wide-range input of 100 … 240 V AC without switchover and operation on DC networks with 110 … 300 V DC - Reliability
due to problem-free connection of loads with high inrush currents thanks to power reserve during startup as well as constant current in the event of overload
Дальнейшая информация
Select the appropriate power supply quickly and easily with the TIA Selection Tool:
