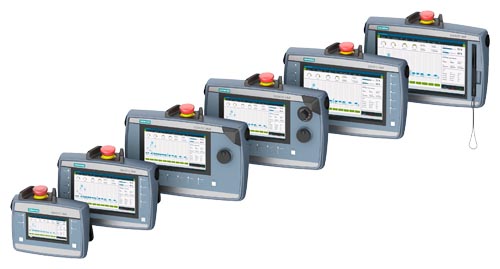

    • Mobile Panels 2nd Generation

    Категории
    Последнее обновление цен: 19 августа 2026

    Обзор

    • SIMATIC HMI KTP700F Mobile HW
    • SIMATIC HMI KTP700F Mobile HW/OR
    • SIMATIC HMI TP1000F Mobile
    • SIMATIC HMI KTP400F Mobile
    • SIMATIC HMI KTP700 Mobile
    • SIMATIC HMI KTP700F Mobile
    • SIMATIC HMI KTP900 Mobile
    • SIMATIC HMI KTP900F Mobile

    Особенности

    Brilliant wide-screen display

    The display, with its aspect ratio of 16:9, delivers an extremely sharp, bright and detailed image and can use its 16 million colors and around 40% larger display area to depict even the most complex operating screens and graphics. The display is 100% dimmable and can thus be adapted to suit different surroundings.

    Unique safety solution

    The device versions with an emergency stop/stop pushbutton on the top and an acknowledgment button on the back of the device permit a flexible configuration of the safety solution.
    The emergency stop button is only active and illuminated in red when the device is connected to a safety circuit via the connection box.
    The new devices support the evaluation of the safety elements via hard-wired safety relays (e.g. SIRIUS 3SK1) and via PROFIsafe with fail-safe controllers (such as SIMATIC S7-1500F).

    Innovative service and commissioning concept

    Reduction of service and commissioning costs due to:

    • Short configuring and commissioning times through efficient engineering and fast project downloading
    • Automatic backup via optional SIMATIC HMI memory card
    • Long service life of the backlit display
    • Maintenance-free design

    Rugged industrial design

    • Dust-proof and jet-proof enclosure with IP65 degree of protection on all sides
    • Extremely impact-resistant device with a safe drop height of 1.2 meters
    • Resistant to operating substances

    Efficient engineering

    The second generation of Mobile Panels has the same aspect ratio and resolution as the Comfort Panels. Using the TIA Portal (WinCC) engineering tool with the innovative new Style Editor, it is now possible to configure operating screens for both stationary and mobile applications. Users only need to select the new Mobile Panel in the TIA Portal configuration. The configuration can then be supplemented with specific functions for mobile use.

    Область применения

    Regardless of the industry or application, if mobility is required for the on-site control and monitoring of machines and plants, SIMATIC HMI Mobile Panels offer some crucial advantages: The machine operators or commissioning engineers are able to work exactly where they have the best view of the workpiece or process.

    Even for larger production facilities, complex or enclosed machines, long materials handling or production lines and conveyor systems, mobile operator panels allow fast and precise setting up and positioning during commissioning. They also ensure shorter downtimes during retooling, maintenance or repairs.

    Дизайн

    KTP400F Mobile

    • Dimmable 4.0" widescreen TFT display, 480 x 272 resolution, 16 million colors
    • 1 Ethernet interface (TCP/IP, PROFINET)
    • 1 USB interface
    • Touch screen and 4 tactile function keys, including LEDs
    • 2 illuminated pushbuttons

    KTP700 Mobile

    • Dimmable 7.0" widescreen TFT display, 800 x 480 resolution, 16 million colors
    • 1 Ethernet interface (TCP/IP, PROFINET)
    • 1 USB interface
    • 1 SD card slot
    • Touch screen and 8 tactile function keys, including LEDs
    • 2 illuminated pushbuttons

    KTP700F Mobile

    • Dimmable 7.0" widescreen TFT display, 800 x 480 resolution, 16 million colors
    • 1 Ethernet interface (TCP/IP, PROFINET, PROFIsafe)
    • 1 USB interface
    • 1 SD card slot
    • Touch screen and 8 tactile function keys, including LEDs
    • 2 illuminated pushbuttons
    • 1 key-operated switch
    • 1 three-stage acknowledgment button
    • 1 emergency stop/stop button

    KTP900 Mobile

    • Dimmable 9.0" widescreen TFT display, 800 x 480 resolution, 16 million colors
    • 1 Ethernet interface (TCP/IP, PROFINET)
    • 1 USB interface
    • 1 SD card slot
    • Touch screen and 10 tactile function keys, including LEDs
    • 2 illuminated pushbuttons

    KTP900F Mobile

    • Dimmable 9.0" widescreen TFT display, 800 x 480 resolution, 16 million colors
    • 1 Ethernet interface (TCP/IP, PROFINET, PROFIsafe)
    • 1 USB interface
    • 1 SD card slot
    • Touch screen and 10 tactile function keys, including LEDs
    • 2 illuminated pushbuttons
    • 1 key-operated switch
    • 1 three-stage acknowledgment button
    • 1 emergency stop/stop button

    Функции

    Connection concept with integrated connection point detection

    The Mobile Panels enable you to operate the procedure directly on site. The connection concept supports you in setting up the plant.

    Three different types of connection box are available:

    • Connection Box, Compact
    • Connection Box, Standard
    • Connection Box, Advanced

    Detailed information on the connection boxes can be found under "System components for Mobile Panels -> Connection box for Mobile Panels of the 2nd Generation".

    A connection box can be mounted, for example, at any operator station. The operator inserts the Mobile Panel in the required connection box and can then operate it at this location. The cable length required between panel and connection box is between 2 and 25 meters. On completion of the task, the panel can be detached from the connection box and operation can be continued from another operator station. The operator panel contains a maintenance-free stored energy feature so that the operator can continue working after reconnecting, without the need for rebooting. The buffering time is up to 5 minutes.

    By setting an ID number in the connection box, the location of the Mobile Panel can be clearly identified. This enables location-specific functions to be initiated or programmed. For example, the appropriate operating screen for the operator station is then displayed automatically.

    Illuminated emergency stop/stop button

    The safety-oriented Mobile Panels have a unique illuminated emergency stop/stop button. This is configurable depending on the application and therefore has several advantages:

    • On the one hand, the pushbutton can be configured as a red/yellow emergency stop button and, on the other hand, as a gray stop button.
    • If the device is inactive, the illumination is switched off and the button is not recognizable as an emergency stop button.
    • In the inactive state, a device with a configured emergency stop button can be positioned immediately adjacent to the system and does not have to be kept locked as otherwise required by a work instruction.

    Evaluation of emergency stop/stop pushbutton and acknowledgment button

    The safety-related control elements, emergency stop/stop pushbutton and acknowledgment button can be evaluated by means of various options:

    • Software evaluation by means of PROFIsafe in conjunction with an F-PLC
    • Hardware evaluation by means of fixed wiring in the connection box via safety inputs of a PLC or safety relay

    Технические данные

    Article number

    6AV2145-8GB00-0AA0

    6AV2145-8GB01-0AA0

    6AV2145-6KB20-0AS0

    SIMATIC HMI KTP700F Mobile HW

    SIMATIC HMI KTP700F Mobile HW/OR

    SIMATIC HMI TP1000F MOBILE

    General information

    Product type designation

    KTP700F

    KTP700F

    TP1000F Mobile

    Display

    Design of display

    TFT widescreen display, LED backlighting

    TFT widescreen display, LED backlighting

    TFT widescreen display, LED backlighting

    Screen diagonal

    7 in

    7 in

    10.1 in

    Color display

    Yes

    Yes

    Yes

    Number of colors

    16 777 216

    16 777 216

    16 777 216

    Resolution (pixels)

    • ● Horizontal image resolution

    800 pixel

    800 pixel

    1 280 pixel

    • ● Vertical image resolution

    480 pixel

    480 pixel

    800 pixel

    Backlighting

    • ● MTBF backlighting (at 25 °C)

    50 000 h

    50 000 h

    50 000 h

    • ● Backlight dimmable

    Yes; 0-100 %

    Yes; 0-100 %

    Yes; 0-100 %

    Control elements

    Keyboard

    • ● Function keys

    • — Number of function keys

    6

    6

    0

    • — Number of function keys with LEDs

    6

    6

    0

    • ● Keys with LED

    Yes

    Yes

    No

    • ● Numeric keyboard

    Yes; Onscreen keyboard

    Yes; Onscreen keyboard

    Yes; Onscreen keyboard

    • ● alphanumeric keyboard

    Yes; Onscreen keyboard

    Yes; Onscreen keyboard

    Yes; Onscreen keyboard

    Touch operation

    • ● Design as touch screen

    Yes

    Yes

    Yes

    • ● Design as multi-touch screen

    No

    No

    No

    Special operator controls

    • ● Stop button (forced blocking)

    Yes

    Yes

    Yes

    • ● Emergency stop button (illuminated and forced blocking)

    Yes

    Yes

    Yes

    • ● Acknowledgement button (3-stage)

    Yes

    Yes

    Yes

    • ● Key-operated switch

    Yes

    Yes

    Yes

    • ● Illuminated pushbutton

    Yes

    Yes

    Yes

    • ● Handwheel

    Yes

    Yes

    No

    Camera

    • ● integrated camera

    No

    No

    No

    Expansions for operator control of the process

    • ● DP direct LEDs (LEDs as S7 output I/O)

    • — F1...Fx

    6

    6

    0

    • ● Direct keys (keys as S7 input I/O)

    • — F1...Fx

    6

    6

    0

    • ● Direct keys (touch buttons as S7 input I/O)

    32

    32

    0

    Supply voltage

    Type of supply voltage

    DC

    DC

    DC

    Rated value (DC)

    24 V

    24 V

    24 V

    permissible range, lower limit (DC)

    19.2 V

    19.2 V

    19.2 V

    permissible range, upper limit (DC)

    28.8 V

    28.8 V

    28.8 V

    Input current

    Current consumption (rated value)

    450 mA

    Starting current inrush I²t

    0.2 A²·s

    Power

    Active power input, typ.

    11 W

    Processor

    Processor type

    ARM

    Storage

    Flash

    Yes

    Yes

    Yes

    RAM

    Yes

    Yes

    Yes

    Memory available for user data

    12 Mbyte

    12 Mbyte

    12 Mbyte

    Type of output

    Power LED

    No

    No

    No

    LED for safe

    No

    No

    No

    LED for communication

    No

    No

    No

    LED for battery

    No

    No

    No

    Vibrations

    No

    No

    No

    Time of day

    Clock

    • ● Hardware clock (real-time)

    Yes

    Yes

    Yes

    • ● retentive

    Yes

    Yes

    Yes

    • ● synchronizable

    Yes

    Yes

    Yes

    Interfaces

    Number of industrial Ethernet interfaces

    1

    1

    1

    Number of PROFINET interfaces

    1

    1

    1

    Number of RS 485 interfaces

    0

    0

    0

    Number of RS 422 interfaces

    0

    0

    0

    Number of RS 232 interfaces

    0

    0

    0

    Number of USB interfaces

    1; USB 2.0

    1; USB 2.0

    1; USB 2.0

    Number of wireless interfaces

    0

    0

    0

    Number of SD card slots

    1

    1

    1

    Protocols

    PROFINET

    Yes

    Yes

    Yes

    Supports protocol for PROFINET IO

    Yes

    Yes

    Yes

    PROFIsafe

    Yes

    Yes

    Yes

    PROFIBUS

    No

    No

    No

    EtherNet/IP

    Yes

    Yes

    Yes

    MPI

    No

    No

    No

    Protocols (Ethernet)

    • ● TCP/IP

    Yes

    Yes

    Yes

    • ● DHCP

    Yes

    Yes

    Yes

    • ● SNMP

    Yes

    Yes

    Yes

    • ● DCP

    Yes

    Yes

    Yes

    • ● LLDP

    Yes

    Yes

    Yes

    WEB characteristics

    • ● HTTP

    Yes

    Yes

    Yes

    • ● HTTPS

    Yes

    Yes

    Yes

    • ● HTML

    Yes

    Yes

    Yes

    • ● XML

    No

    No

    No

    • ● CSS

    Yes

    Yes

    Yes

    • ● Active X

    No

    No

    No

    • ● JavaScript

    Yes

    Yes

    Yes

    • ● Java VM

    No

    No

    No

    Further protocols

    • ● MODBUS

    Yes

    Yes

    Yes

    • ● other bus systems

    No

    No

    No

    Communication functions

    Wireless communication

    • ● supported standards

    • — Radio standard WLAN 802.11

    No

    No

    No

    • — Bluetooth radio standard

    No

    No

    No

    Interrupts/diagnostics/status information

    Diagnoses

    • ● Diagnostic information readable

    Yes

    EMC

    Emission of radio interference acc. to EN 55 011

    • ● Limit class A, for use in industrial areas

    Yes

    • ● Limit class B, for use in residential areas

    No

    Degree and class of protection

    IP65 (all-round)

    Yes

    Yes

    Yes

    Standards, approvals, certificates

    CE mark

    Yes

    Yes

    Yes

    UL approval

    Yes

    Yes

    cULus

    Yes

    Yes

    Yes

    FM approval

    No

    No

    RCM (formerly C-TICK)

    Yes

    Yes

    Yes

    KC approval

    No

    No

    No

    EAC (formerly Gost-R)

    Yes

    Yes

    Suitable for safety functions

    Yes

    Yes

    Yes

    Marine approval

    No

    No

    No

    Highest safety class achievable in safety mode

    • ● Performance level according to ISO 13849-1

    PLe

    PLe

    PLe

    • ● SIL acc. to IEC 61508

    SIL 3

    SIL 3

    SIL 3

    Use in hazardous areas

    • ● ATEX Zone 2

    No

    No

    No

    • ● ATEX Zone 22

    No

    No

    No

    • ● IECEx Zone 2

    No

    No

    No

    • ● IECEx Zone 22

    No

    No

    No

    • ● cULus Class I Zone 1

    No

    No

    No

    • ● cULus Class I Zone 2, Division 2

    No

    No

    No

    • ● cULus Class II Division 2

    No

    No

    • ● FM Class I Division 2

    No

    No

    No

    • ● FM Class II Division 2

    No

    No

    Marine approval

    • ● Germanischer Lloyd (GL)

    Yes

    Yes

    No

    • ● American Bureau of Shipping (ABS)

    No

    • ● Bureau Veritas (BV)

    No

    • ● Det Norske Veritas (DNV)

    No

    • ● Korean Register of Shipping (KRS)

    No

    • ● Lloyds Register of Shipping (LRS)

    No

    • ● Nippon Kaiji Kyokai (Class NK)

    No

    • ● Polski Rejestr Statkow (PRS)

    No

    No

    No

    • ● Chinese Classification Society (CCS)

    No

    Ambient conditions

    Free fall

    • ● Fall height, max.

    1.2 m

    1.2 m

    1.2 m

    Ambient temperature during operation

    • ● min.

    0 °C

    0 °C

    0 °C

    • ● max.

    45 °C

    45 °C

    45 °C

    Ambient temperature during storage/transportation

    • ● min.

    -20 °C

    -20 °C

    -20 °C

    • ● max.

    60 °C

    60 °C

    60 °C

    Relative humidity

    • ● Operation, max.

    90 %

    90 %

    90 %

    Operating systems

    pre-installed operating system

    • ● Windows CE

    Yes

    Yes

    Yes

    Configuration

    Message indicator

    Yes

    Yes

    Yes

    Alarm system (incl. buffer and acknowledgment)

    Yes

    Yes

    Yes

    Process value display (output)

    Yes

    Yes

    Yes

    Process value default (input) possible

    Yes

    Yes

    Yes

    Recipe management

    Yes

    Yes

    Yes

    Configuration software

    • ● STEP 7 Basic (TIA Portal)

    No

    No

    No

    • ● STEP 7 Professional (TIA Portal)

    No

    No

    No

    • ● WinCC flexible Compact

    No

    No

    No

    • ● WinCC flexible Standard

    No

    No

    No

    • ● WinCC flexible Advanced

    No

    No

    No

    • ● WinCC Basic (TIA Portal)

    No

    No

    No

    • ● WinCC Comfort (TIA Portal)

    Yes

    Yes

    Yes

    • ● WinCC Advanced (TIA Portal)

    Yes

    Yes

    Yes

    • ● WinCC Professional (TIA Portal)

    Yes

    Yes

    Yes

    Languages

    Online languages

    • ● Number of online/runtime languages

    32

    32

    32

    Project languages

    • ● Languages per project

    32

    32

    32

    Functionality under WinCC (TIA Portal)

    Libraries

    Yes

    Yes

    Yes

    Applications/options

    • ● Web browser

    Yes

    Yes

    Yes

    • ● Pocket Word

    No

    No

    No

    • ● Pocket Excel

    No

    No

    No

    • ● PDF Viewer

    Yes

    Yes

    Yes

    • ● Media Player

    No

    No

    No

    • ● SIMATIC WinCC Sm@rtServer

    Yes

    Yes

    Yes

    • ● SIMATIC WinCC Audit

    Yes

    Yes

    Yes

    Number of Visual Basic Scripts

    Yes

    Yes

    Yes

    Task planner

    • ● time-controlled

    Yes

    Yes

    Yes

    • ● task-controlled

    Yes

    Yes

    Yes

    Help system

    • ● Number of characters per info text

    500

    500

    500

    Multiproject

    • ● Number of projects (internal)

    0

    0

    0

    • ● Number of projects (external)

    0

    0

    0

    Message system

    • ● Number of alarm classes

    32

    32

    32

    • ● Bit messages

    • — Number of bit messages

    4 000

    4 000

    4 000

    • ● Analog messages

    • — Number of analog messages

    200

    200

    200

    • ● S7 alarm number procedure

    Yes

    Yes

    Yes

    • ● System messages HMI

    Yes

    Yes

    Yes

    • ● System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )

    Yes

    Yes

    Yes

    • ● Number of characters per message

    80

    80

    80

    • ● Number of process values per message

    8

    8

    8

    • ● Acknowledgment groups

    Yes

    Yes

    Yes

    • ● Message indicator

    Yes

    Yes

    Yes

    • ● Message buffer

    • — Number of entries

    1 024

    1 024

    1 024

    • — Circulating buffer

    Yes

    Yes

    Yes

    • — retentive

    Yes

    Yes

    Yes

    • — maintenance-free

    Yes

    Yes

    Yes

    Recipe management

    • ● Number of recipes

    300

    300

    300

    • ● Data records per recipe

    500

    500

    500

    • ● Entries per data record

    1 000

    1 000

    1 000

    • ● Size of internal recipe memory

    2 Mbyte

    2 Mbyte

    2 Mbyte

    • ● Recipe memory expandable

    Yes

    Yes

    Yes

    Variables

    • ● Number of variables per device

    2 048

    2 048

    2 048

    • ● Number of variables per screen

    400

    400

    400

    • ● Limit values

    Yes

    Yes

    Yes

    • ● Multiplexing

    Yes

    Yes

    Yes

    • ● Structures

    Yes

    Yes

    Yes

    • ● Arrays

    Yes

    Yes

    Yes

    Images

    • ● Number of configurable images

    500

    500

    500

    • ● Permanent window/default

    Yes

    Yes

    Yes

    • ● Global image

    Yes

    Yes

    Yes

    • ● Image selection by PLC

    Yes

    Yes

    Yes

    • ● Image number in the PLC

    Yes

    Yes

    Yes

    Image objects

    • ● Number of objects per image

    400

    400

    400

    • ● Text fields

    Yes

    Yes

    Yes

    • ● I/O fields

    Yes

    Yes

    Yes

    • ● Graphic I/O fields (graphics list)

    Yes

    Yes

    Yes

    • ● Symbolic I/O fields (text list)

    Yes

    Yes

    Yes

    • ● Date/time fields

    Yes

    Yes

    Yes

    • ● Switches

    Yes

    Yes

    Yes

    • ● Graphic display

    Yes

    Yes

    Yes

    • ● Icons

    Yes

    Yes

    Yes

    • ● Geometric objects

    Yes

    Yes

    Yes

    Complex image objects

    • ● Number of complex objects per screen

    20

    20

    20

    • ● Alarm view

    Yes

    Yes

    Yes

    • ● Trend view

    Yes

    Yes

    Yes

    • ● User view

    Yes

    Yes

    Yes

    • ● Status/control

    Yes

    Yes

    Yes

    • ● Sm@rtClient view

    Yes

    Yes

    Yes

    • ● Recipe view

    Yes

    Yes

    Yes

    • ● f(x) trend view

    Yes

    Yes

    Yes

    • ● System diagnostics view

    Yes

    Yes

    Yes

    • ● Media Player

    Yes

    Yes

    No

    • ● Bar graphs

    Yes

    Yes

    Yes

    • ● Sliders

    Yes

    Yes

    Yes

    • ● Pointer instruments

    Yes

    Yes

    Yes

    • ● Analog/digital clock

    Yes

    Yes

    Yes

    Lists

    • ● Number of text lists per project

    500

    500

    500

    • ● Number of entries per text list

    500

    500

    500

    • ● Number of graphics lists per project

    500

    500

    500

    • ● Number of entries per graphics list

    500

    500

    500

    Archiving

    • ● Number of archives per device

    50

    50

    50

    • ● Number of entries per archive

    20 000

    20 000

    20 000

    • ● Message archive

    Yes

    Yes

    Yes

    • ● Process value archive

    Yes

    Yes

    Yes

    • ● Archiving methods

    • — Sequential archive

    Yes

    Yes

    Yes

    • — Short-term archive

    Yes

    Yes

    Yes

    • ● Memory location

    • — Memory card

    Yes

    Yes

    Yes

    • — USB memory

    Yes

    Yes

    Yes

    • — Ethernet

    Yes

    Yes

    Yes

    • ● Data storage format

    • — CSV

    Yes

    Yes

    Yes

    • — TXT

    No

    No

    No

    • — RDB

    Yes

    Yes

    Yes

    Security

    • ● Number of user groups

    50

    50

    50

    • ● Number of user rights

    32

    32

    32

    • ● Number of users

    50

    50

    50

    • ● Password export/import

    Yes

    Yes

    Yes

    • ● SIMATIC Logon

    Yes

    Yes

    Yes

    Logging through printer

    • ● Alarms

    Yes

    Yes

    Yes

    • ● Report (shift log)

    Yes

    • ● Hardcopy

    No

    • ● Electronic print to file

    Yes; PDF, HTML

    Yes; PDF, HTML

    No

    Character sets

    • ● Keyboard fonts

    • — US English

    Yes

    Yes

    Yes

    Transfer (upload/download)

    • ● MPI/PROFIBUS DP

    No

    No

    No

    • ● USB

    No

    No

    No

    • ● Ethernet

    Yes

    Yes

    Yes

    • ● Wireless LAN

    No

    No

    No

    • ● using external storage medium

    No

    No

    Yes; Backup/restore

    Process coupling

    • ● S7-1200

    Yes

    Yes

    Yes

    • ● S7-1500

    Yes

    Yes

    Yes

    • ● S7-200

    Yes

    Yes

    Yes

    • ● S7-300/400

    Yes

    Yes

    Yes

    • ● LOGO!

    Yes

    Yes

    Yes

    • ● WinAC

    No

    No

    Yes; WinAC RTX

    • ● SINUMERIK

    Yes

    Yes

    Yes; without NC channel

    • ● SIMOTION

    Yes

    Yes

    Yes

    • ● Allen Bradley (EtherNet/IP)

    Yes

    Yes

    Yes

    • ● Allen Bradley (DF1)

    No

    No

    No

    • ● Mitsubishi (MC TCP/IP)

    Yes

    Yes

    Yes

    • ● Mitsubishi (FX)

    No

    No

    Yes

    • ● OMRON (FINS TCP)

    Yes

    Yes

    No

    • ● OMRON (Host Link)

    No

    No

    No

    • ● Modicon (Modbus TCP/IP)

    Yes

    Yes

    Yes

    • ● Modicon (Modbus RTU)

    No

    No

    No

    • ● OPC UA Client

    Yes

    • ● OPC UA Server

    Yes

    Service tools/configuration aids

    • ● Backup/Restore manually

    Yes

    Yes

    Yes

    • ● Backup/Restore automatically

    Yes

    Yes

    Yes

    • ● Simulation

    Yes

    Yes

    Yes

    • ● Device switchover

    Yes

    Yes

    Yes

    Peripherals/Options

    Printer

    Yes

    Yes

    Yes

    SIMATIC HMI MM memory card: Multi Media Card

    Yes

    Yes

    Yes

    SIMATIC HMI SD memory card: Secure Digital memory card

    Yes

    Yes

    Yes

    USB memory

    Yes

    Yes

    Yes

    Network camera

    Yes

    Yes

    Yes

    Additional software components loadable

    Yes; SIMATIC options

    Yes; SIMATIC options

    Yes; SIMATIC options

    Mechanics/material

    Enclosure material (front)

    • ● Plastic

    Yes

    Yes

    Yes

    • ● Aluminum

    No

    No

    No

    • ● Stainless steel

    No

    No

    No

    Dimensions

    Width of the housing front

    307.5 mm

    Height of housing front

    223.5 mm

    Weights

    Weight (without packaging)

    1.3 kg

    1.3 kg

    1.6 kg

    Weight (with packaging)

    1.8 kg

    1.8 kg

    1.7 kg

    Article number

    6AV2125-2GB03-0AX0

    6AV2125-2GB23-0AX0

    6AV2125-2JB03-0AX0

    6AV2125-2JB23-0AX0

    SIMATIC HMI KTP700 Mobile

    SIMATIC HMI KTP700F Mobile

    SIMATIC HMI KTP900 Mobile

    SIMATIC HMI KTP900F Mobile

    General information

    Product type designation

    KTP700 Mobile

    KTP700F Mobile

    KTP900 Mobile

    KTP900F Mobile

    Display

    Design of display

    TFT widescreen display, LED backlighting

    TFT widescreen display, LED backlighting

    TFT widescreen display, LED backlighting

    TFT widescreen display, LED backlighting

    Screen diagonal

    7 in

    7 in

    9 in

    9 in

    Color display

    Yes

    Yes

    Yes

    Yes

    Number of colors

    16 777 216

    16 777 216

    16 777 216

    16 777 216

    Resolution (pixels)

    • ● Horizontal image resolution

    800 pixel

    800 pixel

    800 pixel

    800 pixel

    • ● Vertical image resolution

    480 pixel

    480 pixel

    480 pixel

    480 pixel

    Backlighting

    • ● MTBF backlighting (at 25 °C)

    50 000 h

    50 000 h

    50 000 h

    50 000 h

    • ● Backlight dimmable

    Yes; 0-100 %

    Yes; 0-100 %

    Yes; 0-100 %

    Yes; 0-100 %

    Control elements

    Keyboard

    • ● Function keys

    • — Number of function keys

    8

    8

    10

    10

    • — Number of function keys with LEDs

    8

    8

    10

    10

    • ● Keys with LED

    Yes

    Yes

    Yes

    Yes

    • ● Numeric keyboard

    Yes; Onscreen keyboard

    Yes; Onscreen keyboard

    Yes; Onscreen keyboard

    Yes; Onscreen keyboard

    • ● alphanumeric keyboard

    Yes; Onscreen keyboard

    Yes; Onscreen keyboard

    Yes; Onscreen keyboard

    Yes; Onscreen keyboard

    Touch operation

    • ● Design as touch screen

    Yes

    Yes

    Yes

    Yes

    • ● Design as multi-touch screen

    No

    No

    No

    No

    Special operator controls

    • ● Stop button (forced blocking)

    No

    Yes

    No

    Yes

    • ● Emergency stop button (illuminated and forced blocking)

    No

    Yes

    No

    Yes

    • ● Acknowledgement button (3-stage)

    No

    Yes

    No

    Yes

    • ● Key-operated switch

    No

    Yes

    No

    Yes

    • ● Illuminated pushbutton

    Yes

    Yes

    Yes

    Yes

    Camera

    • ● integrated camera

    No

    No

    No

    No

    Expansions for operator control of the process

    • ● DP direct LEDs (LEDs as S7 output I/O)

    • — F1...Fx

    8

    8

    10

    10

    • ● Direct keys (keys as S7 input I/O)

    • — F1...Fx

    8

    8

    10

    10

    • ● Direct keys (touch buttons as S7 input I/O)

    32

    32

    32

    32

    Supply voltage

    Type of supply voltage

    DC

    DC

    DC

    DC

    Rated value (DC)

    24 V

    24 V

    24 V

    24 V

    permissible range, lower limit (DC)

    19.2 V

    19.2 V

    19.2 V

    19.2 V

    permissible range, upper limit (DC)

    28.8 V

    28.8 V

    28.8 V

    28.8 V

    Input current

    Current consumption (rated value)

    350 mA

    350 mA

    450 mA

    450 mA

    Starting current inrush I²t

    0.135 A²·s

    0.135 A²·s

    0.135 A²·s

    0.135 A²·s

    Power

    Active power input, typ.

    8.5 W

    8.5 W

    11 W

    11 W

    Processor

    Processor type

    ARM

    ARM

    ARM

    ARM

    Storage

    Flash

    Yes

    Yes

    Yes

    Yes

    RAM

    Yes

    Yes

    Yes

    Yes

    Memory available for user data

    12 Mbyte

    12 Mbyte

    12 Mbyte

    12 Mbyte

    Type of output

    Power LED

    No

    No

    No

    No

    LED for safe

    No

    No

    No

    No

    LED for communication

    No

    No

    No

    No

    LED for battery

    No

    No

    No

    No

    Vibrations

    No

    No

    No

    No

    Time of day

    Clock

    • ● Hardware clock (real-time)

    Yes

    Yes

    Yes

    Yes

    • ● retentive

    Yes

    Yes

    Yes

    Yes

    • ● synchronizable

    Yes

    Yes

    Yes

    Yes

    Interfaces

    Number of industrial Ethernet interfaces

    1

    1

    1

    1

    Number of PROFINET interfaces

    1

    1

    1

    1

    Number of RS 485 interfaces

    0

    0

    0

    0

    Number of RS 422 interfaces

    0

    0

    0

    0

    Number of RS 232 interfaces

    0

    0

    0

    0

    Number of USB interfaces

    1; USB 2.0

    1; USB 2.0

    1; USB 2.0

    1; USB 2.0

    Number of wireless interfaces

    0

    0

    0

    0

    Number of SD card slots

    1

    1

    1

    1

    Protocols

    PROFINET

    Yes

    Yes

    Yes

    Yes

    Supports protocol for PROFINET IO

    Yes

    Yes

    Yes

    Yes

    PROFIsafe

    No

    Yes

    No

    Yes

    PROFIBUS

    No

    No

    No

    No

    EtherNet/IP

    Yes

    Yes

    Yes

    Yes

    MPI

    No

    No

    No

    No

    Protocols (Ethernet)

    • ● TCP/IP

    Yes

    Yes

    Yes

    Yes

    • ● DHCP

    Yes

    Yes

    Yes

    Yes

    • ● SNMP

    Yes

    Yes

    Yes

    Yes

    • ● DCP

    Yes

    Yes

    Yes

    Yes

    • ● LLDP

    Yes

    Yes

    Yes

    Yes

    WEB characteristics

    • ● HTTP

    Yes

    Yes

    Yes

    Yes

    • ● HTTPS

    Yes

    Yes

    Yes

    Yes

    • ● HTML

    Yes

    Yes

    Yes

    Yes

    • ● XML

    No

    No

    No

    No

    • ● CSS

    Yes

    Yes

    Yes

    Yes

    • ● Active X

    No

    No

    No

    No

    • ● JavaScript

    Yes

    Yes

    Yes

    Yes

    • ● Java VM

    No

    No

    No

    No

    Redundancy mode

    Media redundancy

    • — MRP

    Yes

    Yes

    Yes

    Yes

    Further protocols

    • ● MODBUS

    Yes

    Yes

    Yes

    Yes

    • ● other bus systems

    No

    No

    No

    No

    Communication functions

    Wireless communication

    • ● supported standards

    • — Radio standard WLAN 802.11

    No

    No

    No

    No

    • — Bluetooth radio standard

    No

    No

    No

    No

    Interrupts/diagnostics/status information

    Diagnoses

    • ● Diagnostic information readable

    Yes

    Yes

    Yes

    Yes

    EMC

    Emission of radio interference acc. to EN 55 011

    • ● Limit class A, for use in industrial areas

    Yes

    Yes

    Yes

    Yes

    • ● Limit class B, for use in residential areas

    No

    No

    No

    No

    Degree and class of protection

    IP65 (all-round)

    Yes

    Yes

    Yes

    Yes

    Standards, approvals, certificates

    CE mark

    Yes

    Yes

    Yes

    Yes

    cULus

    Yes

    Yes

    Yes

    Yes

    RCM (formerly C-TICK)

    Yes

    Yes

    Yes

    Yes

    KC approval

    Yes

    Yes

    Yes

    Yes

    Suitable for safety functions

    No

    Yes

    No

    Yes

    Marine approval

    Yes

    Yes

    Yes

    Yes

    Ecological footprint

    • ● environmental product declaration

    Yes

    Yes

    Global warming potential

    • — global warming potential, (total) [CO2 eq]

    157 kg

    157 kg

    • — global warming potential, (during production) [CO2 eq]

    45 kg

    45 kg

    • — global warming potential, (during operation) [CO2 eq]

    114 kg

    114 kg

    • — global warming potential, (after end of life cycle) [CO2 eq]

    -1.55 kg

    -1.55 kg

    Highest safety class achievable in safety mode

    • ● Performance level according to ISO 13849-1

    none

    PLe

    none

    PLe

    • ● SIL acc. to IEC 61508

    No

    SIL 3

    No

    SIL 3

    Use in hazardous areas

    • ● ATEX Zone 2

    No

    No

    No

    No

    • ● ATEX Zone 22

    No

    No

    No

    No

    • ● IECEx Zone 2

    No

    No

    No

    No

    • ● IECEx Zone 22

    No

    No

    No

    No

    • ● cULus Class I Zone 1

    No

    No

    No

    No

    • ● cULus Class I Zone 2, Division 2

    No

    No

    No

    No

    • ● FM Class I Division 2

    No

    No

    No

    No

    Marine approval

    • ● Germanischer Lloyd (GL)

    Yes

    Yes

    Yes

    Yes

    • ● American Bureau of Shipping (ABS)

    Yes

    Yes

    Yes

    Yes

    • ● Bureau Veritas (BV)

    No

    Yes

    No

    Yes

    • ● Det Norske Veritas (DNV)

    Yes

    Yes

    Yes

    Yes

    • ● Korean Register of Shipping (KRS)

    No

    Yes

    No

    Yes

    • ● Lloyds Register of Shipping (LRS)

    Yes

    Yes

    Yes

    Yes

    • ● Nippon Kaiji Kyokai (Class NK)

    Yes

    Yes

    Yes

    Yes

    • ● Polski Rejestr Statkow (PRS)

    No

    No

    No

    No

    • ● Chinese Classification Society (CCS)

    Yes

    Yes

    Yes

    Yes

    Ambient conditions

    Free fall

    • ● Fall height, max.

    1.2 m

    1.2 m

    1.2 m

    1.2 m

    Ambient temperature during operation

    • ● min.

    0 °C

    0 °C

    0 °C

    0 °C

    • ● max.

    45 °C

    45 °C

    45 °C

    45 °C

    Ambient temperature during storage/transportation

    • ● min.

    -20 °C

    -20 °C

    -20 °C

    -20 °C

    • ● max.

    60 °C

    60 °C

    60 °C

    60 °C

    Relative humidity

    • ● Operation, max.

    90 %

    90 %

    90 %

    90 %

    Operating systems

    pre-installed operating system

    • ● Windows CE

    Yes

    Yes

    Yes

    Yes

    Configuration

    Message indicator

    Yes

    Yes

    Yes

    Yes

    Alarm system (incl. buffer and acknowledgment)

    Yes

    Yes

    Yes

    Yes

    Process value display (output)

    Yes

    Yes

    Yes

    Yes

    Process value default (input) possible

    Yes

    Yes

    Yes

    Yes

    Recipe management

    Yes

    Yes

    Yes

    Yes

    Configuration software

    • ● STEP 7 Basic (TIA Portal)

    No

    No

    No

    No

    • ● STEP 7 Professional (TIA Portal)

    No

    No

    No

    No

    • ● WinCC flexible Compact

    No

    No

    No

    No

    • ● WinCC flexible Standard

    No

    No

    No

    No

    • ● WinCC flexible Advanced

    No

    No

    No

    No

    • ● WinCC Basic (TIA Portal)

    No

    No

    No

    No

    • ● WinCC Comfort (TIA Portal)

    Yes

    Yes

    Yes

    Yes

    • ● WinCC Advanced (TIA Portal)

    Yes

    Yes

    Yes

    Yes

    • ● WinCC Professional (TIA Portal)

    Yes

    Yes

    Yes

    Yes

    Languages

    Online languages

    • ● Number of online/runtime languages

    32

    32

    32

    32

    Project languages

    • ● Languages per project

    32

    32

    32

    32

    Functionality under WinCC (TIA Portal)

    Libraries

    Yes

    Yes

    Yes

    Yes

    Applications/options

    • ● Web browser

    Yes

    Yes

    Yes

    Yes

    • ● Pocket Word

    No

    No

    No

    No

    • ● Pocket Excel

    No

    No

    No

    No

    • ● PDF Viewer

    Yes

    Yes

    Yes

    Yes

    • ● Media Player

    No

    No

    No

    No

    • ● SIMATIC WinCC Sm@rtServer

    Yes

    Yes

    Yes

    Yes

    • ● SIMATIC WinCC Audit

    Yes

    Yes

    Yes

    Yes

    Number of Visual Basic Scripts

    Yes

    Yes

    Yes

    Yes

    Task planner

    • ● time-controlled

    Yes

    Yes

    Yes

    Yes

    • ● task-controlled

    Yes

    Yes

    Yes

    Yes

    Help system

    • ● Number of characters per info text

    500

    500

    500

    500

    Multiproject

    • ● Number of projects (internal)

    0

    0

    0

    0

    • ● Number of projects (external)

    0

    0

    0

    0

    Message system

    • ● Number of alarm classes

    32

    32

    32

    32

    • ● Bit messages

    • — Number of bit messages

    4 000

    4 000

    4 000

    4 000

    • ● Analog messages

    • — Number of analog messages

    200

    200

    200

    200

    • ● S7 alarm number procedure

    Yes

    Yes

    Yes

    Yes

    • ● System messages HMI

    Yes

    Yes

    Yes

    Yes

    • ● System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )

    Yes

    Yes

    Yes

    Yes

    • ● Number of characters per message

    80

    80

    80

    80

    • ● Number of process values per message

    8

    8

    8

    8

    • ● Acknowledgment groups

    Yes

    Yes

    Yes

    Yes

    • ● Message indicator

    Yes

    Yes

    Yes

    Yes

    • ● Message buffer

    • — Number of entries

    1 024

    1 024

    1 024

    1 024

    • — Circulating buffer

    Yes

    Yes

    Yes

    Yes

    • — retentive

    Yes

    Yes

    Yes

    Yes

    • — maintenance-free

    Yes

    Yes

    Yes

    Yes

    Recipe management

    • ● Number of recipes

    300

    300

    300

    300

    • ● Data records per recipe

    500

    500

    500

    500

    • ● Entries per data record

    1 000

    1 000

    1 000

    1 000

    • ● Size of internal recipe memory

    2 Mbyte

    2 Mbyte

    2 Mbyte

    2 Mbyte

    • ● Recipe memory expandable

    Yes

    Yes

    Yes

    Yes

    Variables

    • ● Number of variables per device

    2 048

    2 048

    2 048

    2 048

    • ● Number of variables per screen

    400

    400

    400

    400

    • ● Limit values

    Yes

    Yes

    Yes

    Yes

    • ● Multiplexing

    Yes

    Yes

    Yes

    Yes

    • ● Structures

    Yes

    Yes

    Yes

    Yes

    • ● Arrays

    Yes

    Yes

    Yes

    Yes

    Images

    • ● Number of configurable images

    500

    500

    500

    500

    • ● Permanent window/default

    Yes

    Yes

    Yes

    Yes

    • ● Global image

    Yes

    Yes

    Yes

    Yes

    • ● Image selection by PLC

    Yes

    Yes

    Yes

    Yes

    • ● Image number in the PLC

    Yes

    Yes

    Yes

    Yes

    Image objects

    • ● Number of objects per image

    400

    400

    400

    400

    • ● Text fields

    Yes

    Yes

    Yes

    Yes

    • ● I/O fields

    Yes

    Yes

    Yes

    Yes

    • ● Graphic I/O fields (graphics list)

    Yes

    Yes

    Yes

    Yes

    • ● Symbolic I/O fields (text list)

    Yes

    Yes

    Yes

    Yes

    • ● Date/time fields

    Yes

    Yes

    Yes

    Yes

    • ● Switches

    Yes

    Yes

    Yes

    Yes

    • ● Graphic display

    Yes

    Yes

    Yes

    Yes

    • ● Icons

    Yes

    Yes

    Yes

    Yes

    • ● Geometric objects

    Yes

    Yes

    Yes

    Yes

    Complex image objects

    • ● Number of complex objects per screen

    20

    20

    20

    20

    • ● Alarm view

    Yes

    Yes

    Yes

    Yes

    • ● Trend view

    Yes

    Yes

    Yes

    Yes

    • ● User view

    Yes

    Yes

    Yes

    Yes

    • ● Status/control

    Yes

    Yes

    Yes

    Yes

    • ● Sm@rtClient view

    Yes

    Yes

    Yes

    Yes

    • ● Recipe view

    Yes

    Yes

    Yes

    Yes

    • ● f(x) trend view

    Yes

    Yes

    Yes

    Yes

    • ● System diagnostics view

    Yes

    Yes

    Yes

    Yes

    • ● Media Player

    No

    No

    No

    No

    • ● Bar graphs

    Yes

    Yes

    Yes

    Yes

    • ● Sliders

    Yes

    Yes

    Yes

    Yes

    • ● Pointer instruments

    Yes

    Yes

    Yes

    Yes

    • ● Analog/digital clock

    Yes

    Yes

    Yes

    Yes

    Lists

    • ● Number of text lists per project

    500

    500

    500

    500

    • ● Number of entries per text list

    500

    500

    500

    500

    • ● Number of graphics lists per project

    500

    500

    500

    500

    • ● Number of entries per graphics list

    500

    500

    500

    500

    Archiving

    • ● Number of archives per device

    50

    50

    50

    50

    • ● Number of entries per archive

    20 000

    20 000

    20 000

    20 000

    • ● Message archive

    Yes

    Yes

    Yes

    Yes

    • ● Process value archive

    Yes

    Yes

    Yes

    Yes

    • ● Archiving methods

    • — Sequential archive

    Yes

    Yes

    Yes

    Yes

    • — Short-term archive

    Yes

    Yes

    Yes

    Yes

    • ● Memory location

    • — Memory card

    Yes

    Yes

    Yes

    Yes

    • — USB memory

    Yes

    Yes

    Yes

    Yes

    • — Ethernet

    Yes

    Yes

    Yes

    Yes

    • ● Data storage format

    • — CSV

    Yes

    Yes

    Yes

    Yes

    • — TXT

    No

    No

    No

    No

    • — RDB

    Yes

    Yes

    Yes

    Yes

    Security

    • ● Number of user groups

    50

    50

    50

    50

    • ● Number of user rights

    32

    32

    32

    32

    • ● Number of users

    50

    50

    50

    50

    • ● Password export/import

    Yes

    Yes

    Yes

    Yes

    • ● SIMATIC Logon

    Yes

    Yes

    Yes

    Yes

    Logging through printer

    • ● Alarms

    Yes

    Yes

    Yes

    Yes

    • ● Report (shift log)

    Yes

    Yes

    Yes

    Yes

    • ● Hardcopy

    No

    No

    No

    No

    • ● Electronic print to file

    No

    No

    No

    No

    Character sets

    • ● Keyboard fonts

    • — US English

    Yes

    Yes

    Yes

    Yes

    Transfer (upload/download)

    • ● MPI/PROFIBUS DP

    No

    No

    No

    No

    • ● USB

    No

    No

    No

    No

    • ● Ethernet

    Yes

    Yes

    Yes

    Yes

    • ● Wireless LAN

    No

    No

    No

    No

    • ● using external storage medium

    Yes; Backup/restore

    Yes; Backup/restore

    Yes; Backup/restore

    Yes; Backup/restore

    Process coupling

    • ● S7-1200

    Yes

    Yes

    Yes

    Yes

    • ● S7-1500

    Yes

    Yes

    Yes

    Yes

    • ● S7-200

    Yes

    Yes

    Yes

    Yes

    • ● S7-300/400

    Yes

    Yes

    Yes

    Yes

    • ● LOGO!

    Yes

    Yes

    Yes

    Yes

    • ● WinAC

    Yes; WinAC RTX

    Yes; WinAC RTX

    Yes; WinAC RTX

    Yes; WinAC RTX

    • ● SINUMERIK

    Yes

    Yes; without NC channel

    Yes

    Yes; without NC channel

    • ● SIMOTION

    Yes

    Yes

    Yes

    Yes

    • ● Allen Bradley (EtherNet/IP)

    Yes

    Yes

    Yes

    Yes

    • ● Allen Bradley (DF1)

    No

    No

    No

    No

    • ● Mitsubishi (MC TCP/IP)

    Yes

    Yes

    Yes

    Yes

    • ● Mitsubishi (FX)

    No

    No

    Yes

    Yes

    • ● OMRON (FINS TCP)

    No

    No

    No

    No

    • ● OMRON (Host Link)

    No

    No

    No

    No

    • ● Modicon (Modbus TCP/IP)

    Yes

    Yes

    Yes

    Yes

    • ● Modicon (Modbus RTU)

    No

    No

    No

    No

    • ● OPC UA Client

    Yes

    Yes

    Yes

    Yes

    • ● OPC UA Server

    Yes

    Yes

    Yes

    Yes

    Service tools/configuration aids

    • ● Backup/Restore manually

    Yes

    Yes

    Yes

    Yes

    • ● Backup/Restore automatically

    Yes

    Yes

    Yes

    Yes

    • ● Simulation

    Yes

    Yes

    Yes

    Yes

    • ● Device switchover

    Yes

    Yes

    Yes

    Yes

    Peripherals/Options

    Printer

    Yes

    Yes

    Yes

    Yes

    SIMATIC HMI MM memory card: Multi Media Card

    Yes

    Yes

    Yes

    Yes

    SIMATIC HMI SD memory card: Secure Digital memory card

    Yes

    Yes

    Yes

    Yes

    USB memory

    Yes

    Yes

    Yes

    Yes

    Network camera

    Yes

    Yes

    Yes

    Yes

    Additional software components loadable

    Yes; SIMATIC options

    Yes; SIMATIC options

    Yes; SIMATIC options

    Yes; SIMATIC options

    Mechanics/material

    Enclosure material (front)

    • ● Plastic

    Yes

    Yes

    Yes

    Yes

    • ● Aluminum

    No

    No

    No

    No

    • ● Stainless steel

    No

    No

    No

    No

    Weights

    Weight (without packaging)

    1.2 kg

    1.3 kg

    1.5 kg

    1.6 kg

    Weight (with packaging)

    1.3 kg

    1.4 kg

    1.6 kg

    1.7 kg

    Дальнейшая информация

    More information is available on the internet at this link

    Note:

    Do you need a specific modification or option for the products described here? Then look up "Customized products", where you will find information about additional sector-specific products that can be ordered as well as about options for customer-specific modification and adaptation.

    Ответственный редактор / Инженер

    Директор «Би Энд Би Инжиниринг»
    «Описание оборудования на этой странице составлено на основе нашего 10-летнего опыта работы в сфере пневматического оборудования, запорной арматуры и промышленной автоматизации. Если у вас есть вопросы или комментарии — напишите мне лично».
