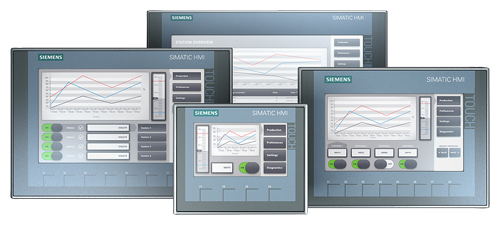

Панели SIMATIC HMI Basic 2-го поколения

General information

Product type designation

KTP400 Basic

TP400 Basic Keyless

KTP700 Basic color PN

KTP700 Basic color DP

TP700 Basic Keyless

Display

Design of display

TFT widescreen display, LED backlighting

TFT widescreen display, LED backlighting

TFT widescreen display, LED backlighting

TFT widescreen display, LED backlighting

TFT widescreen display, LED backlighting

Screen diagonal

4.3 in

4.3 in

7 in

7 in

7 in

Display width

95 mm

95 mm

154.1 mm

154.1 mm

154.1 mm

Display height

53.9 mm

53.9 mm

85.9 mm

85.9 mm

85.9 mm

Number of colors

65 536

65 536

65 536

65 536

65 536

Resolution (pixels)

• ● Horizontal image resolution

480 pixel

480 pixel

800 pixel

800 pixel

800 pixel

• ● Vertical image resolution

272 pixel

272 pixel

480 pixel

480 pixel

480 pixel

Backlighting

• ● MTBF backlighting (at 25 °C)

20 000 h

20 000 h

20 000 h

20 000 h

20 000 h

• ● Backlight dimmable

Yes

Yes

Yes

Yes

Yes

Control elements

Keyboard

• ● Function keys

No

No

• — Number of function keys

4

0

8

8

0

• — Number of function keys with LEDs

0

0

0

0

0

• ● Keys with LED

No

No

No

No

No

• ● System keys

No

No

No

No

No

• ● Numeric keyboard

Yes; Onscreen keyboard

Yes; Onscreen keyboard

Yes; Onscreen keyboard

Yes; Onscreen keyboard

Yes; Onscreen keyboard

• ● alphanumeric keyboard

Yes; Onscreen keyboard

Yes; Onscreen keyboard

Yes; Onscreen keyboard

Yes; Onscreen keyboard

Yes; Onscreen keyboard

Touch operation

• ● Design as touch screen

Yes; Analog-resistive

Yes; Analog-resistive

Yes; Analog-resistive

Yes; Analog-resistive

Yes; Analog-resistive

• ● Design as multi-touch screen

No

• ● Monitor keyboard

Yes

Installation type/mounting

Mounting position

vertical

vertical

vertical

Horizontal, vertical

Wall mounting/direct mounting

No

No

No

Mounting in portrait format possible

Yes

Yes

Yes

Yes

Yes

Mounting in landscape format possible

Yes

Yes

Yes

Yes

Yes

maximum permissible angle of inclination without external ventilation

35°

35°

35°

35°

35°

Supply voltage

Type of supply voltage

DC

DC

DC

DC

DC

Rated value (DC)

24 V

24 V

24 V

24 V

24 V

permissible range, lower limit (DC)

19.2 V

19.2 V

19.2 V

19.2 V

19.2 V

permissible range, upper limit (DC)

28.8 V

28.8 V

28.8 V

28.8 V

28.8 V

Input current

Current consumption (rated value)

125 mA

125 mA

230 mA

230 mA

230 mA

Starting current inrush I²t

0.2 A²·s

0.2 A²·s

0.2 A²·s

0.2 A²·s

0.2 A²·s

Power

Active power input, typ.

3 W

5.5 W

5.5 W

5.5 W

Processor

Processor type

ARM

ARM

ARM

ARM

ARM

Storage

Flash

Yes

Yes

Yes

Yes

Yes

RAM

Yes

Yes

Yes

Yes

Yes

Memory available for user data

10 Mbyte

10 Mbyte

10 Mbyte

10 Mbyte

10 Mbyte

Type of output

Acoustics

• ● Buzzer

Yes

Yes

Yes

Yes

Yes

• ● Speaker

No

No

No

No

No

Time of day

Clock

• ● Hardware clock (real-time)

Yes

Yes

Yes

Yes

Yes

• ● Software clock

Yes

Yes

Yes

Yes

Yes

• ● retentive

Yes; Back-up duration typically 6 weeks

Yes

Yes; Back-up duration typically 6 weeks

Yes; Back-up duration typically 6 weeks

Yes; Back-up duration typically 6 weeks

• ● synchronizable

Yes

Yes

Yes

Yes

Yes

Interfaces

Number of industrial Ethernet interfaces

1

1

1

0

1

Number of RS 485 interfaces

0

0

0

1

0

Number of RS 422 interfaces

0

0

0

1; together with RS 485

0

Number of RS 232 interfaces

0

0

0

0; with optional adapter

0

Number of USB interfaces

1; Up to 16 GB

1

1; Up to 16 GB

1; Up to 16 GB

1; Up to 16 GB

Number of 20 mA interfaces (TTY)

0

0

0

0

0

Number of parallel interfaces

0

0

0

0

0

Number of other interfaces

0

0

0

0

0

Number of SD card slots

0

0

0

0

0

With software interfaces

No

No

No

No

No

Industrial Ethernet

• ● Industrial Ethernet status LED

2

2

2

0

2

Protocols

PROFINET

Yes

Yes

Yes

No

Yes

Supports protocol for PROFINET IO

No

No

No

No

No

IRT

No

No

No

No

No

PROFIBUS

No

No

No

Yes

No

EtherNet/IP

Yes

Yes

Yes

No

Yes

MPI

No

No

No

Yes

No

Protocols (Ethernet)

• ● TCP/IP

Yes

Yes

Yes

No

Yes

• ● DHCP

Yes

Yes

Yes

No

Yes

• ● SNMP

Yes

No

Yes

• ● DCP

Yes

Yes

Yes

No

Yes

• ● LLDP

Yes

Yes

Yes

No

Yes

WEB characteristics

• ● HTTP

No

No

No

No

No

• ● HTML

No

No

No

No

No

Redundancy mode

Media redundancy

• — MRP

No

No

No

No

No

Further protocols

• ● CAN

No

No

No

No

No

• ● MODBUS

Yes; Modicon (MODBUS TCP/IP)

Yes; Modicon (MODBUS TCP/IP)

Yes; Modicon (MODBUS TCP/IP)

Yes; Modicon (MODBUS RTU)

Yes; Modicon (MODBUS TCP/IP)

Interrupts/diagnostics/status information

Diagnoses

• ● Diagnostic information readable

No

No

No

No

No

EMC

Emission of radio interference acc. to EN 55 011

• ● Limit class A, for use in industrial areas

Yes

Yes

Yes

Yes

Yes

• ● Limit class B, for use in residential areas

No

No

No

No

No

Degree and class of protection

IP (at the front)

IP65

IP65

IP65

IP65

IP65

IP (rear)

IP20

IP20

IP20

IP20

IP20

NEMA (front)

• ● Enclosure Type 4 at the front

Yes

Yes

Yes

Yes

Yes

• ● Enclosure Type 4x at the front

Yes

Yes

Yes

Yes

Yes

Standards, approvals, certificates

CE mark

Yes

Yes

Yes

Yes

Yes

cULus

Yes

Yes

Yes

Yes

Yes

RCM (formerly C-TICK)

Yes

Yes

Yes

Yes

Yes

KC approval

Yes

Yes

Yes

Yes

EAC (formerly Gost-R)

Yes

Ecological footprint

• ● environmental product declaration

Yes

Yes

Global warming potential

• — global warming potential, (total) [CO2 eq]

85 kg

85 kg

• — global warming potential, (during production) [CO2 eq]

26.2 kg

26.2 kg

• — global warming potential, (during operation) [CO2 eq]

59.2 kg

59.2 kg

• — global warming potential, (after end of life cycle) [CO2 eq]

-0.682 kg

-0.682 kg

Use in hazardous areas

• ● ATEX Zone 2

No

No

No

No

No

• ● ATEX Zone 22

No

No

No

No

No

• ● IECEx Zone 2

No

No

No

No

• ● IECEx Zone 22

No

No

No

No

• ● cULus Class I Zone 1

No

No

No

No

No

• ● cULus Class I Zone 2, Division 2

No

No

No

No

No

• ● FM Class I Division 2

No

No

No

No

No

Marine approval

• ● Germanischer Lloyd (GL)

Yes

Yes

Yes

Yes

• ● American Bureau of Shipping (ABS)

Yes

Yes

Yes

Yes

• ● Bureau Veritas (BV)

Yes

Yes

Yes

Yes

• ● Det Norske Veritas (DNV)

Yes

Yes

Yes

Yes

• ● Lloyds Register of Shipping (LRS)

Yes

Yes

Yes

Yes

• ● Nippon Kaiji Kyokai (Class NK)

Yes

Yes

Yes

Yes

• ● Polski Rejestr Statkow (PRS)

No

No

No

No

• ● Chinese Classification Society (CCS)

No

No

No

Ambient conditions

Suited for indoor use

Yes

Yes

Suited for outdoor use

No

No

Ambient temperature during operation

Operation (vertical installation)

• — For vertical installation, min.

0 °C

0 °C

0 °C

0 °C

0 °C

• — For vertical installation, max.

50 °C

50 °C

50 °C

50 °C

50 °C

Operation (max. tilt angle)

• — At maximum tilt angle, min.

0 °C

0 °C

0 °C

0 °C

0 °C

• — At maximum tilt angle, max.

40 °C

40 °C

40 °C

40 °C

40 °C

Operation (vertical installation, portrait format)

• — For vertical installation, min.

0 °C

0 °C

0 °C

0 °C

0 °C

• — For vertical installation, max.

40 °C

40 °C

40 °C

40 °C

40 °C

Operation (max. tilt angle, portrait format)

• — At maximum tilt angle, min.

0 °C

0 °C

0 °C

0 °C

0 °C

• — At maximum tilt angle, max.

35 °C

35 °C

35 °C

35 °C

35 °C

Ambient temperature during storage/transportation

• ● min.

-20 °C

-20 °C

-20 °C

-20 °C

-20 °C

• ● max.

60 °C

60 °C

60 °C

60 °C

60 °C

Relative humidity

• ● Operation, max.

90 %; no condensation

90 %

90 %; no condensation

90 %; no condensation

90 %; no condensation

Operating systems

proprietary

Yes

Yes

Yes

Yes

Yes

pre-installed operating system

• ● Windows CE

No

No

No

No

No

Configuration

Message indicator

Yes

Yes

Yes

Yes

Yes

Alarm system (incl. buffer and acknowledgment)

Yes

Yes

Yes

Yes

Yes

Process value display (output)

Yes

Yes

Yes

Yes

Yes

Process value default (input) possible

Yes

Yes

Yes

Yes

Yes

Recipe management

Yes

Yes

Yes

Yes

Yes

Configuration software

• ● STEP 7 Basic (TIA Portal)

Yes; via integrated WinCC Basic (TIA Portal)

Yes; via integrated WinCC Basic (TIA Portal)

Yes; via integrated WinCC Basic (TIA Portal)

Yes; via integrated WinCC Basic (TIA Portal)

Yes; via integrated WinCC Basic (TIA Portal)

• ● STEP 7 Professional (TIA Portal)

Yes; via integrated WinCC Basic (TIA Portal)

Yes; via integrated WinCC Basic (TIA Portal)

Yes; via integrated WinCC Basic (TIA Portal)

Yes; via integrated WinCC Basic (TIA Portal)

Yes; via integrated WinCC Basic (TIA Portal)

• ● WinCC flexible Compact

No

No

No

No

No

• ● WinCC flexible Standard

No

No

No

No

No

• ● WinCC flexible Advanced

No

No

No

No

No

• ● WinCC Basic (TIA Portal)

Yes

Yes

Yes

Yes

Yes

• ● WinCC Comfort (TIA Portal)

Yes

Yes

Yes

Yes

Yes

• ● WinCC Advanced (TIA Portal)

Yes

Yes

Yes

Yes

Yes

• ● WinCC Professional (TIA Portal)

Yes

Yes

Yes

Yes

Yes

Languages

Online languages

• ● Number of online/runtime languages

10

10

10

10

10

Project languages

• ● Languages per project

32

32

32

32

32

Functionality under WinCC (TIA Portal)

Libraries

Yes

Yes

Yes

Yes

Yes

Applications/options

• ● Web browser

Yes

Yes

No

Yes

• ● SIMATIC WinCC Sm@rtServer

Yes; Available with WinCC (TIA Portal) V14 or higher

Yes; Available with WinCC (TIA Portal) V14 or higher

No

Number of Visual Basic Scripts

No

No

No

No

No

Task planner

Yes

Yes

Yes

Yes

Yes

• ● time-controlled

No

No

No

No

No

• ● task-controlled

Yes

Yes

Yes

Yes

Yes

Help system

Yes

Yes

Yes

Yes

Yes

• ● Number of characters per info text

500

500

500

500

500

Message system

• ● Number of alarm classes

32

32

32

32

32

• ● Bit messages

• — Number of bit messages

1 000

1 000

1 000

1 000

1 000

• ● Analog messages

• — Number of analog messages

25

25

25

25

25

• ● S7 alarm number procedure

No

No

No

No

No

• ● System messages HMI

Yes

Yes

Yes

Yes

Yes

• ● System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )

Yes; System message buffer of the SIMATIC S7-1200 and S7-1500

Yes; System message buffer of the SIMATIC S7-1200 and S7-1500

Yes; System message buffer of the SIMATIC S7-1200 and S7-1500

Yes; System message buffer of the SIMATIC S7-1200 and S7-1500

Yes; System message buffer of the SIMATIC S7-1200 and S7-1500

• ● Number of characters per message

80

80

80

80

80

• ● Number of process values per message

8

8

8

8

8

• ● Acknowledgment groups

Yes

Yes

Yes

Yes

Yes

• ● Message indicator

Yes

Yes

Yes

Yes

Yes

• ● Message buffer

• — Number of entries

256

256

256

256

256

• — Circulating buffer

Yes

Yes

Yes

Yes

Yes

• — retentive

Yes

Yes

Yes

Yes

Yes

• — maintenance-free

Yes

Yes

Yes

Yes

Yes

Recipe management

• ● Number of recipes

50

50

50

50

50

• ● Data records per recipe

100

100

100

100

100

• ● Entries per data record

100

100

100

100

100

• ● Size of internal recipe memory

256 kbyte

256 kbyte

256 kbyte

256 kbyte

256 kbyte

• ● Recipe memory expandable

No

No

No

No

No

Variables

• ● Number of variables per device

800

800

800

800

800

• ● Number of variables per screen

100

100

100

100

100

• ● Limit values

Yes

Yes

Yes

Yes

Yes

• ● Multiplexing

Yes

Yes

Yes

Yes

Yes

• ● Structures

No

No

No

No

No

• ● Arrays

Yes

Yes

Yes

Yes

Yes

Images

• ● Number of configurable images

250

100

250

250

250

• ● Permanent window/default

Yes

Yes

Yes

Yes

Yes

• ● Global image

Yes

Yes

Yes

Yes

Yes

• ● Pop-up images

No

No

No

No

• ● Slide-in images

No

No

No

No

• ● Image selection by PLC

Yes

Yes

Yes

Yes

Yes

• ● Image number in the PLC

Yes

Yes

Yes

Yes

Yes

Image objects

• ● Number of objects per image

100

100

100

100

• ● Text fields

Yes

Yes

Yes

Yes

Yes

• ● I/O fields

Yes

Yes

Yes

Yes

Yes

• ● Graphic I/O fields (graphics list)

Yes

Yes

Yes

Yes

Yes

• ● Symbolic I/O fields (text list)

Yes

Yes

Yes

Yes

Yes

• ● Date/time fields

Yes

Yes

Yes

Yes

Yes

• ● Switches

Yes

Yes

Yes

Yes

Yes

• ● Buttons

Yes

Yes

Yes

Yes

Yes

• ● Graphic display

Yes

Yes

Yes

Yes

Yes

• ● Icons

Yes

Yes

Yes

Yes

Yes

• ● Geometric objects

Yes

Yes

Yes

Yes

Yes

Complex image objects

• ● Number of complex objects per screen

10

10

10

10

10

• ● Alarm view

Yes

Yes

Yes

Yes

Yes

• ● Trend view

Yes

Yes

Yes

Yes

Yes

• ● User view

Yes

Yes

Yes

Yes

Yes

• ● Status/control

No

No

No

No

No

• ● Sm@rtClient view

No

No

No

No

No

• ● Recipe view

Yes

Yes

Yes

Yes

Yes

• ● f(x) trend view

No

No

No

No

No

• ● System diagnostics view

Yes; System message buffer of the SIMATIC S7-1200 and S7-1500

Yes

Yes; System message buffer of the SIMATIC S7-1200 and S7-1500

Yes; System message buffer of the SIMATIC S7-1200 and S7-1500

Yes; System message buffer of the SIMATIC S7-1200 and S7-1500

• ● Media Player

No

No

No

No

No

• ● HTML browser

Yes

Yes

No

Yes

• ● PDF display

No

No

No

No

No

• ● IP camera display

No

No

No

No

No

• ● Bar graphs

Yes

Yes

Yes

Yes

Yes

• ● Sliders

No

No

No

No

No

• ● Pointer instruments

No

No

No

No

No

• ● Analog/digital clock

No

No

No

No

No

Lists

• ● Number of text lists per project

300

300

300

300

• ● Number of entries per text list

100

100

100

100

• ● Number of graphics lists per project

100

100

100

100

• ● Number of entries per graphics list

100

100

100

100

Archiving

• ● Number of archives per device

2; One message and one process value archive

2

2; One message and one process value archive

2; One message and one process value archive

2

• ● Number of entries per archive

10 000

10 000

10 000

10 000

10 000

• ● Message archive

Yes

Yes

Yes

Yes

Yes

• ● Process value archive

Yes

Yes

Yes

Yes

Yes

• ● Archiving methods

• — Sequential archive

Yes

Yes

Yes

Yes

Yes

• — Short-term archive

Yes

Yes

Yes

Yes

Yes

• ● Memory location

• — Memory card

No

No

No

No

No

• — USB memory

Yes

Yes

Yes

Yes

Yes

• — Ethernet

No

No

No

No

No

• ● Data storage format

• — CSV

No

Yes

No

No

No

• — TXT

Yes

No

Yes

Yes

Yes

• — RDB

No

No

No

No

No

Security

• ● Number of user groups

50

50

50

50

50

• ● Number of user rights

32

32

32

32

• ● Number of users

50

50

50

50

• ● Password export/import

Yes

Yes; Possible via ProSave

Yes

Yes

Yes

• ● SIMATIC Logon

No

No

No

No

No

Character sets

• ● Keyboard fonts

• — US English

Yes

Yes

Yes

Yes

Yes

Transfer (upload/download)

• ● MPI/PROFIBUS DP

No

No

No

Yes

No

• ● USB

No

No

No

No

No

• ● Ethernet

Yes

Yes

Yes

No

Yes

• ● using external storage medium

Yes

Yes; Backup/restore

Yes

Yes

No

Process coupling

• ● S7-1200

Yes

Yes

Yes

Yes

Yes

• ● S7-1500

Yes

Yes

Yes

Yes

Yes

• ● S7-200

Yes

Yes

Yes

Yes

Yes

• ● S7-300/400

Yes

Yes

Yes

Yes

Yes

• ● LOGO!

Yes

Yes

Yes

Yes

Yes

• ● WinAC

Yes

Yes

Yes

Yes

Yes

• ● SINUMERIK

Yes; No access to NCK data

Yes; No access to NCK data

Yes; No access to NCK data

Yes; No access to NCK data

• ● SIMOTION

Yes

Yes

Yes

Yes

Yes

• ● Allen Bradley (EtherNet/IP)

Yes

Yes

Yes

No

Yes

• ● Allen Bradley (DF1)

No

No

No

Yes

No

• ● Mitsubishi (MC TCP/IP)

Yes

Yes

Yes

No

Yes

• ● Mitsubishi (FX)

No

No

No

Yes

No

• ● OMRON (FINS TCP)

No

No

No

No

No

• ● OMRON (Host Link)

No

No

No

Yes

No

• ● Modicon (Modbus TCP/IP)

Yes

Yes

Yes

No

Yes

• ● Modicon (Modbus RTU)

No

No

No

Yes

No

Service tools/configuration aids

• ● Backup/Restore manually

Yes

Yes

Yes

Yes

Yes

• ● Backup/Restore automatically

No

No

No

No

No

• ● Simulation

Yes

Yes

Yes

Yes

Yes

• ● Device switchover

Yes

Yes

Yes

Yes

Yes

Peripherals/Options

Printer

No

No

No

No

No

SIMATIC HMI MM memory card: Multi Media Card

No

No

No

No

No

SIMATIC HMI SD memory card: Secure Digital memory card

No

No

No

No

No

SIMATIC HMI CF memory card Compact Flash Card

No

No

No

No

USB memory

Yes

Yes; USB storage medium can be connected

Yes

Yes

Yes

SIMATIC IPC USB Flashdrive (USB stick)

Yes

Yes

Yes

Yes

SIMATIC HMI USB stick

Yes

Yes

Yes

Yes

Mechanics/material

Enclosure material (front)

• ● Plastic

Yes

Yes

Yes

Yes

Yes

• ● Aluminum

No

No

No

No

No

• ● Stainless steel

No

No

No

No

No

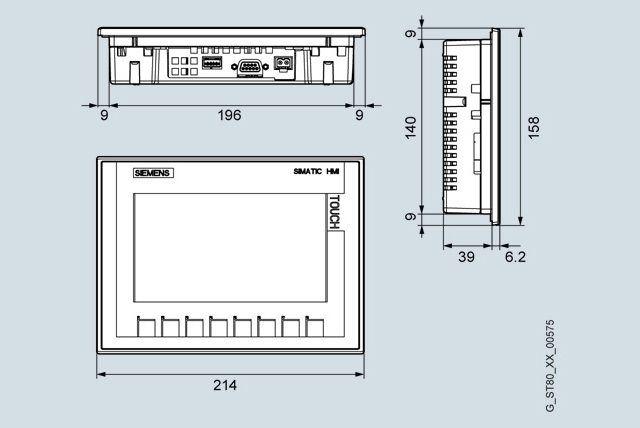

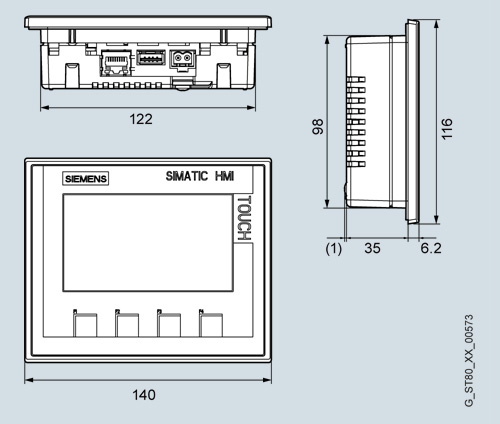

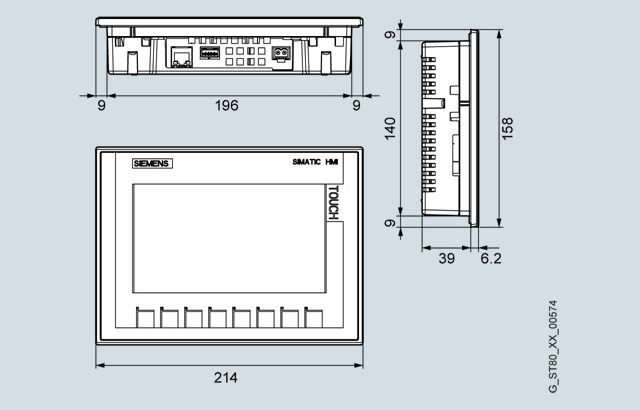

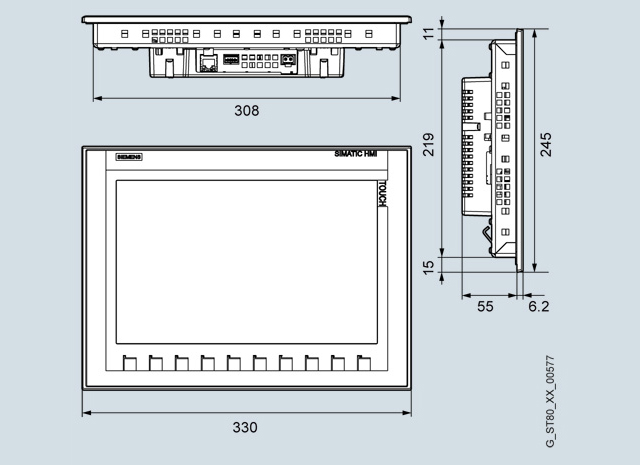

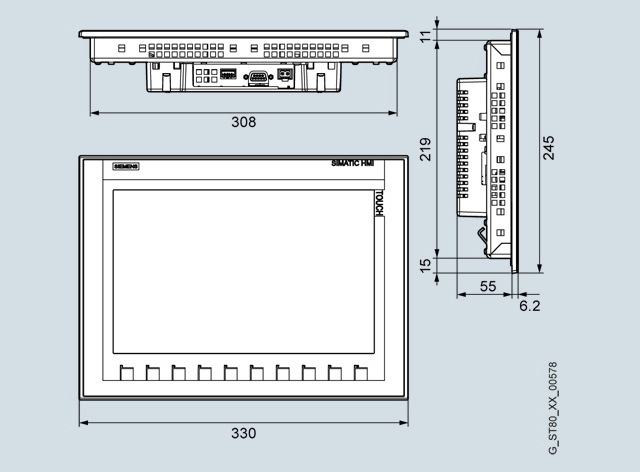

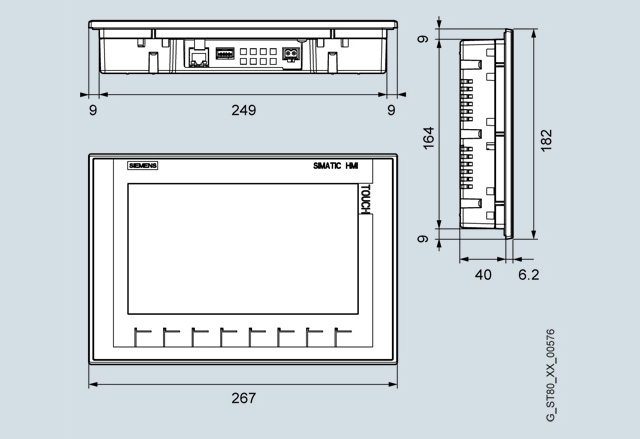

Dimensions

Width of the housing front

140 mm

140 mm

214 mm

214 mm

214 mm

Height of housing front

116 mm

116 mm

158 mm

158 mm

158 mm

Mounting cutout, width

124 mm

123 mm

198 mm

198 mm

197 mm

Mounting cutout, height

100 mm

99 mm

142 mm

142 mm

141 mm

mounting depth

34.9 mm

33 mm

39 mm

39 mm

39 mm

Weights

Weight (without packaging)

360 g

780 g

800 g

780 g

Weight (with packaging)

470 g

990 g

1 kg

990 g

General information

Product type designation

KTP900 Basic color PN

TP900 Basic Keyless

KTP1200 Basic color PN

KTP1200 Basic color DP

Display

Design of display

TFT widescreen display, LED backlighting

TFT widescreen display, LED backlighting

TFT widescreen display, LED backlighting

TFT widescreen display, LED backlighting

Screen diagonal

9 in

9 in

12 in

12 in

Display width

198 mm

198 mm

261.1 mm

261.1 mm

Display height

111.7 mm

111.7 mm

163.2 mm

163.2 mm

Number of colors

65 536

65 536

65 536

65 536

Resolution (pixels)

• ● Horizontal image resolution

800 pixel

800 pixel

1 280 pixel

1 280 pixel

• ● Vertical image resolution

480 pixel

480 pixel

800 pixel

800 pixel

Backlighting

• ● MTBF backlighting (at 25 °C)

20 000 h

20 000 h

20 000 h

20 000 h

• ● Backlight dimmable

Yes

Yes

Yes

Yes

Control elements

Keyboard

• ● Function keys

No

• — Number of function keys

8

0

10

10

• — Number of function keys with LEDs

0

0

0

0

• ● Keys with LED

No

No

No

No

• ● System keys

No

No

No

No

• ● Numeric keyboard

Yes; Onscreen keyboard

Yes; Onscreen keyboard

Yes; Onscreen keyboard

Yes; Onscreen keyboard

• ● alphanumeric keyboard

Yes; Onscreen keyboard

Yes; Onscreen keyboard

Yes; Onscreen keyboard

Yes; Onscreen keyboard

Touch operation

• ● Design as touch screen

Yes; Analog-resistive

Yes; Analog-resistive

Yes; Analog-resistive

Yes; Analog-resistive

• ● Design as multi-touch screen

No

• ● Monitor keyboard

Yes

Installation type/mounting

Mounting position

vertical

vertical

vertical

vertical

Mounting in portrait format possible

Yes

Yes

Yes

Yes

Mounting in landscape format possible

Yes

Yes

Yes

Yes

maximum permissible angle of inclination without external ventilation

35°

35°

35°

35°

Supply voltage

Type of supply voltage

DC

DC

DC

DC

Rated value (DC)

24 V

24 V

24 V

24 V

permissible range, lower limit (DC)

19.2 V

19.2 V

19.2 V

19.2 V

permissible range, upper limit (DC)

28.8 V

28.8 V

28.8 V

28.8 V

Input current

Current consumption (rated value)

230 mA

230 mA

510 mA

550 mA

Starting current inrush I²t

0.2 A²·s

0.2 A²·s

0.2 A²·s

0.2 A²·s

Power

Active power input, typ.

5.5 W

12.2 W

13.2 W

Processor

Processor type

ARM

ARM

ARM

ARM

Storage

Flash

Yes

Yes

Yes

Yes

RAM

Yes

Yes

Yes

Yes

Memory available for user data

10 Mbyte

10 Mbyte

10 Mbyte

10 Mbyte

Type of output

Acoustics

Buzzer

• ● Buzzer

Yes

Yes

Yes

Yes

• ● Speaker

No

No

No

No

Time of day

Clock

• ● Hardware clock (real-time)

Yes

Yes

Yes

Yes

• ● Software clock

Yes

Yes

Yes

Yes

• ● retentive

Yes; Back-up duration typically 6 weeks

Yes; Back-up duration typically 6 weeks

Yes; Back-up duration typically 6 weeks

Yes; Back-up duration typically 6 weeks

• ● synchronizable

Yes

Yes

Yes

Yes

Interfaces

Number of industrial Ethernet interfaces

1

1

1

0

Number of RS 485 interfaces

0

0

0

1

Number of RS 422 interfaces

0

0

0

1; together with RS 485

Number of RS 232 interfaces

0

0

0

0; with optional adapter

Number of USB interfaces

1; Up to 16 GB

1; USB 2.0, up to 16 GB respectively

1; Up to 16 GB

1; Up to 16 GB

Number of 20 mA interfaces (TTY)

0

0

0

0

Number of parallel interfaces

0

0

0

0

Number of other interfaces

0

0

0

0

Number of SD card slots

0

0

0

0

With software interfaces

No

No

No

No

Industrial Ethernet

• ● Industrial Ethernet status LED

2

2

2

0

• ● Number of ports of the integrated switch

0

Protocols

PROFINET

Yes

Yes

Yes

No

Supports protocol for PROFINET IO

No

No

No

No

IRT

No

No

No

No

PROFIBUS

No

No

No

Yes

EtherNet/IP

Yes

Yes

Yes

No

MPI

No

No

No

Yes

Protocols (Ethernet)

• ● TCP/IP

Yes

Yes

Yes

No

• ● DHCP

Yes

Yes

Yes

No

• ● SNMP

Yes

No

• ● DCP

Yes

Yes

Yes

No

• ● LLDP

Yes

Yes

Yes

No

WEB characteristics

• ● HTTP

No

No

No

No

• ● HTML

No

No

No

No

Redundancy mode

Media redundancy

• — MRP

No

No

No

No

Further protocols

• ● CAN

No

No

No

No

• ● MODBUS

Yes; Modicon (MODBUS TCP/IP)

Yes; Modicon (MODBUS TCP/IP)

Yes; Modicon (MODBUS TCP/IP)

Yes; Modicon (MODBUS RTU)

Interrupts/diagnostics/status information

Diagnoses

• ● Diagnostic information readable

No

No

No

No

EMC

Emission of radio interference acc. to EN 55 011

• ● Limit class A, for use in industrial areas

Yes

Yes

Yes

Yes

• ● Limit class B, for use in residential areas

No

No

No

No

Degree and class of protection

IP (at the front)

IP65

IP65

IP65

IP65

IP (rear)

IP20

IP20

IP20

IP20

NEMA (front)

• ● Enclosure Type 4 at the front

Yes

Yes

Yes

Yes

• ● Enclosure Type 4x at the front

Yes

Yes

Yes

Yes

Standards, approvals, certificates

CE mark

Yes

Yes

Yes

Yes

cULus

Yes

Yes

Yes

RCM (formerly C-TICK)

Yes

Yes

Yes

KC approval

Yes

Yes

Yes

Use in hazardous areas

• ● ATEX Zone 2

No

No

No

• ● ATEX Zone 22

No

No

No

• ● IECEx Zone 2

No

No

No

• ● IECEx Zone 22

No

No

No

• ● cULus Class I Zone 1

No

No

No

• ● cULus Class I Zone 2, Division 2

No

No

No

• ● FM Class I Division 2

No

No

No

Marine approval

• ● Germanischer Lloyd (GL)

Yes

Yes

Yes

• ● American Bureau of Shipping (ABS)

Yes

Yes

Yes

• ● Bureau Veritas (BV)

Yes

Yes

Yes

• ● Det Norske Veritas (DNV)

Yes

Yes

Yes

• ● Lloyds Register of Shipping (LRS)

Yes

Yes

Yes

• ● Nippon Kaiji Kyokai (Class NK)

Yes

Yes

Yes

• ● Polski Rejestr Statkow (PRS)

No

No

No

• ● Chinese Classification Society (CCS)

No

No

No

Ambient conditions

Suited for indoor use

Yes

Suited for outdoor use

No

Ambient temperature during operation

Operation (vertical installation)

• — For vertical installation, min.

0 °C

0 °C

0 °C

0 °C

• — For vertical installation, max.

50 °C

50 °C

50 °C

50 °C

Operation (max. tilt angle)

• — At maximum tilt angle, min.

0 °C

0 °C

0 °C

0 °C

• — At maximum tilt angle, max.

40 °C

40 °C

40 °C

40 °C

Operation (vertical installation, portrait format)

• — For vertical installation, min.

0 °C

0 °C

0 °C

0 °C

• — For vertical installation, max.

40 °C

40 °C

40 °C

40 °C

Operation (max. tilt angle, portrait format)

• — At maximum tilt angle, min.

0 °C

0 °C

0 °C

0 °C

• — At maximum tilt angle, max.

35 °C

35 °C

35 °C

35 °C

Ambient temperature during storage/transportation

• ● min.

-20 °C

-20 °C

-20 °C

-20 °C

• ● max.

60 °C

60 °C

60 °C

60 °C

Relative humidity

• ● Operation, max.

90 %; no condensation

90 %; no condensation

90 %; no condensation

90 %; no condensation

Operating systems

proprietary

Yes

Yes

Yes

Yes

pre-installed operating system

• ● Windows CE

No

No

No

No

Configuration

Message indicator

Yes

Yes

Yes

Yes
