    Обзор

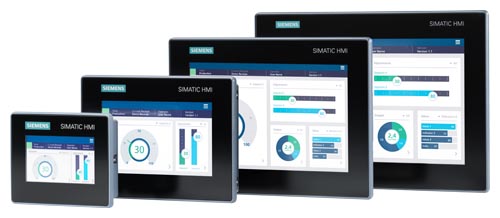

    SIMATIC HMI Unified Basic Panels

    SIMATIC HMI Unified Basic Panels consist of four different devices with varying display sizes.
    All devices come with the same number of hardware interfaces and the same functionality – just select the perfect device for your needs based on the screen size.

    Each Unified Basic Panel is available in the standard design with Siemens and SIMATIC HMI branding.

    SIMATIC WinCC Unified contains visualization, communication, alarms/warnings, administration of parameter sets, archiving of user administration.
    Furthermore, a WinCC Unified Client Operate for remote operator control and monitoring is included.

    Client access is based on native web technologies such as HTML5, SVG and JavaScript. Synchronous access for service and maintenance can be easily implemented via Sm@rt/VNC clients.

    Особенности

    • Powered by SIMATIC WinCC Unified
      SIMATIC WinCC Unified is the fundamentally redesigned visualization software in the TIA Portal.
      Once components have been created, they can be used both for PC systems and on the SIMATIC HMI Unified Basic Panels, which are part of the WinCC Unified System.
    • Operation
      Especially rugged multi-touch technology optimized for the specific requirements in industrial environments.
    • Functions for all visualization tasks:
      • Operator functions
      • Graphics and trend displays
      • Alarm system
      • Archiving
      • Management of parameter sets
      • Report creation (later)
      • User administration
    • Functionality with Java scripts:
      • Consistently scalable expandable from single-user station to distributed systems
      • Additional process visualization using any modern HTML5-capable web browser
    • Industrial Security Integrated
      • The proprietary operating system based on SIMATIC Industrial OS offers maximum security. You can deactivate or uninstall the interfaces and system apps you don’t need.
    • Part of the Totally Integrated Automation Portal V18 Update 3 or higher:
    • Support of the SIMATIC S7-1200/1500, SIMATIC S7-300/400, S7-200 and LOGO Controllers
      • Access to tags with symbolic and absolute addressing
      • Full text alarms of the SIMATIC S7-1500 Controller

    Технические данные

    Article number

    6AV2123-3DB32-0AW0

    6AV2123-3GB32-0AW0

    6AV2123-3KB32-0AW0

    6AV2123-3MB32-0AW0

    SIMATIC HMI MTP400 Unified Basic

    SIMATIC HMI MTP700 Unified Basic

    SIMATIC HMI MTP1000 Unified Basic

    SIMATIC HMI MTP1200 Unified Basic

    General information

    Product type designation

    MTP400 Unified Basic

    MTP700 Unified Basic

    MTP1000 Unified Basic

    MTP1200 Unified Basic

    Display

    Design of display

    TFT

    TFT

    TFT

    TFT

    Screen diagonal

    4.3 in

    7 in

    10.1 in

    12.1 in

    Display width

    93.6 mm

    152.4 mm

    217 mm

    261.1 mm

    Display height

    56.2 mm

    91.4 mm

    135.6 mm

    163.2 mm

    Number of colors

    16 777 216

    16 777 216

    16 777 216

    16 777 216

    Resolution (pixels)

    • ● Horizontal image resolution

    800 pixel

    800 pixel

    1 280 pixel

    1 280 pixel

    • ● Vertical image resolution

    480 pixel

    480 pixel

    800 pixel

    800 pixel

    Backlighting

    • ● MTBF backlighting (at 25 °C)

    20 000 h; At 25°C

    20 000 h; At 25°C

    20 000 h; At 25°C

    20 000 h; At 25°C

    • ● Backlight dimmable

    Yes; 10 ... 100%

    Yes; 10 ... 100%

    Yes; 10 ... 100%

    Yes; 10 ... 100%

    Control elements

    Keyboard

    • ● Numeric keyboard

    Yes; Onscreen keyboard

    Yes; Onscreen keyboard

    Yes; Onscreen keyboard

    Yes; Onscreen keyboard

    • ● alphanumeric keyboard

    Yes; Onscreen keyboard

    Yes; Onscreen keyboard

    Yes; Onscreen keyboard

    Yes; Onscreen keyboard

    Touch operation

    • ● Design as touch screen

    Yes

    Yes

    Yes

    Yes

    • ● Design as multi-touch screen

    Yes

    Yes

    Yes

    Yes

    • ● Monitor keyboard

    Yes

    Yes

    Yes

    Yes

    Installation type/mounting

    Mounting position

    vertical

    vertical

    vertical

    vertical

    Mounting in portrait format possible

    Yes

    Yes

    Yes

    Yes

    Mounting in landscape format possible

    Yes

    Yes

    Yes

    Yes

    maximum permissible angle of inclination without external ventilation

    35°

    35°

    35°

    35°

    Supply voltage

    Type of supply voltage

    DC

    DC

    DC

    DC

    Rated value (DC)

    24 V

    24 V

    24 V

    24 V

    permissible range, lower limit (DC)

    19.2 V

    19.2 V

    19.2 V

    19.2 V

    permissible range, upper limit (DC)

    28.8 V

    28.8 V

    28.8 V

    28.8 V

    Input current

    Current consumption (rated value)

    0.16 A

    0.2 A

    0.28 A

    0.29 A

    current consumption (for rated value of supply voltage), min.

    0.14 A

    0.16 A

    0.2 A

    0.24 A

    current consumption (for rated value of supply voltage), max.

    0.47 A

    0.51 A

    0.6 A

    0.67 A

    Current consumption, max.

    0.63 A; at 19.2 V

    0.69 A; at 19.2 V

    0.8 A; at 19.2 V

    0.92 A; at 19.2 V

    Starting current inrush I²t

    0.45 A²·s

    0.36 A²·s

    0.36 A²·s

    0.36 A²·s

    Power

    Active power input, typ.

    3.8 W

    8.2 W

    9.3 W

    11.1 W

    Processor

    Processor type

    ARM

    ARM

    ARM

    ARM

    Storage

    Flash

    Yes

    Yes

    Yes

    Yes

    RAM

    Yes

    Yes

    Yes

    Yes

    Type of output

    Acoustics

    • ● Buzzer

    No

    No

    No

    No

    • ● Speaker

    No

    No

    No

    No

    Time of day

    Clock

    • ● Hardware clock (real-time)

    Yes

    Yes

    Yes

    Yes

    • ● Software clock

    Yes

    Yes

    Yes

    Yes

    • ● retentive

    Yes; Back-up duration typically 6 weeks

    Yes; Back-up duration typically 6 weeks

    Yes; Back-up duration typically 6 weeks

    Yes; Back-up duration typically 6 weeks

    • ● synchronizable

    Yes

    Yes

    Yes

    Yes

    Interfaces

    Number of industrial Ethernet interfaces

    1; Gigabit Ethernet (IE/PN), RJ45

    1; Gigabit Ethernet (IE/PN), RJ45

    1; Gigabit Ethernet (IE/PN), RJ45

    1; Gigabit Ethernet (IE/PN), RJ45

    Number of RS 485 interfaces

    0

    0

    0

    0

    Number of RS 422 interfaces

    0

    0

    0

    0

    Number of USB interfaces

    2; USB 2.0

    2; USB 2.0

    2; USB 2.0

    2; USB 2.0

    Number of parallel interfaces

    0

    Number of SD card slots

    0

    0

    0

    0

    Industrial Ethernet

    • ● Industrial Ethernet status LED

    2

    2

    2

    2

    • ● Number of ports of the integrated switch

    1

    1

    1

    1

    Protocols

    PROFINET

    Yes

    Yes

    Yes

    Yes

    Supports protocol for PROFINET IO

    No

    No

    No

    No

    IRT

    No

    No

    No

    No

    MPI

    No

    No

    No

    No

    Protocols (Ethernet)

    • ● TCP/IP

    Yes

    Yes

    Yes

    Yes

    • ● DHCP

    Yes

    Yes

    Yes

    Yes

    • ● SNMP

    Yes

    Yes

    Yes

    Yes

    • ● DCP

    Yes

    Yes

    Yes

    Yes

    • ● LLDP

    Yes

    Yes

    Yes

    Yes

    Redundancy mode

    Media redundancy

    • — MRP

    No

    No

    No

    No

    Further protocols

    • ● CAN

    No

    No

    No

    No

    EMC

    Emission of radio interference acc. to EN 55 011

    • ● Limit class A, for use in industrial areas

    Yes

    Yes

    Yes

    Yes

    • ● Limit class B, for use in residential areas

    No

    No

    No

    No

    Degree and class of protection

    IP (at the front)

    IP65

    IP65

    IP65

    IP65

    IP (rear)

    IP20

    IP20

    IP20

    IP20

    NEMA (front)

    NEMA 4, NEMA 4x (when installed)

    NEMA 4, NEMA 4x (when installed)

    NEMA 4, NEMA 4x (when installed)

    NEMA 4, NEMA 4x (when installed)

    • ● Enclosure Type 4 at the front

    Yes

    Yes

    Yes

    Yes

    • ● Enclosure Type 4x at the front

    Yes

    Yes

    Yes

    Yes

    • ● Enclosure Type 12 at the front

    No

    No

    No

    No

    Standards, approvals, certificates

    CE mark

    Yes

    Yes

    Yes

    Yes

    UKCA mark

    Yes

    Yes

    Yes

    Yes

    cULus

    Yes

    Yes

    Yes

    Yes

    FM approval

    No

    No

    No

    No

    RCM (formerly C-TICK)

    Yes

    Yes

    Yes

    Yes

    KC approval

    Yes

    Yes

    Yes

    Yes

    EAC (formerly Gost-R)

    No

    No

    No

    No

    CCC

    No

    No

    No

    No

    Ecological footprint

    • ● environmental product declaration

    Yes

    Yes

    Yes

    Yes

    Global warming potential

    • — global warming potential, (total) [CO2 eq]

    89.7 kg

    162 kg

    202 kg

    234 kg

    • — global warming potential, (during production) [CO2 eq]

    16.2 kg

    23.7 kg

    41.2 kg

    49 kg

    • — global warming potential, (during operation) [CO2 eq]

    74.4 kg

    139 kg

    164 kg

    190 kg

    • — global warming potential, (after end of life cycle) [CO2 eq]

    -1.09 kg

    -1.23 kg

    -3.93 kg

    -5.2 kg

    Use in hazardous areas

    • ● ATEX Zone 2

    No

    No

    No

    No

    • ● ATEX Zone 22

    No

    No

    No

    No

    • ● IECEx Zone 2

    No

    No

    No

    No

    • ● IECEx Zone 22

    No

    No

    No

    No

    • ● cULus Class I Zone 2, Division 2

    No

    No

    No

    No

    • ● cULus Class II Division 2

    No

    No

    No

    No

    • ● FM Class I Division 2

    No

    No

    No

    No

    • ● FM Class II Division 2

    No

    No

    No

    No

    Marine approval

    • ● Germanischer Lloyd (GL)

    No; included in DNV

    No; included in DNV

    No; included in DNV

    No; included in DNV

    • ● American Bureau of Shipping (ABS)

    Yes; in preparation

    Yes; in preparation

    Yes; in preparation

    Yes; in preparation

    • ● Bureau Veritas (BV)

    Yes; in preparation

    Yes; in preparation

    Yes; in preparation

    Yes; in preparation

    • ● Det Norske Veritas (DNV)

    Yes

    Yes

    Yes

    Yes

    • ● Korean Register of Shipping (KRS)

    Yes

    Yes

    Yes

    Yes

    • ● Lloyds Register of Shipping (LRS)

    Yes

    Yes

    Yes

    Yes

    • ● Nippon Kaiji Kyokai (Class NK)

    Yes

    Yes

    Yes

    Yes

    • ● Chinese Classification Society (CCS)

    Yes

    Yes

    Yes

    Yes

    Ambient conditions

    Suited for indoor use

    Yes

    Yes

    Yes

    Yes

    Suited for outdoor use

    No

    No

    No

    No

    Ambient temperature during operation

    Operation (vertical installation)

    • — For vertical installation, min.

    0 °C

    0 °C

    0 °C

    0 °C

    • — For vertical installation, max.

    50 °C

    50 °C

    50 °C

    50 °C

    Operation (max. tilt angle)

    • — At maximum tilt angle, min.

    0 °C

    0 °C

    0 °C

    0 °C

    • — At maximum tilt angle, max.

    40 °C

    40 °C

    40 °C

    40 °C

    Operation (vertical installation, portrait format)

    • — For vertical installation, min.

    0 °C

    0 °C

    0 °C

    0 °C

    • — For vertical installation, max.

    40 °C

    40 °C

    40 °C

    40 °C

    Operation (max. tilt angle, portrait format)

    • — At maximum tilt angle, min.

    0 °C

    0 °C

    0 °C

    0 °C

    • — At maximum tilt angle, max.

    35 °C

    35 °C

    35 °C

    35 °C

    Ambient temperature during storage/transportation

    • ● min.

    -20 °C

    -20 °C

    -20 °C

    -20 °C

    • ● max.

    60 °C

    60 °C

    60 °C

    60 °C

    Relative humidity

    • ● Operation, max.

    90 %; no condensation

    90 %; no condensation

    90 %; no condensation

    90 %; no condensation

    Operating systems

    proprietary

    Yes

    Yes

    Yes

    Yes

    Configuration

    Message indicator

    Yes

    Yes

    Yes

    Yes

    Alarm system (incl. buffer and acknowledgment)

    Yes

    Yes

    Yes

    Yes

    Recipe management

    Yes

    Yes

    Yes

    Yes

    Configuration software

    • ● WinCC Advanced (TIA Portal)

    Yes

    Yes

    Yes

    Yes

    • ● WinCC Professional (TIA Portal)

    Yes

    Yes

    Yes

    Yes

    • ● WinCC Unified Basic Engineering (TIA Portal)

    Yes

    Yes

    Yes

    Yes

    • ● WinCC Unified Comfort Engineering (TIA Portal)

    Yes

    Yes

    Yes

    Yes

    • ● WinCC Unified PC Engineering (TIA Portal)

    Yes

    Yes

    Yes

    Yes

    Languages

    Online languages

    • ● Number of online/runtime languages

    32

    32

    32

    32

    Project languages

    • ● Languages per project

    32

    32

    32

    32

    Functionality under WinCC Unified

    Libraries

    Yes

    Yes

    Yes

    Yes

    Applications/options

    No

    No

    No

    No

    Number of Visual Basic Scripts

    No

    No

    No

    No

    JavaScript

    Yes

    Yes

    Yes

    Yes

    Task planner

    • ● time-controlled

    Yes

    Yes

    Yes

    Yes

    • ● task-controlled

    Yes

    Yes

    Yes

    Yes

    Help system

    • ● Number of characters per info text

    70

    70

    70

    70

    • ● Number of message texts per message

    10

    10

    10

    10

    Message system

    • ● Number of alarm classes

    32

    32

    32

    32

    • ● Bit messages

    • — Number of bit messages

    2 000

    2 000

    2 000

    2 000

    • ● Analog messages

    • — Number of analog messages

    100

    100

    100

    100

    • ● S7 alarm number procedure

    Yes

    Yes

    Yes

    Yes

    • ● System messages HMI

    Yes

    Yes

    Yes

    Yes

    • ● System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )

    Yes

    Yes

    Yes

    Yes

    • ● Number of characters per message

    512

    512

    512

    512

    • ● Number of process values per message

    10

    10

    10

    10

    • ● Acknowledgment groups

    Yes

    Yes

    Yes

    Yes

    • ● Message indicator

    No

    No

    No

    No

    • ● Message buffer

    Yes; Configured as alarm archive

    Yes; Configured as alarm archive

    Yes; Configured as alarm archive

    Yes; Configured as alarm archive

    • — Circulating buffer

    Yes

    Yes

    Yes

    Yes

    • — retentive

    Yes

    Yes

    Yes

    Yes

    • — maintenance-free

    Yes

    Yes

    Yes

    Yes

    Parameter set management (recipes)

    • ● Number of parameter set types

    250

    250

    250

    250

    • ● Parameter sets per parameter set type

    250

    250

    250

    250

    • ● Entries per parameter set

    250

    250

    250

    250

    • ● Size of internal parameter set memory

    5 Mbyte

    5 Mbyte

    5 Mbyte

    5 Mbyte

    • ● Parameter set memory expandable

    Yes

    Yes

    Yes

    Yes

    Variables

    • ● Number of variables per device

    1 000

    1 000

    1 000

    1 000

    • ● Number of variables per screen

    300

    300

    300

    300

    • ● Limit values

    Yes

    Yes

    Yes

    Yes

    • ● Structures

    Yes

    Yes

    Yes

    Yes

    • ● Arrays

    Yes

    Yes

    Yes

    Yes

    Images

    • ● Number of configurable images

    300

    300

    300

    300

    • ● Faceplate

    Yes

    Yes

    Yes

    Yes

    Image objects

    • ● Number of objects per image

    600

    600

    600

    600

    • ● Picture window

    Yes

    Yes

    Yes

    Yes

    • ● Text fields

    Yes

    Yes

    Yes

    Yes

    • ● I/O fields

    Yes

    Yes

    Yes

    Yes

    • ● Graphic I/O fields (graphics list)

    Yes

    Yes

    Yes

    Yes

    • ● Symbolic I/O fields (text list)

    Yes

    Yes

    Yes

    Yes

    • ● Scalable Vector Graphics (SVG)

    Yes

    Yes

    Yes

    Yes

    • ● Date/time fields

    Yes

    Yes

    Yes

    Yes

    • ● Checkbox

    Yes

    Yes

    Yes

    Yes

    • ● Option button

    Yes

    Yes

    Yes

    Yes

    • ● Switches

    Yes

    Yes

    Yes

    Yes

    • ● Buttons

    Yes

    Yes

    Yes

    Yes

    • ● Graphic display

    Yes

    Yes

    Yes

    Yes

    • ● Icons

    Yes

    Yes

    Yes

    Yes

    • ● Custom web display

    No

    No

    No

    No

    • ● Geometric objects

    Yes

    Yes

    Yes

    Yes

    Complex image objects

    • ● Number of complex objects per screen

    5

    5

    5

    5

    • ● Alarm view

    Yes

    Yes

    Yes

    Yes

    • ● Trend view

    Yes

    Yes

    Yes

    Yes

    • ● User view

    Yes

    Yes

    Yes

    Yes

    • ● Status/control

    Yes

    Yes

    Yes

    Yes

    • ● Parameter set display

    Yes

    Yes

    Yes

    Yes

    • ● HTML browser

    Yes

    Yes

    Yes

    Yes

    • ● Bar graphs

    Yes

    Yes

    Yes

    Yes

    • ● Sliders

    Yes

    Yes

    Yes

    Yes

    • ● Pointer instruments

    Yes

    Yes

    Yes

    Yes

    • ● Analog/digital clock

    Yes

    Yes

    Yes

    Yes

    Lists

    • ● Number of text lists per project

    300

    300

    300

    300

    • ● Number of entries per text list

    250

    250

    250

    250

    • ● Number of graphics lists per project

    100

    100

    100

    100

    • ● Number of entries per graphics list

    250

    250

    250

    250

    Archiving

    • ● Number of archives per device

    10

    10

    10

    10

    • ● Number of entries per archive

    50 000

    50 000

    50 000

    50 000

    • ● Message archive

    Yes

    Yes

    Yes

    Yes

    • ● Process value archive

    Yes

    Yes

    Yes

    Yes

    • ● Archiving methods

    • — Sequential archive

    Yes

    Yes

    Yes

    Yes

    • — Short-term archive

    Yes

    Yes

    Yes

    Yes

    • ● Memory location

    • — Memory card

    No

    No

    No

    No

    • — USB memory

    Yes

    Yes

    Yes

    Yes

    • — Ethernet

    No

    No

    No

    No

    Security

    • ● Number of roles

    50

    50

    50

    50

    • ● Number of function rights

    20; V18

    20; V18

    20; V18

    20; V18

    • ● Number of users

    200

    200

    200

    200

    • ● Password export/import

    Yes

    Yes

    Yes

    Yes

    • ● Central user administration

    Yes

    Yes

    Yes

    Yes

    Transfer (upload/download)

    • ● USB

    Yes

    Yes

    Yes

    Yes

    • ● Ethernet

    Yes

    Yes

    Yes

    Yes

    • ● using external storage medium

    Yes

    Yes

    Yes

    Yes

    Process coupling

    • ● S7-1200

    Yes

    Yes

    Yes

    Yes

    • ● S7-1500

    Yes

    Yes

    Yes

    Yes

    • ● S7-200

    No

    No

    No

    No

    • ● S7-300/400

    Yes

    Yes

    Yes

    Yes

    • ● Number of S7 connections

    8

    8

    8

    8

    • ● LOGO!

    Yes; as of WinCC Unified V20

    Yes; as of WinCC Unified V20

    Yes; as of WinCC Unified V20

    Yes; as of WinCC Unified V20

    • ● SIMOTION

    No

    No

    No

    No

    • ● OPC UA Client

    Yes

    Yes

    Yes

    Yes

    • ● OPC UA Server

    No

    No

    No

    No

    • ● Software Controller/Open Controller

    No

    No

    No

    No

    Service tools/configuration aids

    • ● Backup/Restore manually

    Yes

    Yes

    Yes

    Yes

    • ● Backup/Restore automatically

    No

    No

    No

    No

    • ● Simulation

    Yes

    Yes

    Yes

    Yes

    • ● Device switchover

    Yes

    Yes

    Yes

    Yes

    Peripherals/Options

    Peripherals

    Barcode reader

    Barcode reader

    Barcode reader

    Barcode reader

    Printer

    No

    No

    No

    No

    SIMATIC HMI MM memory card: Multi Media Card

    No

    No

    No

    No

    SIMATIC HMI SD memory card: Secure Digital memory card

    No

    No

    No

    No

    SIMATIC HMI CF memory card Compact Flash Card

    No

    No

    No

    No

    USB memory

    Yes

    Yes

    Yes

    Yes

    SIMATIC IPC USB Flashdrive (USB stick)

    Yes

    Yes

    Yes

    Yes

    SIMATIC HMI USB stick

    Yes

    Yes

    Yes

    Yes

    Network camera

    No

    No

    No

    No

    Mechanics/material

    Enclosure material (front)

    • ● Plastic

    Yes

    Yes

    Yes

    Yes

    Dimensions

    Width of the housing front

    140 mm

    214 mm

    280 mm

    326 mm

    Height of housing front

    116 mm

    158 mm

    205 mm

    237 mm

    Mounting cutout, width

    123 mm

    197 mm

    264 mm

    310 mm

    Mounting cutout, height

    99 mm

    141 mm

    189 mm

    221 mm

    mounting depth

    36 mm

    36 mm

    55 mm

    55 mm

    Weights

    Weight (without packaging)

    0.45 kg

    0.85 kg

    1.55 kg

    2.08 kg

    Weight (with packaging)

    0.53 kg

    1.1 kg

    2.22 kg

    2.77 kg

    Ответственный редактор / Инженер

    Директор «Би Энд Би Инжиниринг»
    «Описание оборудования на этой странице составлено на основе нашего 10-летнего опыта работы в сфере пневматического оборудования, запорной арматуры и промышленной автоматизации. Если у вас есть вопросы или комментарии — напишите мне лично».
