RF650A

product brand name

SIMATIC RF

Technical Product Detail Page

suitability for operation

SIMATIC RF600

radio frequencies

transmission frequency

865 ... 928 MHz

electrical data

antenna gain compared to spherical radiator

• ● with circular radiation

4 dB

impedance

50 Ω

polarization

Circular

standing wave ratio (VSWR) maximum

1.45

radiating angle of the antenna

• ● horizontal

90°

• ● vertical

76°

type of electrical connection of the antenna

RP-TNC

design of plug-in connection

male

mechanical data

material

Pocan

color

Pastel turquoise

tightening torque of the screw for securing the equipment maximum

2 N·m

mounting distance

• ● relating to metal surfaces recommended minimum

0 m

ambient conditions

ambient temperature

• ● during operation

-25 ... +75 °C

• ● during storage

-40 ... +85 °C

• ● during transport

-40 ... +85 °C

protection class IP

IP65

shock acceleration

300 m/s²

vibrational acceleration

100 m/s²

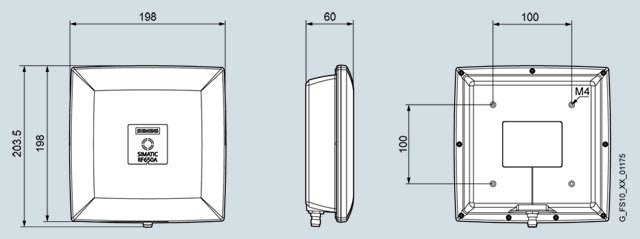

design, dimensions and weights

width

198 mm

height

198 mm

depth

60 mm

net weight

680 g

fastening method

4 screws M4 according to VESA 100, optional with articulated bracket by using antenna mounting kit

wire length of antenna cable

0 m

product features, product functions, product components general

product feature silicon-free

Yes

standards, specifications, approvals

certificate of suitability

CE (according to R&TTE), FCC (Title 47, Part 15.247), cULus

certificate of suitability

• ● IECEx

No

product function is supported identification link

Yes; acc. to IEC 61406-1:2022

accessories

accessories

Antenna cables 1 to 40 m
