    Обзор

    The managed SCALANCE XB-200 switches are optimized for setting up 10/100 Mbps Industrial Ethernet networks in line, star or ring topologies

    • Electrical and optical node or network connections can be implemented using 8, 13 or 16 RJ45 ports (10/100 Mbps) or 2 or 3 fiber-optic ports (100 Mbps). The LD (Long Distance) variants offer a transmission range of up to 26 km (XB205-3LD and XB206-2LD)
    • Rugged plastic enclosure
    • Diagnostics on the device by means of LEDs (power, link status, data communication)
    • The devices feature SNMP access, integral web server, remote diagnostics, and signaling over the network.
    • Diagnostics and parameterization via web page or console port
    • Support of the two industrial protocols, PROFINET and EtherNet/IP, in the same device (software-switchable)
    • All device versions available with default setting for both PROFINET and EtherNet/IP

    Product variants

    • Switches with electrical ports:
      • SCALANCE XB208;
        8 x 10/100 Mbps RJ45 port, electrical
      • SCALANCE XB216;
        16 x 10/100 Mbps RJ45 port, electrical
    • Switches with electrical and optical ports
      • SCALANCE XB205-3 (ST);
        5 x 10/100 Mbps RJ45 port, electrical
        3 x 100 Mbps ST/BFOC port, optical
      • SCALANCE XB205-3 (SC):
        5 x 10/100 Mbps RJ45 port, electrical
        3 x 100 Mbps SC port, optical
      • SCALANCE XB205-3 LD (SC);
        5 x 10/100 Mbps RJ45 port, electrical
        3 x 100 Mbps SC port, optical (up to 26 km)
      • SCALANCE XB206-2 (ST);
        6 x 10/100 Mbps RJ45 port, electrical
        2 x 100 Mbps ST/BFOC port, optical
      • SCALANCE XB206-2 (SC);
        6 x 10/100 Mbps RJ45 port, electrical
        2 x 100 Mbps SC port, optical
      • SCALANCE XB206-2LD (SC);
        6 x 10/100 Mbps RJ45 port, electrical
        2 x 100 Mbps SC port, optical (up to 26 km)
      • SCALANCE XB213-3 (ST);
        13 x 10/100 Mbps RJ45 port, electrical
        3 x 100 Mbps ST/BFOC port, optical
      • SCALANCE XB213-3 (SC);
        13 x 10/100 Mbps RJ45 port, electrical
        3 x 100 Mbps SC port, optical
      • SCALANCE XB213-3 LD (SC);
        13 x 10/100 Mbps RJ45 port, electrical
        3 x 100 Mbps SC port, optical

    Особенности

    • Ideal solution for configuring Ethernet line, ring and star topologies
    • High network availability due to design of redundant ring structures on the basis of High Speed Redundancy (HRP) or Media Redundancy Protocol (MRP), redundancy manager integrated
    • Quick and easy diagnosis with LEDs on the device, using integral web server and via SNMP
    • Integration of SCALANCE XB-200 switches in existing network management systems (e.g. SINEC NMS) through SNMP access
    • Load limiting when using multicast-based protocols (Voice over IP, Video) thanks to IGMP Snooping/Querier and additional multicast and broadcast limiting per port
    • Uncrossed connecting cables can be used due to the integrated autocrossover function
    • Support of the two industrial protocols, PROFINET and EtherNet/IP, in the same device
    • Low-maintenance operation thanks to fanless construction
    • Support of VLANs permits integration into Enterprise Security Policies

    Область применения

    The SCALANCE XB-200 Industrial Ethernet Switches are simple, low-cost Industrial Ethernet switches that contain the necessary software functionalities for automation with various protocols. The devices with degree of protection IP20 are designed for operation in the control cabinet.

    Features:

    • Device diagnostics with LEDs (power, link status, data communication)
    • Remote diagnostics possible via PROFINET, Ethernet/IP, SNMP, CLI and web browser
    • Switchover between the two industry protocols PROFINET and Ethernet/IP is possible in the device

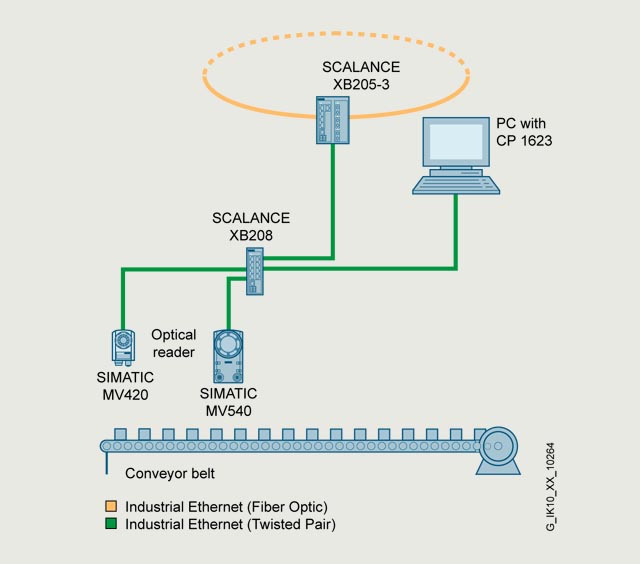

    Integration of code-reading cameras into the machine network with SCALANCE XB-200

    Дизайн

    The SCALANCE XB-200 Industrial Ethernet switches in their rugged plastic enclosure are optimized for mounting on DIN rails.

    The devices are designed with IP20 degree of protection.

    The switches have a 6-pin terminal block for connecting the redundant supply voltage (24 V DC) and the grounding. The port LEDs provide information on the status (power, link status, data traffic).

    Ethernet interfaces:

    • 10/100BaseTX, RJ45 connection;
      8/6 or 16/13 x RJ45 socket, automatic data transfer rate detection, with autosensing and autocrossover function
    • 100 Mbps, ST(BFOC) FO connection;
      2/3 x ST(BFOC) FO socket (multimode)
    • 100 Mbps, SC-FO connection;
      2/3 x SC-FO socket (multimode)
    • 100 Mbps, SC-LD-FO connection;
      2/3 x SC-LD-FO socket (single-mode)

    Other interfaces:

    • 6-pin terminal block for redundant voltage infeed (24 V DC) and grounding
    • 1 x RJ11 as connection for the serial interface

    The port LEDs provide information on the status (power, link status, data traffic).

    Remote diagnostics is possible by means SNMP, web browser and CLI.

    Функции

    • High-speed redundancy in the ring with High Speed Redundancy (HRP) or PROFINET-compliant ring redundancy (MRP)
      Reliable communication is achieved by closing an optical/electrical line with XR-500, XM-400, X-300 or X-200 switches to form an HSR ring. The SCALANCE XB-200 switches have an integral redundancy manager (RM) which monitors the function of the network continuously. It recognizes the failure of a transmission link or the failure of a SCALANCE X switch in the ring and activates the substitute path.
    • Redundant interfacing to company networks
      The SCALANCE XB-200 switches support the standardized redundancy procedures Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP). This enables a subnetwork to be connected redundantly to a higher level corporate network with reduced requirements for the reconfiguration time (in the order of seconds).
    • Support of virtual networks (VLAN)
      For structuring Industrial Ethernet networks with a fast-growing number of nodes, a physically existing network can be divided into several virtual subnetworks.
    • Load limiting with use of multicast protocols (e.g. querier, video)
      By learning the multicast sources and targets (IGMP snooping), SCALANCE XB-200 switches can also filter multicast data traffic and therefore limit the load in the network. Multicast and broadcast traffic can be limited.

    Network topology and network configuration

    The network topology can easily be adapted to the structure of the plant with SCALANCE XB-200 Industrial Ethernet switches.

    The following network structures and combinations of structures can be implemented:

    • Fast Ethernet rings with fast media redundancy
    • At the same time, the SCALANCE XB-200 switches support redundant connection of the ring structure to the corporate network with a Rapid Spanning Tree.
    • Star topology with SCALANCE XB-200 switches
      Each SCALANCE XB-200 switch represents a neutral point which can interconnect as many as 8/16 nodes or subnetworks.

    When configuring the network, the following boundary conditions must be observed:

    • Maximum cable length for twisted pair:
      • Max. 100 m with Industrial Ethernet FC cable and Industrial Ethernet FC plugs
      • Max. 10 m using patches with TP cord
    • Maximum cable length between two SC connections (note transceiver data):
      • 5 km (100 Mbps)
    • Maximum cable length between two SC LD connections (note transceiver data):
      • 26 km (100 Mbps)
    • IP address:
      In the case of SCALANCE XB-200 Industrial Ethernet switches, the IP address is assigned by means of the Dynamic Host Configuration Protocol (DHCP). If no corresponding server is available in the network, the IP address can be assigned using DCP.

    Commissioning and diagnostics

    PROFINET diagnostic interrupts from SCALANCE XB-200 switches can be displayed with the appropriate SIMATIC engineering tools and processed in the PLC with an expanded diagnostics function. The engineering outlay for the PLC and HMI has been drastically reduced due to the complete integration in the SIMATIC concept for system error messages.

    SCALANCE XB-200 Industrial Ethernet switches can also be integrated in a network management system (e.g. SINEC NMS) using the standardized Simple Network Management Protocol (SNMP). In the event of faults in the device, error messages (SNMP traps) can be sent to a network management system (e.g. SINEC NMS) or as an email to a specified network administrator.

    The integrated web server enables configuration and diagnostics settings to be made using a standard web browser (e.g. port configuration). Statistical information can also be read out over the web server (e.g. port capacity utilization). Further access is possible via CLI, by means of which the device can be parameterized, managed and diagnosed.

    The following information is displayed on site by LEDs:

    • Power
    • Port status
    • Data traffic

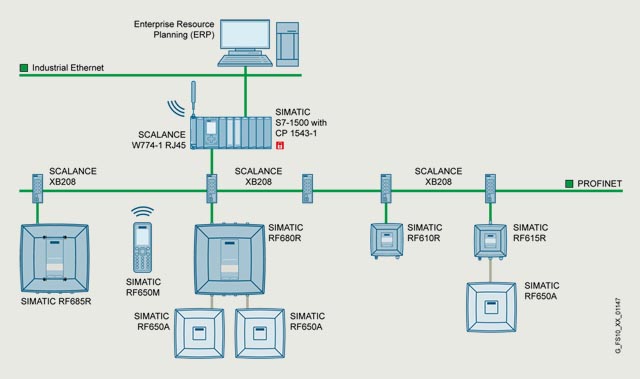

    Integration of SIMATIC Ident Readers into a production network

    Технические данные

    Article number

    6GK5213-3BD00-2AB2
    6GK5213-3BD00-2TB2

    6GK5213-3BF00-2AB2
    6GK5213-3BF00-2TB2

    6GK5206-2BB00-2AB2

    6GK5206-2BB00-2TB2

    6GK5206-2BD00-2AB2

    6GK5206-2BD00-2TB2

    6GK5206-2BF00-2AB2

    6GK5206-2BF00-2TB2

    product type designation

    product brand name

    SCALANCE

    SCALANCE

    SCALANCE

    SCALANCE

    SCALANCE

    SCALANCE

    SCALANCE

    SCALANCE

    product type designation

    XB213-3

    XB213-3LD

    XB206-2

    XB206-2 (E/IP def.)

    XB206-2

    XB206-2 (E/IP def.)

    XB206-2LD

    XB206-2LD (E/IP def.)

    transfer rate

    transfer rate

    10 Mbit/s, 100 Mbit/s

    10 Mbit/s, 100 Mbit/s

    10 Mbit/s, 100 Mbit/s

    10 Mbit/s, 100 Mbit/s

    10 Mbit/s, 100 Mbit/s

    10 Mbit/s, 100 Mbit/s

    10 Mbit/s, 100 Mbit/s

    10 Mbit/s, 100 Mbit/s

    interfaces for communication integrated

    number of electrical connections

    • ● for network components or terminal equipment

    13; RJ45

    13; RJ45

    6; RJ45

    6; RJ45

    6; RJ45

    6; RJ45

    6; RJ45

    6; RJ45

    number of 100 Mbit/s ST(BFOC) ports

    • ● for multimode

    2

    2

    number of 100 Mbit/s SC ports

    • ● for multimode

    3

    2

    2

    • ● for single mode (LD)

    3

    2

    2

    transmission method of the optical interface

    100BaseFX

    100BaseLX LD

    100BaseFX

    100BaseFX

    100BaseFX

    100BaseFX

    100BaseLX LD

    100BaseLX LD

    interfaces other

    number of electrical connections

    • ● for operator console

    1

    1

    1

    1

    1

    1

    1

    1

    • ● for power supply

    1

    1

    1

    1

    1

    1

    1

    1

    type of electrical connection

    • ● for operator console

    RJ11

    RJ11

    RJ11

    RJ11

    RJ11

    RJ11

    RJ11

    RJ11

    • ● for management purposes

    RJ45

    RJ45

    RJ45

    RJ45

    RJ45

    RJ45

    RJ45

    RJ45

    supply voltage, current consumption, power loss

    product component connection for redundant voltage supply

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    type of voltage 1 of the supply voltage

    DC

    DC

    DC

    DC

    DC

    DC

    DC

    DC

    • ● supply voltage 1 rated value

    24 V

    24 V

    24 V

    24 V

    24 V

    24 V

    24 V

    24 V

    • ● power loss [W] 1 rated value

    9.8 W

    9.6 W

    7.2 W

    7.2 W

    7.2 W

    7.2 W

    7.2 W

    7.2 W

    • ● consumed current 1 maximum

    0.41 A

    0.4 A

    0.3 A

    0.3 A

    0.3 A

    0.3 A

    0.3 A

    0.3 A

    • ● type of electrical connection 1 for power supply

    6-pole terminal block

    6-pole terminal block

    6-pole terminal block

    6-pole terminal block

    6-pole terminal block

    6-pole terminal block

    6-pole terminal block

    6-pole terminal block

    • ● product component 1 fusing at power supply input

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    ambient conditions

    ambient temperature

    • ● during operation

    0 ... 60 °C

    0 ... 60 °C

    0 ... 60 °C

    0 ... 60 °C

    0 ... 60 °C

    0 ... 60 °C

    0 ... 60 °C

    0 ... 60 °C

    • ● during storage

    -40 ... +70 °C

    -40 ... +70 °C

    -40 ... +70 °C

    -40 ... +70 °C

    -40 ... +70 °C

    -40 ... +70 °C

    -40 ... +70 °C

    -40 ... +70 °C

    • ● during transport

    -40 ... +70 °C

    -40 ... +70 °C

    -40 ... +70 °C

    -40 ... +70 °C

    -40 ... +70 °C

    -40 ... +70 °C

    -40 ... +70 °C

    -40 ... +70 °C

    relative humidity

    • ● at 25 °C without condensation during operation maximum

    95 %

    95 %

    95 %

    95 %

    95 %

    95 %

    95 %

    95 %

    protection class IP

    IP20

    IP20

    IP20

    IP20

    IP20

    IP20

    IP20

    IP20

    design, dimensions and weights

    design

    compact

    compact

    compact

    compact

    compact

    compact

    compact

    compact

    width

    120 mm

    120 mm

    80 mm

    80 mm

    80 mm

    80 mm

    80 mm

    80 mm

    height

    117 mm

    117 mm

    117 mm

    117 mm

    117 mm

    117 mm

    117 mm

    117 mm

    depth

    109 mm

    109 mm

    109 mm

    109 mm

    109 mm

    109 mm

    109 mm

    109 mm

    net weight

    0.5 kg

    0.5 kg

    0.35 kg

    0.35 kg

    0.35 kg

    0.35 kg

    0.35 kg

    0.35 kg

    material of the enclosure

    Polycarbonate (PC-GF10)

    Polycarbonate (PC-GF10)

    Polycarbonate (PC-GF10)

    Polycarbonate (PC-GF10)

    Polycarbonate (PC-GF10)

    Polycarbonate (PC-GF10)

    Polycarbonate (PC-GF10)

    Polycarbonate (PC-GF10)

    fastening method

    • ● 35 mm DIN-rail mounting

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    product features, product functions, product components general

    cascading in the case of a redundant ring at reconfiguration time of <\~0.3\~s

    50

    50

    50

    50

    50

    50

    50

    50

    cascading in cases of star topology

    any (depending only on signal propagation time)

    any (depending only on signal propagation time)

    any (depending only on signal propagation time)

    any (depending only on signal propagation time)

    any (depending only on signal propagation time)

    any (depending only on signal propagation time)

    any (depending only on signal propagation time)

    any (depending only on signal propagation time)

    product functions management, configuration, engineering

    product function

    • ● CLI

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● web-based management

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● MIB support

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● TRAPs via email

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● configuration with STEP 7

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● RMON

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● port mirroring

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● multiport mirroring

    Yes

    Yes

    No

    No

    Yes

    Yes

    No

    No

    • ● CoS

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● PROFINET IO diagnosis

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● switch-managed

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    PROFINET conformity class

    B

    B

    B

    B

    B

    B

    B

    B

    network load class according to PROFINET

    III

    III

    III

    III

    III

    III

    telegram length for Ethernet maximum

    1 632 byte

    1 632 byte

    1 632 byte

    1 632 byte

    1 632 byte

    1 632 byte

    1 632 byte

    1 632 byte

    protocol is supported

    • ● Telnet

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● HTTP

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● HTTPS

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● TFTP

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● SFTP

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● BOOTP

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● DCP

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● LLDP

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● EtherNet/IP

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● SNMP v1

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● SNMP v2

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● SNMP v3

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● IGMP (snooping/querier)

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    identification & maintenance function

    • ● I&M0 - device-specific information

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● I&M1 - higher level designation/location designation

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    product functions diagnostics

    product function

    • ● port diagnostics

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● statistics Packet Size

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● statistics packet type

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● error statistics

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● SysLog

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    product functions VLAN

    product function

    • ● VLAN - port based

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    number of VLANs maximum

    257

    257

    257

    257

    257

    257

    number of VLANs - dynamic maximum

    257

    257

    257

    257

    257

    257

    number of VLANs at ring redundancy (HRP; MRP; standby link)

    257

    257

    257

    257

    257

    257

    257

    257

    product functions DHCP

    product function

    • ● DHCP client

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    product functions redundancy

    protocol is supported Media Redundancy Protocol (MRP)

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    product function

    • ● media redundancy protocol (MRP) with redundancy manager

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● Media Redundancy Protocol Interconnection (MRP-I)

    Yes; LC mode

    Yes; LC mode

    Yes; LC mode

    Yes; LC mode

    Yes; LC mode

    Yes; LC mode

    Yes; LC mode

    Yes; LC mode

    • ● of the PROFINET IO device is supported PROFINET system redundancy

    No

    No

    No

    No

    No

    No

    No

    • ● ring redundancy

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● high speed redundancy protocol (HRP) with redundancy manager

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● high speed redundancy protocol (HRP) with standby redundancy

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● redundancy procedure STP

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● redundancy procedure RSTP

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● redundancy procedure RSTP+

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● Parallel Redundancy Protocol (PRP)/operation in the PRP-network

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● passive listening

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    product functions security

    product function

    • ● IEEE 802.1x (radius)

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● RADIUS client

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● broadcast/multicast/unicast limiter

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● broadcast blocking

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    protocol is supported

    • ● SSH

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● SSL

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    product functions time

    product function

    • ● SICLOCK support

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● NTP-client

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● SNTP client

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    protocol is supported

    • ● SNTP

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    standards, specifications, approvals

    certificate of suitability

    • ● CE marking

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● cULus approval

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● KC approval

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● Regulatory Compliance Mark (RCM)

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    standard

    • ● for EMC interference emission

    EN 61000-6-4 (Class A)

    EN 61000-6-4 (Class A)

    EN 61000-6-4 (Class A)

    EN 61000-6-4 (Class A)

    EN 61000-6-4 (Class A)

    EN 61000-6-4 (Class A)

    EN 61000-6-4 (Class A)

    EN 61000-6-4 (Class A)

    • ● for immunity to EMC

    EN 61000-6-2

    EN 61000-6-2

    EN 61000-6-2

    EN 61000-6-2

    EN 61000-6-2

    EN 61000-6-2

    EN 61000-6-2

    EN 61000-6-2

    • ● for safety from CSA and UL

    UL 60950-1 E115352, CSA C22.2 No. 60950-1

    UL 60950-1 E115352, CSA C22.2 No. 60950-1

    UL 60950-1 E115352, CSA C22.2 No. 60950-1

    UL 60950-1 E115352, CSA C22.2 No. 60950-1

    UL 60950-1 E115352, CSA C22.2 No. 60950-1

    UL 60950-1 E115352, CSA C22.2 No. 60950-1

    UL 60950-1 E115352, CSA C22.2 No. 60950-1

    UL 60950-1 E115352, CSA C22.2 No. 60950-1

    standards, specifications, approvals hazardous environments

    certificate of suitability

    • ● ATEX

    Yes

    Yes

    • ● IECEx

    Yes

    Yes

    • ● CCC for hazardous zone according to GB standard

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● FM registration

    Yes

    Yes

    Yes

    Yes

    Yes

    standards, specifications, approvals other

    certificate of suitability

    • ● RoHS conformity

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    IT security for industrial automation systems according to IEC 62443-4-2:2019

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    standards, specifications, approvals Environmental Product Declaration

    Environmental Product Declaration

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    global warming potential [CO2 eq]

    • ● total

    347.88999 kg

    341.88 kg

    266.76999 kg

    266.76999 kg

    266.76999 kg

    266.76999 kg

    260.75999 kg

    260.75999 kg

    • ● during manufacturing

    40.94 kg

    40.94 kg

    40.94 kg

    40.94 kg

    40.94 kg

    40.94 kg

    40.94 kg

    40.94 kg

    • ● during operation

    306.44 kg

    300.43 kg

    225.31999 kg

    225.31999 kg

    225.31999 kg

    225.31999 kg

    219.31 kg

    219.31 kg

    • ● after end of life

    0.51 kg

    0.51 kg

    0.51 kg

    0.51 kg

    0.51 kg

    0.51 kg

    0.51 kg

    0.51 kg

    product functions general

    MTBF

    45 a

    40 a

    55 a

    55 a

    55 a

    55 a

    50 a

    50 a

    product function is supported identification link

    Yes; acc. to IEC 61406-1:2022

    Yes; acc. to IEC 61406-1:2022

    Yes; acc. to IEC 61406-1:2022

    Yes; acc. to IEC 61406-1:2022

    Yes; acc. to IEC 61406-1:2022

    further information internet links

    internet link

    • ● to website: Selection guide for cables and connectors

    • ● to web page: selection aid TIA Selection Tool

    • ● to website: Industrial communication

    • ● to website: Image database

    • ● to website: CAx-Download-Manager

    • ● to website: Industry Online Support

    Дальнейшая информация

    Selection Tool:

    To support the selection of SCALANCE network components, the TIA Selection Tool is available at:

    www.siemens.com/tst

    Ordering overview:

    You can find more information on the FastConnect range in the "Cabling technology for communication networks in industry" ordering overview.

    Ответственный редактор / Инженер

    Директор «Би Энд Би Инжиниринг»
    «Описание оборудования на этой странице составлено на основе нашего 10-летнего опыта работы в сфере пневматического оборудования, запорной арматуры и промышленной автоматизации. Если у вас есть вопросы или комментарии — напишите мне лично».
