    Обзор

    The managed Industrial Ethernet switches of the SCALANCE XC-200 product line are optimized for setting up Industrial Ethernet networks with data transfer rates of 10/100/1000 Mbps as well as 2 x 10 Gbps (SCALANCE XC206-2G PoE and XC216-3G PoE only) in line, star and ring topology. More information:

    • Rugged enclosure in SIMATIC S7-1500 format, for mounting on DIN rails and SIMATIC S7-300 and S7-1500 mounting rails, or for direct wall mounting
    • Electrical or optical connection to stations or networks according to port characteristics of the devices
    • Versions with transfer rates up to 10 Gbps optical or 1 Gbps electrical
    • Combo ports for the flexible use of interfaces: A combo port consists of an electric port and an SFP slot. Only one of the two ports can ever be active. If an SFP plug-in transceiver is inserted, the electric port is deactivated
    • Rugged station connections with industry-standard RJ45 plug-in connectors that offer additional strain and bending strain relief thanks to latching on the enclosure
    • Redundant power supply
    • Console port for direct access to device
    • Display of comprehensive operating mode and status information via LEDs and selection pushbuttons
    • Signaling contact for connecting to an error signaling system
    • Slot for optional C-PLUG removable data storage medium for easy device replacement without additional equipment such as a Field PG
    • Grounding screw for external ground connection
    • Flexible use in the automation environment due to switchover between the two industry protocols PROFINET and EtherNet/IP in the device
    • Extensive diagnostics options: Full integration in PROFINET and EtherNet/IP diagnostics, SNMP access, integrated web server and automatic email transmission function for remote diagnostics and signaling via the network
    • Integration into the SINEC NMS Network Management System for end-to-end network diagnostics with central firmware management
    • Virtual LANs (VLAN) for easy structuring of large networks into smaller, logical subnetworks. Reasons for the subdivision into logical subnetworks are, for example, separation of the Ethernet networks to reduce the broadcast load, separation of sensitive areas from the main network, and subdivision of the network into logical working groups
    • By learning the multicast sources and destinations (IGMP, Internet Group Management Protocol Snooping), SCALANCE XC-200 switches can also filter multicast data traffic and thus limit the load on the network
    • Integrated security functions offer protection against unauthorized network access and configuration (e.g. authentication via IEEE 802.1X/ RADIUS)
    • The PoE versions support Power over Ethernet (PoE). This allows nodes such as WLAN access points (e.g. SCALANCE W) or cameras (e.g. SIMATIC MV500) to be supplied with power in addition to data. Depending on the version, the PoE switches are supplied with power either via 24 V DC or via 54 V DC.
    • A PoE power budget of 120 W is available for the PoE 24 V DC versions. With the 54 V DC versions, a power budget of up to 300 W can be realized using a 54 V DC power supply. The available power budget can be distributed to the PoE ports as required. Up to 30 W power per port according to IEEE802.3at and up to 60 W power according to IEEE802.3bt are supported with 2x PoE ports
    • Technical inspectorate certification according to IEC 62443-4-2 for implementing secure system architectures.

    Product versions

    Switches with PROFINET delivery state:

    • Switches with electrical ports:
      • SCALANCE XC208;
        With 8x RJ45 ports 10/100 Mbps, for mounting in control cabinet
      • SCALANCE XC208G;
        With 8x RJ45 ports 10/100/1000 Mbps, for mounting in control cabinet
      • SCALANCE XC216;
        With 16x RJ45 ports 10/100 Mbps, for mounting in the control cabinet
      • SCALANCE XC224;
        With 24x RJ45 ports 10/100 Mbps, for mounting in the control cabinet
    • Switches with electrical and optical ports:
      • SCALANCE XC206-2;
        With 6x RJ45 ports 10/100 Mbps and 2x ST/BFOC ports 100 Mbps
      • SCALANCE XC206-2;
        With 6x RJ45 ports 10/100 Mbps and 2x SC ports 100 Mbps
      • SCALANCE XC206-2SFP;
        With 6x RJ45 ports 10/100 Mbps and 2x SFP plug-in transceivers with 100 or 1000 Mbps
      • SCALANCE XC206-2SFP G;
        With 6x RJ45 ports 10/100/1000 Mbps and 2x SFP plug-in transceivers 1000 Mbps
      • SCALANCE XC216-4C;
        With 12x RJ45 ports 10/100 Mbps and 4x Gigabit combo ports
        (either 10/100/1000 Mbps RJ45 port or SFP plug-in transceiver 1000 Mbps can be used)
      • SCALANCE XC216-4C G;
        With 12x RJ45 ports 10/100/1000 Mbps and 4x Gigabit combo ports
        (either 10/100/1000 Mbps RJ45 port or SFP plug-in transceiver 1000 Mbps can be used)
      • SCALANCE XC224-4C G;
        With 20x RJ45 ports 10/100/1000 Mbps and 4x Gigabit combo ports
        (either 10/100/1000 Mbps RJ45 port or SFP plug-in transceiver 1000 Mbps can be used)
    • Switches with EtherNet/IP delivery state:
      • SCALANCE XC206-2SFP G;
        With 6x RJ45 ports 10/100/1000 Mbps and 2x SFP plug-in transceivers 1000 Mbps
      • SCALANCE XC208G;
        With 8x RJ45 ports 10/100/1000 Mbps, for mounting in control cabinet
      • SCALANCE XC216-4C G;
        With 12x RJ45 ports 10/100/1000 Mbps and 4x Gigabit combo ports
        (either 10/100/1000 Mbps RJ45 port or SFP plug-in transceiver 1000 Mbps can be used)
      • SCALANCE XC224-4C G;
        With 20x RJ45 ports 10/100/1000 Mbps and 4x Gigabit combo ports
        (either 10/100/1000 Mbps RJ45 port or SFP plug-in transceiver 1000 Mbps can be used)
    • PoE switches with delivery state PROFINET with 24 V DC infeed (PoE power budget 120 W):
      • SCALANCE XC206-2G PoE;
        With 2x SFP ports: Support for 1000 or 10,000 Mbps SCALANCE SFPs and 6x PoE RJ45 ports 10/100/1000 Mbps,
        2x of which up to 60 W per PoE port (802.3bt) and 4x of which up to 30 W per PoE port (802.3at)
      • SCALANCE XC208G PoE;
        With 2x RJ45 10/100/1000 Mbps and 6x PoE RJ45 ports 10/100/1000 Mbps,
        2x of which 60 W per PoE port (802.3bt) and 4x of which up to 30 W per PoE port (802.3at)
      • SCALANCE XC216-3G PoE;
        With 3x SFP ports: 2x support for 1000 or 10,000 Mbps SCALANCE SFPs and 1x 1000 Mbps SCALANCE SFP and 2x RJ45 10/100/1000 Mbps and 14x PoE RJ45 ports 10/100/1000 Mbps, 2x of which up to 60 W per PoE port (802.3bt) and 12x of which up to 30 W per PoE port (802.3at)
    • PoE switches with delivery state PROFINET with 54 V DC infeed (PoE power budget: 300 W):
      • SCALANCE XC206-2G PoE;
        With 2x SFP ports: Support for 1000 or 10,000 Mbps SCALANCE SFPs and 6x PoE RJ45 ports 10/100/1000 Mbps,
        2x of which up to 60 W per PoE port (802.3bt) and 4x of which up to 30 W per PoE port (802.3at)
      • SCALANCE XC208G PoE;
        with 2x RJ45 10/100/1000 Mbps and 6x PoE RJ45 ports 10/100/1000 Mbps,
        2x of which up to 60 W per PoE port (802.3bt) and 4x of which up to 30 W per PoE port (802.3at)
      • SCALANCE XC216-3G PoE;
        With 3x SFP ports: 2x support for 1000 or 10,000 Mbps SCALANCE SFPs and 1x 1000 Mbps SCALANCE SFP and 2x RJ45 10/100/1000 Mbps and 14x PoE RJ45 ports 10/100/1000 Mbps, 2x of which up to 60 W per PoE port (802.3bt) and 12x of which up to 30 W per PoE port (802.3at)

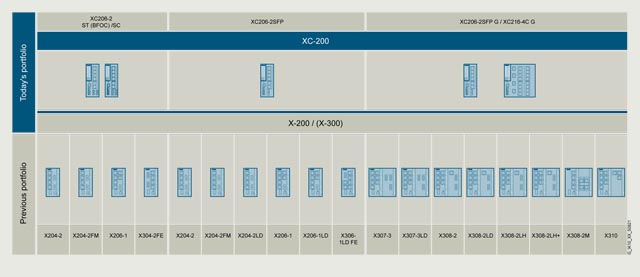

    Migration from SCALANCE X-200/X-300 to the new SCALANCE XC-200 portfolio – Part 1

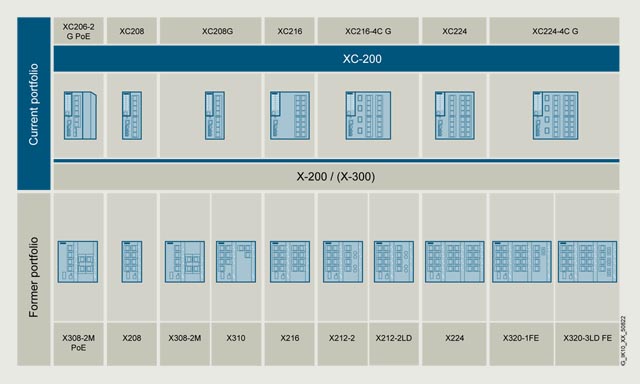

    Migration from SCALANCE X-200/X-300 to the new SCALANCE XC-200 portfolio – Part 2

    Особенности

    • Operational reliability in industrial environments, e.g. due to rugged enclosure, redundancy, temperature range from -40 °C to +70 °C
    • Increased plant availability thanks to:
      • Redundant power supply
      • Redundant network structures based on fast media redundancy HRP and MRP
      • Standby redundancy between HRP rings
      • Redundant coupling of MRP rings with MRP interconnection
      • Prevention of loops by standard STP, RSTP and MSTP mechanisms, and loop detection
      • Improved reconfiguration times for redundant connection of MRP rings in RSTP networks through RSTP+ function
      • SFP plug-in transceivers can be replaced or expanded during operation
      • Easy device replacement by means of plug-in C‑PLUG removable data storage medium
      • Link aggregation (IEEE 802.3ad) for parallel use of ports to increase transfer rate and failure safety
    • Easy monitoring and diagnostics due to separate diagnostics station with integrated LEDs, signaling contact, web browser, traps and email transmission
    • Integration into the SINEC NMS network management system for integrated network diagnostics with central firmware management
    • Reduced engineering expenditure for PLC/HMI due to integration into the SIMATIC system fault message concept
    • Configuration in the TIA Portal as well as in web-based management (WBM)
    • Easy integration in process and system diagnostics with PROFINET or EtherNet/IP
    • Integration of SCALANCE XC-200 switches in existing network management systems, such as SINEC NMS, through SNMP access
    • Easy integration in the process and system diagnostics with PROFINET via SIMATIC PCS 7 and PCS neo
    • Reliable plug-in connection thanks to rugged, industry-standard device connection in conjunction with industry-standard FastConnect connectors
    • Integration of switches through support of S2 system redundancy and H-Sync in SIMATIC S7-1500R/H systems
    • Easy and cost-saving supply of connected cameras (e.g. SIMATIC MV500 IP or Ident cameras), WLAN access points (e.g. SCALANCE W) or localization components (e.g. SIMATIC RTLS gateways) with data and power on a single cable by using the PoE standard (Power over Ethernet, PoE versions)
    • Optimal use of PoE power budget through PoE Power Management. The available PoE power budget can be distributed by the user to the PoE ports as desired
    • Realization of high-performance networks over long distances

    Область применения

    SCALANCE XC-200 Industrial Ethernet switches enable cost-effective configuration of Industrial Ethernet line, star or ring topologies with switching functionality for networks in which high availability or remote diagnostic capabilities are required. The devices with degree of protection IP20 are designed for operation in the control cabinet.

    Features:

    • Integrated industrial network for data, voice, video, and Industrial Ethernet
    • Integrated system diagnostics with PROFINET or EtherNet/IP, SINEC NMS, Syslog, and SNMP
    • Use in the SIMATIC environment
    • Integrated security functions offer protection against unauthorized network access and configuration, see technical specifications
    • The devices are released for SIMATIC PCS 7 and PCS neo and are integration-capable
    • With the PoE variants, simple data and power supply via the Ethernet cable to the connected end devices is also possible. In addition, high-performance networks can be implemented over long distances with 2x 10 Gbps SFP ports

    Дизайн

    SCALANCE XC-200 Industrial Ethernet switches with a rugged enclosure are optimized for mounting on DIN rails and SIMATIC S7-1500 mounting rails. Direct wall mounting in various positions and mounting on a SIMATIC S7-300 mounting rail are also possible. Thanks to the SIMATIC S7-1500 enclosure dimensions, the devices are ideally suited for integration into an automation solution with SIMATIC S7-1500 components.

    The network access points with degree of protection IP20 feature:

    • A 4-pin terminal block (push-in) for connecting the redundant supply voltage (2 x 24 V DC)
    • The following status information is displayed by LEDs on site:
      • Port status
      • Port mode (10/100/1000 Mbps, full/half-duplex)
      • Status of the two power supplies
      • Signaling contact status
      • Signal mask (setpoint status)
      • Redundancy manager mode (RM mode)
      • Standby mode
    • A 2-pin terminal block (push-in) for connecting the floating signaling contact
    • A SELECT/SET button for on-site configuration of the signaling contact

    SCALANCE XC-200 switches are available with the following port types:

    • 10/100/1000BASETX, RJ45 connection;
      Automatic detection of data transfer rate (10, 100 or 1000 Mbps), with autosensing and autocrossover function for connecting IE FC cables via IE FC RJ45 plugs over distances up to 100 m.
    • 100BASEFX, ST/BFOC connection system (SCALANCE XC-206-2);
      ST/BFOC ports for direct connection to Industrial Ethernet glass fiber-optic cable up to 5 km (multimode FOC)
    • 100BASEFX, SC connection system (SCALANCE XC-206-2);
      SC ports for direct connection to Industrial Ethernet glass fiber-optic cable up to 5 km (multimode FOC)
    • SFP slots for 100BASE-X, 1000BASE-X, 10GBASE-X
      LC connections with different ranges can be implemented via SFP modules (multimode/single-mode up to 200 km)
    • In the PoE versions, the SFP interfaces of the combo ports support both 1,000 Mbps SFPs and 10,000 Mbps SFP+

    Функции

    • Setup of electrical and optical Industrial Ethernet line, star and ring topologies
      • Use in ring topologies together with SCALANCE X-200, SCALANCE X-300, SCALANCE XM-400 and XR-500
    • Fast redundancy in the ring with:
      • High Speed Redundancy Protocol (HRP); up to 0.3 seconds for reconfiguration of the ring with 50 switches in the ring
      • PROFINET MRP (Media Redundancy Protocol); up to 0.2 seconds for reconfiguration of the ring with 50 switches in the ring
      • Redundant coupling of MRP rings through MRP interconnection function
      • Redundant connection of MRP rings in RSTP networks through RSTP+ function
    • The functioning of the ring is continuously monitored by the integrated redundancy manager. It recognizes transmission link failures in the ring or failure of a SCALANCE X Industrial Ethernet switch and activates the substitute link within 0.3 seconds or 0.2 seconds with MRP
    • Uncrossed connecting cables can be used due to autocrossover function integrated in the ports
    • Easy diagnostics using signaling contact, SNMP and web browser
    • Easy copper cable diagnostics via web browser for localizing cable breaks
    • Fiber monitoring: Easy fiber-optic cable port diagnostics by means of web browser and SNMP for early detection of changes on the fiber-optic cable line or at the fiber-optic cable ports
    • Integration into the diagnostics of a PROFINET controller with expanded diagnostics functions for a consistent diagnostics concept, including network infrastructure
    • Diagnostics of data traffic by means of a parameterizable mirror port with a standard commercial network analyzer
    • Optimized support of PROFINET real-time communication (RT) through prioritizing
    • Fast device replacement in the event of a fault by using the optional C-PLUG removable data storage medium (not included in scope of supply)
    • Redundant interfacing to company networks
      The SCALANCE XC-200 switches support the standardized redundancy procedures Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP). This enables a subnetwork to be connected redundantly to a higher level corporate network with reduced requirements for the reconfiguration time (in the order of seconds)
    • Support of virtual LANs (VLANs)
      For structuring Industrial Ethernet networks with a fast growing number of nodes, a physically existing network can be divided into several logical networks
    • Load limiting with use of multicast protocols (e.g. querier, video)
      By learning the multicast sources and targets (IGMP snooping), XC-200 switches can also filter multicast data traffic and therefore limit the load in the network. Multicast and broadcast traffic can be limited.
    • Easy connection of PoE terminal devices such as IP cameras or access points using the PoE function and implementation of high-performance networks over long distances (PoE versions only)

    Network topology and network configuration

    The SCALANCE XC-200 Industrial Ethernet switches with IP20 degree of protection are usually installed in a control cabinet together with the stations to be connected. Electrical and optical versions can be installed together in star, line and ring topologies.

    The following network structures and combinations of structures can be implemented:

    • Fast Ethernet and Gigabit rings with fast media redundancy
    • Improved reconfiguration times for redundant connection of MRP rings in RSTP networks through RSTP+ function
    • Star topology with XC-200 switches
      Each SCALANCE XC-200 switch represents a neutral point which can interconnect as many as 8/16/24 nodes or subnetworks.

    When configuring the network, the following boundary conditions must be observed:

    • Maximum cable length for twisted pair:
      • Max. 100 m with Industrial Ethernet FC cable and Industrial Ethernet FC plugs
      • Max. 10 m using patches with TP cord
    • Length of the optical cables:
      • Maximum cable length between two modules for multimode fiber-optic cables:
        – 5000 m at 100 Mbps
        – 750 m at 1 Gbps
      • Maximum cable length between two modules for single-mode fiber-optic cables:
        – 200 km at 100 Mbps
        – 120 km at 1 Gbps
    • IP address:
      The IP address can be assigned by means of the DHCP (Dynamic Host Configuration Protocol). If there is no corresponding server in the network, the IP address can be assigned using the supplied software tool SINEC PNI (Primary Network Initialization) or STEP 7 / TIA Portal. Assignment via the local console port is also possible

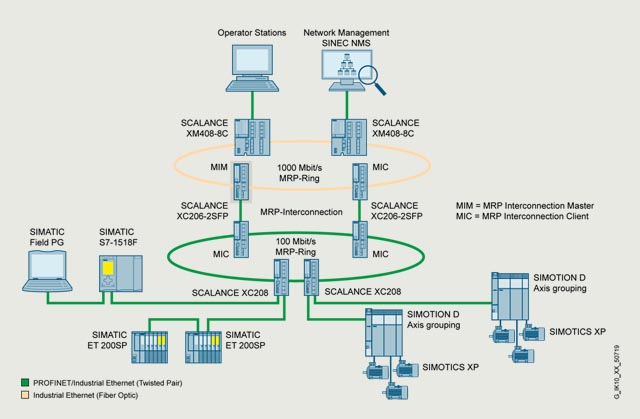

    High network availability by coupling redundant MRP rings with MRP interconnection

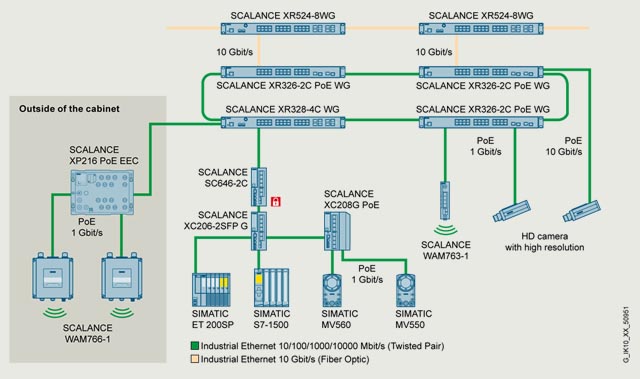

    Supply of data and power to PoE-enabled terminal devices via SCALANCE XC-200PoE (Power over Ethernet).

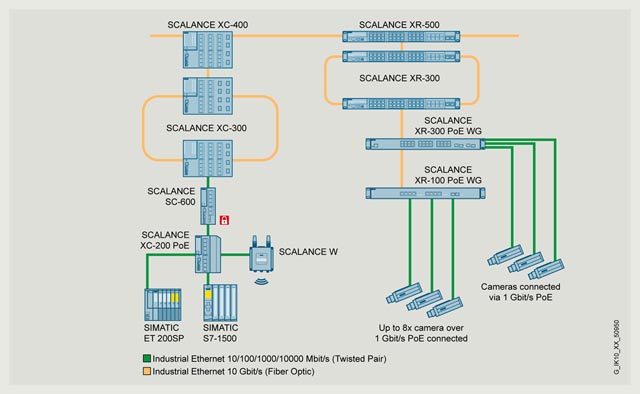

    Up to 10 Gbps bandwidth for demanding applications with SCALANCE XC-200PoE

    Commissioning and diagnostics

    PROFINET diagnostic interrupts from SCALANCE XC-200 switches can be displayed with the appropriate SIMATIC engineering tools and processed in the PLC with the enhanced diagnostic function. The engineering outlay for the PLC and HMI has been drastically reduced due to the complete integration in the SIMATIC concept for system error messages.

    SCALANCE XC-200 Industrial Ethernet switches can also be integrated in a network management system such as SINEC NMS using the standardized Simple Network Management Protocol (SNMP). In the event of faults in the device, error messages (SNMP traps) can be sent to a network management system such as SINEC NMS or as an email to a specified network administrator.

    The integrated web server enables configuration and diagnostics settings to be made using a standard web browser (e.g. port configuration). Statistical information can also be read out via the web server (e.g. port utilization).

    The following information is displayed on site by LEDs:

    • Power
    • Port status
    • Data traffic
    • Signaling contact
    • Redundancy manager function (RM)

    The Industrial Ethernet switches of the SCALANCE XC-200 line can also be monitored using the floating signaling contact.

    Технические данные

    Article number

    6GK5208-0BA00-2AC2

    6GK5216-0BA00-2AC2

    6GK5224-0BA00-2AC2

    6GK5208-0GA00-2AC2

    6GK5208-0GA00-2TC2

    product type designation

    product brand name

    SCALANCE

    SCALANCE

    SCALANCE

    SCALANCE

    SCALANCE

    product type designation

    XC208

    XC216

    XC224

    XC208G

    XC208G (E/IP def.)

    Technical Product Detail Page

    transfer rate

    transfer rate

    10 Mbit/s, 100 Mbit/s

    10 Mbit/s, 100 Mbit/s

    10 Mbit/s, 100 Mbit/s

    10 Mbit/s, 100 Mbit/s, 1 000 Mbit/s

    10 Mbit/s, 100 Mbit/s, 1 000 Mbit/s

    interfaces for communication integrated

    number of electrical connections

    • ● for network components or terminal equipment

    8; RJ45

    16; RJ45

    24; RJ45

    8; RJ45

    8; RJ45

    number of 10/100 Mbit/s RJ45 ports

    • ● with securing collar

    8

    16

    24

    number of 10/100/1000 Mbit/s RJ45 ports

    • ● with securing collar

    8

    8

    interfaces other

    number of electrical connections

    • ● for operator console

    1

    1

    1

    1

    1

    • ● for signaling contact

    1

    1

    1

    1

    1

    • ● for power supply

    1

    1

    1

    1

    1

    type of electrical connection

    • ● for operator console

    RJ11

    RJ11

    RJ11

    RJ11

    RJ11

    • ● for signaling contact

    2-pole terminal block

    2-pole terminal block

    2-pole terminal block

    2-pole terminal block

    2-pole terminal block

    • ● for power supply

    4-pole terminal block

    4-pole terminal block

    4-pole terminal block

    4-pole terminal block

    4-pole terminal block

    design of the removable storage

    • ● C-PLUG

    Yes

    Yes

    Yes

    Yes

    Yes

    operating voltage of the signaling contacts

    • ● at DC rated value

    24 V

    24 V

    24 V

    24 V

    24 V

    operational current of the signaling contacts

    • ● at DC maximum

    0.1 A

    0.1 A

    0.1 A

    0.1 A

    0.1 A

    supply voltage, current consumption, power loss

    product component connection for redundant voltage supply

    Yes

    Yes

    Yes

    Yes

    Yes

    type of voltage 1 of the supply voltage

    DC

    DC

    DC

    DC

    DC

    • ● supply voltage 1 rated value

    24 V

    24 V

    24 V

    24 V

    24 V

    • ● power loss [W] 1 rated value

    4.2 W

    6.6 W

    9 W

    4.3 W

    4.3 W

    • ● consumed current 1 at rated supply voltage maximum

    0.175 A

    0.275 A

    0.375 A

    0.26 A

    0.26 A

    • ● supply voltage 1 voltage range

    9.6 ... 31.2

    9.6 ... 31.2

    9.6 ... 31.2

    9.6 ... 31.2

    9.6 ... 31.2

    • ● consumed current 1 maximum

    0.35 A

    0.55 A

    0.75 A

    0.36 A

    0.36 A

    • ● type of electrical connection 1 for power supply

    4-pole terminal block

    4-pole terminal block

    4-pole terminal block

    4-pole terminal block

    4-pole terminal block

    • ● product component 1 fusing at power supply input

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● fuse protection type 1 at input for supply voltage

    2,5 A / 125 V

    2,5 A / 125 V

    2,5 A / 125 V

    2,5 A / 125 V

    2,5 A / 125 V

    ambient conditions

    ambient temperature

    • ● during operation

    -40 ... +70 °C

    -40 ... +70 °C

    -40 ... +70 °C

    -40 ... +70 °C

    -40 ... +70 °C

    • ● during storage

    -40 ... +85 °C

    -40 ... +85 °C

    -40 ... +85 °C

    -40 ... +85 °C

    -40 ... +85 °C

    • ● during transport

    -40 ... +85 °C

    -40 ... +85 °C

    -40 ... +85 °C

    -40 ... +85 °C

    -40 ... +85 °C

    relative humidity

    • ● at 25 °C without condensation during operation maximum

    95 %

    95 %

    95 %

    95 %

    95 %

    protection class IP

    IP20

    IP20

    IP20

    IP20

    IP20

    design, dimensions and weights

    design

    compact

    compact

    compact

    compact

    compact

    width

    60 mm

    120 mm

    120 mm

    60 mm

    60 mm

    height

    147 mm

    147 mm

    147 mm

    147 mm

    147 mm

    depth

    125 mm

    125 mm

    125 mm

    125 mm

    125 mm

    net weight

    0.52 kg

    0.8 kg

    0.88 kg

    0.52 kg

    0.52 kg

    material of the enclosure

    Polycarbonate (PC-GF10) / pressure die cast aluminum

    Polycarbonate (PC-GF10) / pressure die cast aluminum

    Polycarbonate (PC-GF10) / pressure die cast aluminum

    Polycarbonate (PC-GF10) / pressure die cast aluminum

    Polycarbonate (PC-GF10) / pressure die cast aluminum

    fastening method

    • ● 35 mm DIN-rail mounting

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● wall mounting

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● S7-300 rail mounting

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● S7-1500 rail mounting

    Yes

    Yes

    Yes

    Yes

    Yes

    product features, product functions, product components general

    cascading in the case of a redundant ring at reconfiguration time of <\~0.3\~s

    50

    50

    50

    50

    50

    cascading in cases of star topology

    any (depending only on signal propagation time)

    any (depending only on signal propagation time)

    any (depending only on signal propagation time)

    any (depending only on signal propagation time)

    any (depending only on signal propagation time)

    product function

    • ● QoS according to DSCP

    Yes

    Yes

    Yes

    Yes

    Yes

    product feature

    • ● Cut Through switching method

    No

    No

    No

    No

    No

    • ● Store & Forward switching method

    Yes

    Yes

    Yes

    Yes

    Yes

    product functions management, configuration, engineering

    product function

    • ● CLI

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● web-based management

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● MIB support

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● TRAPs via email

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● configuration with STEP 7

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● RMON

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● SMTP server

    No

    No

    No

    No

    No

    • ● port mirroring

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● multiport mirroring

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● CoS

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● PROFINET IO diagnosis

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● switch-managed

    Yes

    Yes

    Yes

    Yes

    Yes

    PROFINET conformity class

    B

    B

    B

    B

    B

    network load class according to PROFINET

    III

    III

    telegram length for Ethernet maximum

    1 632 byte

    1 632 byte

    1 632 byte

    10 240 byte

    10 240 byte

    protocol is supported

    • ● Telnet

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● HTTP

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● HTTPS

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● TFTP

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● SFTP

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● BOOTP

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● GMRP

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● DCP

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● LLDP

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● EtherNet/IP

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● SNMP v1

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● SNMP v2

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● SNMP v3

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● IGMP (snooping/querier)

    Yes

    Yes

    Yes

    Yes

    Yes

    identification & maintenance function

    • ● I&M0 - device-specific information

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● I&M1 - higher level designation/location designation

    Yes

    Yes

    Yes

    Yes

    Yes

    product functions diagnostics

    product function

    • ● port diagnostics

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● statistics Packet Size

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● statistics packet type

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● error statistics

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● SysLog

    Yes

    Yes

    Yes

    Yes

    Yes

    product functions VLAN

    product function

    • ● VLAN - port based

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● VLAN - protocol-based

    No

    No

    No

    No

    No

    • ● VLAN - IP-based

    No

    No

    No

    No

    No

    number of VLANs maximum

    257

    257

    257

    257

    257

    number of VLANs - dynamic maximum

    257

    257

    257

    257

    257

    number of VLANs at ring redundancy (HRP; MRP; standby link)

    257

    257

    257

    257

    257

    product functions DHCP

    product function

    • ● DHCP server

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● DHCP client

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● DHCP Option 82

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● DHCP Option 66

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● DHCP Option 67

    Yes

    Yes

    Yes

    Yes

    Yes

    product functions redundancy

    protocol is supported Media Redundancy Protocol (MRP)

    Yes

    Yes

    Yes

    Yes

    Yes

    product function

    • ● media redundancy protocol (MRP) with redundancy manager

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● Media Redundancy Protocol Interconnection (MRP-I)

    Yes; LC mode

    Yes; LC mode

    Yes; LC mode

    Yes; LC mode

    Yes; LC mode

    • ● of the PROFINET IO device is supported H-Sync forwarding

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● of the PROFINET IO device is supported PROFINET system redundancy

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● ring redundancy

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● high speed redundancy protocol (HRP) with redundancy manager

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● high speed redundancy protocol (HRP) with standby redundancy

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● redundancy procedure STP

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● redundancy procedure RSTP

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● redundancy procedure RSTP+

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● redundancy procedure MSTP

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● Parallel Redundancy Protocol (PRP)/operation in the PRP-network

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)

    No

    No

    No

    No

    No

    • ● passive listening

    Yes

    Yes

    Yes

    Yes

    Yes

    protocol is supported

    • ● LACP

    Yes

    Yes

    Yes

    Yes

    Yes

    system modification during operation

    product function configuration in RUN via CiR/H-CiR

    Yes

    Yes

    Yes

    Yes

    Yes

    product functions security

    product function

    • ● IEEE 802.1x (radius)

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● RADIUS client

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● broadcast/multicast/unicast limiter

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● broadcast blocking

    Yes

    Yes

    Yes

    Yes

    Yes

    protocol is supported

    • ● SSH

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● SSL

    Yes

    Yes

    Yes

    Yes

    Yes

    product functions time

    product function

    • ● SICLOCK support

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● NTP-client

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● SNTP client

    Yes

    Yes

    Yes

    Yes

    Yes

    protocol is supported

    • ● NTP

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● SNTP

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● IEEE 1588 profile default

    Yes

    Yes

    standards, specifications, approvals

    certificate of suitability

    • ● CE marking

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● cULus approval

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● KC approval

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● Regulatory Compliance Mark (RCM)

    Yes

    Yes

    Yes

    Yes

    Yes

    product conformity according to EMC-guideline

    2014/30/EU

    2014/30/EU

    2014/30/EU

    2014/30/EU

    2014/30/EU

    standard

    • ● for EMC interference emission

    EN 61000-6-4, EN 50121-4

    EN 61000-6-4, EN 50121-4

    EN 61000-6-4, EN 50121-4

    EN 61000-6-4, EN 50121-4

    EN 61000-6-4, EN 50121-4

    • ● for immunity to EMC

    EN 61000-6-2, EN 50121-4

    EN 61000-6-2, EN 50121-4

    EN 61000-6-2, EN 50121-4

    EN 61000-6-2, EN 50121-4

    EN 61000-6-2, EN 50121-4

    • ● for safety from CSA and UL

    UL 60950-1 E115352

    UL 60950-1 E115352

    UL 60950-1 E115352

    UL 60950-1 E115352, UL-61010-2 E85972

    UL 60950-1 E115352, UL-61010-2 E85972

    standards, specifications, approvals hazardous environments

    certificate of suitability

    • ● ATEX

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● UKEX

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● IECEx

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● ULhazloc approval

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● CCC for hazardous zone according to GB standard

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● FM registration

    Yes

    Yes

    Yes

    Yes

    Yes

    standards, specifications, approvals other

    certificate of suitability

    • ● railway application in accordance with EN 50121-4

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● RoHS conformity

    Yes

    Yes

    Yes

    Yes

    Yes

    resistance to air pollution conformity according to ANSI/ISA-71.04

    Yes; G3

    Yes; G3

    IT security for industrial automation systems according to IEC 62443-4-2:2019

    Yes

    Yes

    Yes

    Yes

    Yes

    standards, specifications, approvals marine classification

    certificate of suitability shipbuilding approval note

    Certifications marked 'No' are currently under renewal.

    Certifications marked 'No' are currently under renewal.

    Certifications marked 'No' are currently under renewal.

    Marine classification association

    • ● American Bureau of Shipping Europe Ltd. (ABS)

    Yes

    No

    No

    Yes

    Yes

    • ● French marine classification society (BV)

    No

    No

    No

    Yes

    Yes

    • ● Chinese Classification Society (CCS)

    No

    No

    No

    Yes

    Yes

    • ● Det Norske Veritas (DNV)

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● Korean Register of Shipping (KRS)

    No

    No

    No

    Yes

    Yes

    • ● Lloyds Register of Shipping (LRS)

    No

    No

    No

    Yes

    Yes

    • ● Nippon Kaiji Kyokai (NK)

    Yes

    Yes

    Yes

    Yes

    Yes

    • ● Polski Rejestr Statkow (PRS)

    No

    No

    No

    Yes

    Yes

    • ● Royal Institution of Naval Architects (RINA)

    Yes

    Yes

    Yes

    Yes

    Yes

    standards, specifications, approvals Environmental Product Declaration

    Environmental Product Declaration

    Yes

    Yes

    Yes

    Yes

    Yes

    global warming potential [CO2 eq]

    • ● total

    135.69999 kg

    441.1 kg

    441.1 kg

    135.69999 kg

    135.69999 kg

    • ● during manufacturing

    26.3 kg

    47.67 kg

    47.67 kg

    26.3 kg

    26.3 kg

    • ● during operation

    109 kg

    392.81999 kg

    392.81999 kg

    109 kg

    109 kg

    • ● after end of life

    0.4 kg

    0.57 kg

    0.57 kg

    0.4 kg

    0.4 kg

    product functions general

    MTBF

    48 a

    48 a

    41 a

    54 a

    54 a

    warranty period

    5 a

    5 a

    5 a

    5 a

    5 a

    product function is supported identification link

    Yes; acc. to IEC 61406-1:2022

    Yes; acc. to IEC 61406-1:2022

    Yes; acc. to IEC 61406-1:2022

    Yes; acc. to IEC 61406-1:2022

    Yes; acc. to IEC 61406-1:2022

    further information internet links

    internet link

    • ● to website: Selection guide for cables and connectors

    • ● to web page: selection aid TIA Selection Tool

    • ● to website: Industrial communication

    • ● to web page: SiePortal

    • ● to website: Image database

    • ● to website: CAx-Download-Manager

    • ● to website: Industry Online Support

    Article number

    6GK5206-2RS00-2AC2

    6GK5206-2RS00-5AC2

    6GK5208-0RA00-2AC2

    6GK5208-0RA00-5AC2

    product type designation

    product brand name

    SCALANCE

    SCALANCE

    SCALANCE

    SCALANCE

    product type designation

    XC206-2G PoE

    XC206-2G PoE (DC 54V)

    XC208G PoE

    XC208G PoE (DC 54V)

    Technical Product Detail Page

    transfer rate

    transfer rate

    10 Mbit/s, 100 Mbit/s, 1 000 Mbit/s

    10 Mbit/s, 100 Mbit/s, 1 000 Mbit/s

    10 Mbit/s, 100 Mbit/s, 1 000 Mbit/s

    10 Mbit/s, 100 Mbit/s, 1 000 Mbit/s

    transfer rate

    10 Gbit/s

    10 Gbit/s

    interfaces for communication integrated

    number of electrical connections

    • ● for network components or terminal equipment

    6; RJ45

    6; RJ45

    8; RJ45

    8; RJ45

    number of 10/100/1000 Mbit/s RJ45 ports

    • ● with securing collar

    4 PoE ports according to IEEE 802.3at (30 W), 2 PoE ports according to IEEE 802.3bt (60 W)

    4 PoE ports according to IEEE 802.3at (30 W), 2 PoE ports according to IEEE 802.3bt (60 W)

    2; 4 PoE ports according to IEEE 802.3at (30 W), 2 PoE ports according to IEEE 802.3bt (60 W)

    2; 4 PoE ports according to IEEE 802.3at (30 W), 2 PoE ports according to IEEE 802.3bt (60 W)

    • ● with securing collar with PoE

    6

    6

    6

    6

    number of electrical connections

    • ● for SFP

    2

    2

    interfaces for communication plug-in

    number of electrical connections

    • ● for SFP+

    2; SFPs with 1000 Mbit/s or 10,000 Mbit/s possible; 100 Mbit/s with SFP991-1(LD) A possible

    2; SFPs with 1000 Mbit/s or 10,000 Mbit/s possible; 100 Mbit/s with SFP991-1(LD) A possible

    interfaces other

    number of electrical connections

    • ● for operator console

    1

    1

    1

    1

    • ● for signaling contact

    1

    1

    1

    1

    type of electrical connection

    • ● for operator console

    RJ11

    RJ11

    RJ11

    RJ11

    • ● for signaling contact

    2-pole terminal block

    2-pole terminal block

    2-pole terminal block

    2-pole terminal block

    • ● for power supply

    4-pole terminal block

    4-pole terminal block

    4-pole terminal block

    4-pole terminal block

    design of the removable storage

    • ● C-PLUG

    Yes

    Yes

    Yes

    Yes

    operating voltage of the signaling contacts

    • ● at DC rated value

    24 V

    54 V

    24 V

    54 V

    operational current of the signaling contacts

    • ● at DC maximum

    0.1 A

    0.1 A

    0.1 A

    0.1 A

    supply voltage, current consumption, power loss

    product component connection for redundant voltage supply

    Yes

    Yes

    Yes

    Yes

    supplied active power of PSE with PoE

    • ● total maximum

    144 W

    260 W

    144 W

    260 W

    type of voltage 1 of the supply voltage

    DC

    DC

    DC

    DC

    • ● supply voltage 1 rated value

    24 V

    54 V

    24 V

    54 V

    • ● power loss [W] 1 rated value

    18 W

    10 W

    • ● consumed current 1 at rated supply voltage maximum

    6 A

    5 A

    • ● supply voltage 1 voltage range

    19.2 ... 31.2

    52 ... 57

    19.2 ... 31.2

    52 ... 57

    • ● consumed current 1 maximum

    6 A

    5 A

    7.5 A

    5 A

    • ● product component 1 fusing at power supply input

    Yes

    Yes

    • ● fuse protection type 1 at input for supply voltage

    15 A / 125 V

    15 A / 125 V

    15 A / 125 V

    15 A / 125 V

    ambient conditions

    ambient temperature

    • ● during operation

    -40 ... +60 °C

    -40 ... +60 °C

    -40 ... +60 °C

    -40 ... +60 °C

    • ● during storage

    -40 ... +85 °C

    -40 ... +85 °C

    -40 ... +85 °C

    -40 ... +85 °C

    • ● during transport

    -40 ... +85 °C

    -40 ... +85 °C

    -40 ... +85 °C

    -40 ... +85 °C

    • ● note

    installation position and SFPs used during the operation have to be considered (see manual)

    installation position and SFPs used during the operation have to be considered (see manual)

    installation position and SFPs used during the operation have to be considered (see manual)

    installation position and SFPs used during the operation have to be considered (see manual)

    relative humidity

    • ● at 25 °C without condensation during operation maximum

    95 %

    95 %

    95 %

    95 %

    protection class IP

    IP20

    IP20

    IP20

    IP20

    design, dimensions and weights

    design

    compact

    compact

    compact

    compact

    width

    100 mm

    60 mm

    100 mm

    60 mm

    height

    147 mm

    147 mm

    147 mm

    147 mm

    depth

    125 mm

    125 mm

    125 mm

    125 mm

    net weight

    0.955 kg

    0.54 kg

    0.955 kg

    0.54 kg

    product feature conformal coating

    No

    No

    No

    No

    material of the enclosure

    Polycarbonate (PC-GF10) / pressure die cast aluminum

    Polycarbonate (PC-GF10) / pressure die cast aluminum

    Polycarbonate (PC-GF10) / pressure die cast aluminum

    Polycarbonate (PC-GF10) / pressure die cast aluminum

    fastening method

    • ● 35 mm DIN-rail mounting

    Yes

    Yes

    Yes

    Yes

    • ● wall mounting

    Yes

    Yes

    Yes

    Yes

    • ● S7-300 rail mounting

    Yes

    Yes

    Yes

    Yes

    • ● S7-1500 rail mounting

    Yes

    Yes

    Yes

    Yes

    product features, product functions, product components general

    cascading in the case of a redundant ring at reconfiguration time of <\~0.3\~s

    50

    50

    50

    50

    cascading in cases of star topology

    any (depending only on signal propagation time)

    any (depending only on signal propagation time)

    any (depending only on signal propagation time)

    any (depending only on signal propagation time)

    product function

    • ● QoS according to DSCP

    Yes

    Yes

    Yes

    Yes

    product feature

    • ● Cut Through switching method

    No

    No

    No

    No

    • ● Store & Forward switching method

    Yes

    Yes

    Yes

    Yes

    product functions management, configuration, engineering

    product function

    • ● CLI

    Yes

    Yes

    Yes

    Yes

    • ● web-based management

    Yes

    Yes

    Yes

    Yes

    • ● MIB support

    Yes

    Yes

    Yes

    Yes

    • ● TRAPs via email

    Yes

    Yes

    Yes

    Yes

    • ● configuration with STEP 7

    Yes

    Yes

    Yes

    Yes

    • ● RMON

    Yes

    Yes

    Yes

    Yes

    • ● SMTP server

    No

    No

    No

    No

    • ● port mirroring

    Yes

    Yes

    Yes

    Yes

    • ● multiport mirroring

    Yes

    Yes

    Yes

    Yes

    • ● CoS

    Yes

    Yes

    Yes

    Yes

    • ● PROFINET IO diagnosis

    Yes

    Yes

    Yes

    Yes

    • ● switch-managed

    Yes

    Yes

    Yes

    Yes

    PROFINET conformity class

    B

    B

    B

    B

    network load class according to PROFINET

    III

    III

    III

    III

    telegram length for Ethernet maximum

    10 240 byte

    10 240 byte

    10 240 byte

    10 240 byte

    protocol is supported

    • ● Telnet

    Yes

    Yes

    Yes

    Yes

    • ● HTTP

    Yes

    Yes

    Yes

    Yes

    • ● HTTPS

    Yes

    Yes

    Yes

    Yes

    • ● TFTP

    Yes

    Yes

    Yes

    Yes

    • ● SFTP

    Yes

    Yes

    Yes

    Yes

    • ● BOOTP

    Yes

    Yes

    Yes

    Yes

    • ● GMRP

    Yes

    Yes

    Yes

    Yes

    • ● DCP

    Yes

    Yes

    Yes

    Yes

    • ● LLDP

    Yes

    Yes

    Yes

    Yes

    • ● EtherNet/IP

    Yes

    Yes

    Yes

    Yes

    • ● SNMP v1

    Yes

    Yes

    Yes

    Yes

    • ● SNMP v2

    Yes

    Yes

    Yes

    Yes

    • ● SNMP v3

    Yes

    Yes

    Yes

    Yes

    • ● IGMP (snooping/querier)

    Yes

    Yes

    Yes

    Yes

    identification & maintenance function

    • ● I&M0 - device-specific information

    Yes

    Yes

    Yes

    Yes

    • ● I&M1 - higher level designation/location designation

    Yes

    Yes

    Yes

    Yes

    product functions diagnostics

    product function

    • ● port diagnostics

    Yes

    Yes

    Yes

    Yes

    • ● statistics Packet Size

    Yes

    Yes

    Yes

    Yes

    • ● statistics packet type

    Yes

    Yes

    Yes

    Yes

    • ● error statistics

    Yes

    Yes

    Yes

    Yes

    • ● SysLog

    Yes

    Yes

    Yes

    Yes

    product functions VLAN

    product function

    • ● VLAN - port based

    Yes

    Yes

    Yes

    Yes

    • ● VLAN - protocol-based

    No

    No

    No

    No

    • ● VLAN - IP-based

    No

    No

    No

    No

    number of VLANs maximum

    257

    257

    257

    257

    number of VLANs - dynamic maximum

    257

    257

    257

    257

    number of VLANs at ring redundancy (HRP; MRP; standby link)

    257

    257

    257

    257

    product functions DHCP

    product function

    • ● DHCP server

    Yes

    Yes

    Yes

    Yes

    • ● DHCP client

    Yes

    Yes

    Yes

    Yes

    • ● DHCP Option 82

    Yes

    Yes

    Yes

    Yes

    • ● DHCP Option 66

    Yes

    Yes

    Yes

    Yes

    • ● DHCP Option 67

    Yes

    Yes

    Yes

    Yes

    product functions redundancy

    protocol is supported Media Redundancy Protocol (MRP)

    Yes

    Yes

    Yes

    Yes

    product function

    • ● media redundancy protocol (MRP) with redundancy manager

    Yes

    Yes

    Yes

    Yes

    • ● Media Redundancy Protocol Interconnection (MRP-I)

    Yes; LC mode

    Yes; LC mode

    Yes; LC mode

    Yes; LC mode

    • ● of the PROFINET IO device is supported H-Sync forwarding

    Yes

    Yes

    Yes

    Yes

    • ● of the PROFINET IO device is supported PROFINET system redundancy

    Yes

    Yes

    Yes

    Yes

    • ● ring redundancy

    Yes

    Yes

    Yes

    Yes

    • ● high speed redundancy protocol (HRP) with redundancy manager

    Yes

    Yes

    Yes

    Yes

    • ● high speed redundancy protocol (HRP) with standby redundancy

    Yes

    Yes

    Yes

    Yes

    • ● redundancy procedure STP

    Yes

    Yes

    Yes

    Yes

    • ● redundancy procedure RSTP

    Yes

    Yes

    Yes

    Yes

    • ● redundancy procedure RSTP+

    Yes

    Yes

    Yes

    Yes

    • ● redundancy procedure MSTP

    Yes

    Yes

    Yes

    Yes

    • ● Parallel Redundancy Protocol (PRP)/operation in the PRP-network

    Yes

    Yes

    Yes

    Yes

    • ● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)

    No

    No

    No

    No

    • ● passive listening

    Yes

    Yes

    Yes

    Yes

    protocol is supported

    • ● LACP

    Yes

    Yes

    Yes

    Yes

    system modification during operation

    product function configuration in RUN via CiR/H-CiR

    Yes

    Yes

    Yes

    Yes

    product functions security

    product function

    • ● IEEE 802.1x (radius)

    Yes

    Yes

    Yes

    Yes

    • ● RADIUS client

    Yes

    Yes

    Yes

    Yes

    • ● broadcast/multicast/unicast limiter

    Yes

    Yes

    Yes

    Yes

    • ● broadcast blocking

    Yes

    Yes

    Yes

    Yes

    protocol is supported

    • ● SSH

    Yes

    Yes

    Yes

    Yes

    • ● SSL

    Yes

    Yes

    Yes

    Yes

    product functions time

    product function

    • ● SICLOCK support

    Yes

    Yes

    Yes

    Yes

    • ● NTP-client

    Yes

    Yes

    Yes

    Yes

    • ● SNTP client

    Yes

    Yes

    Yes

    Yes

    protocol is supported

    • ● NTP

    Yes

    Yes

    Yes

    Yes

    • ● SNTP

    Yes

    Yes

    Yes

    Yes

    • ● IEEE 1588 profile default

    Yes

    Yes

    Yes

    Yes

    standards, specifications, approvals

    certificate of suitability

    • ● CE marking

    Yes

    Yes

    Yes

    Yes

    • ● KC approval

    Yes

    Yes

    Yes

    Yes

    • ● Regulatory Compliance Mark (RCM)

    Yes

    Yes

    Yes

    Yes

    product conformity according to EMC-guideline

    2014/30/EU

    2014/30/EU

    2014/30/EU

    2014/30/EU

    standard

    • ● for EMC interference emission

    EN 61000-6-4, EN 50121-4

    EN 61000-6-4, EN 50121-4

    EN 61000-6-4, EN 50121-4

    EN 61000-6-4, EN 50121-4

    • ● for immunity to EMC

    EN 61000-6-2, EN 50121-4

    EN 61000-6-2, EN 50121-4

    EN 61000-6-2, EN 50121-4

    EN 61000-6-2, EN 50121-4

    standards, specifications, approvals hazardous environments

    certificate of suitability

    • ● ATEX

    Yes

    Yes

    Yes

    Yes

    • ● UKEX

    Yes

    Yes

    Yes

    Yes

    • ● IECEx

    Yes

    Yes

    Yes

    Yes

    • ● CCC for hazardous zone according to GB standard

    Yes

    Yes

    Yes

    Yes

    • ● FM registration

    Yes

    Yes

    Yes

    Yes

    standards, specifications, approvals other

    certificate of suitability

    • ● railway application in accordance with EN 50121-4

    Yes

    Yes

    Yes

    Yes

    • ● RoHS conformity

    Yes

    Yes

    Yes

    IT security for industrial automation systems according to IEC 62443-4-2:2019

    Yes

    Yes

    Yes

    Yes

    standards, specifications, approvals marine classification

    Marine classification association

    • ● American Bureau of Shipping Europe Ltd. (ABS)

    Yes

    Yes

    • ● French marine classification society (BV)

    Yes

    Yes

    • ● Chinese Classification Society (CCS)

    Yes

    Yes

    • ● Det Norske Veritas (DNV)

    Yes

    Yes

    • ● Korean Register of Shipping (KRS)

    Yes

    Yes

    • ● Lloyds Register of Shipping (LRS)

    Yes

    Yes

    • ● Nippon Kaiji Kyokai (NK)

    Yes

    Yes

    • ● Polski Rejestr Statkow (PRS)

    Yes

    Yes

    • ● Royal Institution of Naval Architects (RINA)

    Yes

    Yes

    standards, specifications, approvals Environmental Product Declaration

    Environmental Product Declaration

    Yes

    Yes

    Yes

    Yes

    global warming potential [CO2 eq]

    • ● total

    942.29999 kg

    491.19999 kg

    942.29999 kg

    491.19999 kg

    • ● during manufacturing

    63.42 kg

    52.28 kg

    63.42 kg

    52.28 kg

    • ● during operation

    878.11 kg

    438.3 kg

    878.11 kg

    438.3 kg

    • ● after end of life

    0.76 kg

    0.62 kg

    0.76 kg

    0.62 kg

    product functions general

    MTBF

    42 a

    37 a

    42 a

    37 a

    warranty period

    5 a

    5 a

    5 a

    5 a

    product function is supported identification link

    Yes; acc. to IEC 61406-1:2022

    Yes; acc. to IEC 61406-1:2022

    Yes; acc. to IEC 61406-1:2022

    Yes; acc. to IEC 61406-1:2022

    further information internet links

    internet link

    • ● to website: Selection guide for cables and connectors

    • ● to web page: selection aid TIA Selection Tool

    • ● to website: Industrial communication

    • ● to web page: SiePortal

    • ● to website: Image database

    • ● to website: CAx-Download-Manager

    • ● to website: Industry Online Support

    Article number

    6GK5216-3RS00-2AC2

    6GK5216-3RS00-5AC2

    product type designation

    product brand name

    SCALANCE

    SCALANCE

    product type designation

    XC216-3G PoE

    XC216-3G PoE (DC 54 V)

    Technical Product Detail Page

    transfer rate

    transfer rate

    10 Mbit/s, 100 Mbit/s, 1 000 Mbit/s

    10 Mbit/s, 100 Mbit/s, 1 000 Mbit/s

    transfer rate

    10 Gbit/s

    10 Gbit/s

    interfaces for communication integrated

    number of electrical connections

    • ● for network components or terminal equipment

    16; RJ45

    16; RJ45

    number of 10/100/1000 Mbit/s RJ45 ports

    • ● with securing collar

    16; 12 PoE ports according to IEEE 802.3at (30 W), 2 PoE ports according to IEEE 802.3bt (60 W)

    16; 12 PoE ports according to IEEE 802.3at (30 W), 2 PoE ports according to IEEE 802.3bt (60 W)

    • ● with securing collar with PoE

    14

    14

    number of electrical connections

    • ● for SFP

    3

    3

    interfaces for communication plug-in

    number of electrical connections

    • ● for SFP

    1

    1

    • ● for SFP+

    2; SFPs with 1000 Mbit/s or 10,000 Mbit/s possible; 100 Mbit/s with SFP991-1(LD) A possible

    2; SFPs with 1000 Mbit/s or 10,000 Mbit/s possible; 100 Mbit/s with SFP991-1(LD) A possible

    interfaces other

    number of electrical connections

    • ● for operator console

    1

    1

    • ● for signaling contact

    1

    1

    type of electrical connection

    • ● for operator console

    RJ11

    RJ11

    • ● for signaling contact

    2-pole terminal block

    2-pole terminal block

    • ● for power supply

    4-pole terminal block

    4-pole terminal block

    design of the removable storage

    • ● C-PLUG

    Yes

    Yes

    operating voltage of the signaling contacts

    • ● at DC rated value

    24 V

    54 V

    operational current of the signaling contacts

    • ● at DC maximum

    0.1 A

    0.1 A

    supply voltage, current consumption, power loss

    product component connection for redundant voltage supply

    Yes

    Yes

    supplied active power of PSE with PoE

    • ● total maximum

    150 W

    338 W

    type of voltage 1 of the supply voltage

    DC

    DC

    • ● supply voltage 1 rated value

    24 V

    54 V

    • ● power loss [W] 1 rated value

    28 W

    28 W

    • ● supply voltage 1 voltage range

    19.2 ... 31.2

    52 ... 57

    • ● consumed current 1 maximum

    7.8 A

    6.5 A

    • ● product component 1 fusing at power supply input

    Yes

    Yes

    • ● fuse protection type 1 at input for supply voltage

    15 A / 125 V

    15 A / 125 V

    ambient conditions

    ambient temperature

    • ● during operation

    -40 ... +60 °C

    -40 ... +60 °C

    • ● during storage

    -40 ... +85 °C

    -40 ... +85 °C

    • ● during transport

    -40 ... +85 °C

    -40 ... +85 °C

    • ● note

    installation position and SFPs used during the operation have to be considered (see manual)

    installation position and SFPs used during the operation have to be considered (see manual)

    relative humidity

    • ● at 25 °C without condensation during operation maximum

    95 %

    95 %

    protection class IP

    IP20

    IP20

    design, dimensions and weights

    design

    compact

    compact

    width

    180 mm

    140 mm

    height

    147 mm

    147 mm

    depth

    125 mm

    125 mm

    net weight

    1.56 kg

    1.14 kg

    product feature conformal coating

    No

    No

    material of the enclosure

    Polycarbonate (PC-GF10) / pressure die cast aluminum

    Polycarbonate (PC-GF10) / pressure die cast aluminum

    fastening method

    • ● 35 mm DIN-rail mounting

    Yes

    Yes

    • ● wall mounting

    No

    No

    • ● S7-300 rail mounting

    Yes

    Yes

    • ● S7-1500 rail mounting

    Yes

    Yes

    product features, product functions, product components general

    cascading in the case of a redundant ring at reconfiguration time of <\~0.3\~s

    50

    50

    cascading in cases of star topology

    any (depending only on signal propagation time)

    any (depending only on signal propagation time)

    product function

    • ● QoS according to DSCP

    Yes

    Yes

    product feature

    • ● Cut Through switching method

    No

    No

    • ● Store & Forward switching method

    Yes

    Yes

    product functions management, configuration, engineering

    product function

    • ● CLI

    Yes

    Yes

    • ● web-based management

    Yes

    Yes

    • ● MIB support

    Yes

    Yes

    • ● TRAPs via email

    Yes

    Yes

    • ● configuration with STEP 7

    Yes

    Yes

    • ● RMON

    Yes

    Yes

    • ● SMTP server

    No

    No

    • ● port mirroring

    Yes

    Yes

    • ● multiport mirroring

    Yes

    Yes

    • ● CoS

    Yes

    Yes

    • ● PROFINET IO diagnosis

    Yes

    Yes

    • ● switch-managed

    Yes

    Yes

    PROFINET conformity class

    B

    B

    network load class according to PROFINET

    III

    III

    telegram length for Ethernet maximum

    10 240 byte

    10 240 byte

    protocol is supported

    • ● Telnet

    Yes

    Yes

    • ● HTTP

    Yes

    Yes

    • ● HTTPS

    Yes

    Yes

    • ● TFTP

    Yes

    Yes

    • ● SFTP

    Yes

    Yes

    • ● BOOTP

    Yes

    Yes

    • ● GMRP

    Yes

    Yes

    • ● DCP

    Yes

    Yes

    • ● LLDP

    Yes

    Yes

    • ● EtherNet/IP

    Yes

    Yes

    • ● SNMP v1

    Yes

    Yes

    • ● SNMP v2

    Yes

    Yes

    • ● SNMP v3

    Yes

    Yes

    • ● IGMP (snooping/querier)

    Yes

    Yes

    identification & maintenance function

    • ● I&M0 - device-specific information

    Yes

    Yes

    • ● I&M1 - higher level designation/location designation

    Yes

    Yes

    product functions diagnostics

    product function

    • ● port diagnostics

    Yes

    Yes

    • ● statistics Packet Size

    Yes

    Yes

    • ● statistics packet type

    Yes

    Yes

    • ● error statistics

    Yes

    Yes

    • ● SysLog

    Yes

    Yes

    product functions VLAN

    product function

    • ● VLAN - port based

    Yes

    Yes

    • ● VLAN - protocol-based

    No

    No

    • ● VLAN - IP-based

    No

    No

    number of VLANs maximum

    257

    257

    number of VLANs - dynamic maximum

    257

    257

    number of VLANs at ring redundancy (HRP; MRP; standby link)

    257

    257

    product functions DHCP

    product function

    • ● DHCP server

    Yes

    Yes

    • ● DHCP client

    Yes

    Yes

    • ● DHCP Option 82

    Yes

    Yes

    • ● DHCP Option 66

    Yes

    Yes

    • ● DHCP Option 67

    Yes

    Yes

    product functions redundancy

    protocol is supported Media Redundancy Protocol (MRP)

    Yes

    Yes

    product function

    • ● media redundancy protocol (MRP) with redundancy manager

    Yes

    Yes

    • ● Media Redundancy Protocol Interconnection (MRP-I)

    Yes; LC mode

    Yes; LC mode

    • ● of the PROFINET IO device is supported H-Sync forwarding

    Yes

    Yes

    • ● of the PROFINET IO device is supported PROFINET system redundancy

    Yes

    Yes

    • ● ring redundancy

    Yes

    Yes

    • ● high speed redundancy protocol (HRP) with redundancy manager

    Yes

    Yes

    • ● high speed redundancy protocol (HRP) with standby redundancy

    Yes

    Yes

    • ● redundancy procedure STP

    Yes

    Yes

    • ● redundancy procedure RSTP

    Yes

    Yes

    • ● redundancy procedure RSTP+

    Yes

    Yes

    • ● redundancy procedure MSTP

    Yes

    Yes

    • ● Parallel Redundancy Protocol (PRP)/operation in the PRP-network

    Yes

    Yes

    • ● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)

    No

    No

    • ● passive listening

    Yes

    Yes

    protocol is supported

    • ● LACP

    Yes

    Yes

    system modification during operation

    product function configuration in RUN via CiR/H-CiR

    Yes

    Yes

    product functions security

    product function

    • ● IEEE 802.1x (radius)

    Yes

    Yes

    • ● RADIUS client

    Yes

    Yes

    • ● broadcast/multicast/unicast limiter

    Yes

    Yes

    • ● broadcast blocking

    Yes

    Yes

    protocol is supported

    • ● SSH

    Yes

    Yes

    • ● SSL

    Yes

    Yes

    product functions time

    product function

    • ● SICLOCK support

    Yes

    Yes

    • ● NTP-client

    Yes

    Yes

    • ● SNTP client

    Yes

    Yes

    protocol is supported

    • ● NTP

    Yes

    Yes

    • ● SNTP

    Yes

    Yes

    • ● IEEE 1588 profile default

    Yes

    Yes

    standards, specifications, approvals

    certificate of suitability

    • ● CE marking

    Yes

    Yes

    • ● KC approval

    Yes

    Yes

    • ● Regulatory Compliance Mark (RCM)

    Yes

    Yes

    product conformity according to EMC-guideline

    2014/30/EU

    2014/30/EU

    standard

    • ● for EMC interference emission

    EN 61000-6-4, EN 50121-4

    EN 61000-6-4, EN 50121-4

    • ● for immunity to EMC

    EN 61000-6-2, EN 50121-4

    EN 61000-6-2, EN 50121-4

    standards, specifications, approvals hazardous environments

    certificate of suitability

    • ● ATEX

    Yes

    Yes

    • ● UKEX

    Yes

    Yes

    • ● IECEx

    Yes

    Yes

    • ● CCC for hazardous zone according to GB standard

    Yes

    Yes

    • ● FM registration

    Yes

    Yes

    standards, specifications, approvals other

    certificate of suitability

    • ● railway application in accordance with EN 50121-4

    Yes

    Yes

    • ● RoHS conformity

    Yes

    Yes

    resistance to air pollution conformity according to ANSI/ISA-71.04

    Yes; G3

    Yes; G3

    IT security for industrial automation systems according to IEC 62443-4-2:2019

    Yes

    Yes

    standards, specifications, approvals marine classification

    Marine classification association

    • ● American Bureau of Shipping Europe Ltd. (ABS)

    Yes

    • ● French marine classification society (BV)

    Yes

    • ● Chinese Classification Society (CCS)

    Yes

    • ● Det Norske Veritas (DNV)

    Yes

    • ● Korean Register of Shipping (KRS)

    Yes

    • ● Lloyds Register of Shipping (LRS)

    Yes

    • ● Nippon Kaiji Kyokai (NK)

    Yes

    • ● Polski Rejestr Statkow (PRS)

    Yes

    • ● Royal Institution of Naval Architects (RINA)

    Yes

    standards, specifications, approvals Environmental Product Declaration

    Environmental Product Declaration

    Yes

    Yes

    global warming potential [CO2 eq]

    • ● total

    942.29999 kg

    491.19999 kg

    • ● during manufacturing

    63.42 kg

    52.28 kg

    • ● during operation

    878.11 kg

    438.3 kg

    • ● after end of life

    0.76 kg

    0.62 kg

    product functions general

    MTBF

    24.6 a

    23 a

    warranty period

    5 a

    5 a

    product function is supported identification link

    Yes; acc. to IEC 61406-1:2022

    Yes; acc. to IEC 61406-1:2022

    further information internet links

    internet link

    • ● to website: Selection guide for cables and connectors

    • ● to web page: selection aid TIA Selection Tool

    • ● to website: Industrial communication

    • ● to web page: SiePortal

    • ● to website: Image database

    • ● to website: CAx-Download-Manager

    • ● to website: Industry Online Support

    Дальнейшая информация

    Selection Tool:

    To support the selection of SCALANCE network components, the TIA Selection Tool is available at:

    www.siemens.com/tst

    Ordering overview:

    You can find more information on the FastConnect range in the "Cabling technology for communication networks in industry" ordering overview.

    Ответственный редактор / Инженер

    Директор «Би Энд Би Инжиниринг»
    «Описание оборудования на этой странице составлено на основе нашего 10-летнего опыта работы в сфере пневматического оборудования, запорной арматуры и промышленной автоматизации. Если у вас есть вопросы или комментарии — напишите мне лично».
