SINAMICS V20 Parameter Loader

Обзор

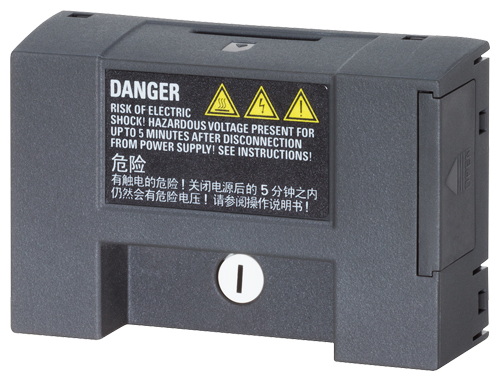

SINAMICS V20 Parameter Loader

Up to 100 parameter sets with parameter settings can be written from the memory card to the converter or saved from the converter to the memory card without connecting the converter to the line supply.

Дизайн

• SD card socket
• 5 V DC socket for connection to an external DC power supply
• Battery supply (2 × AA) integrated
  Enables the SINAMICS V20 Parameter Loader to be operated and data uploaded and downloaded even when mains power is not available. If the converter is being supplied from the mains power, the battery power can be omitted for the SINAMICS V20 Parameter Loader.

Функции

With the SINAMICS V20 Parameter Loader, parameter sets can be uploaded and downloaded between the converter and an SD card.

Интеграция

The SINAMICS V20 Parameter Loader and the SINAMICS V20 I/O Extension Module cannot be operated simultaneously.

Заказные данные

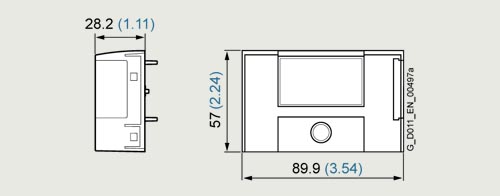

Чертеж

SINAMICS V20 Parameter Loader

All dimensions in mm (values in brackets are in inches).
