Обзор

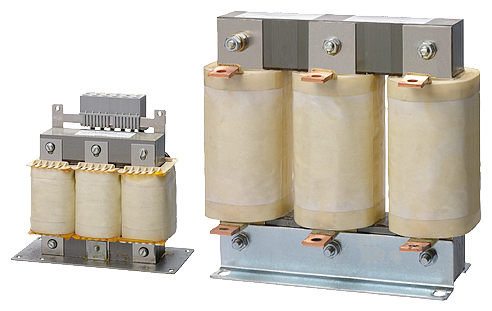

20 kW (25 hp) and 100 kW (125 hp) line reactors
Line reactors reduce low-frequency line harmonic distortions and offload the semiconductors of the Basic Line Module.
Технические данные
Line voltage 380 ... 480 V 3 AC |
Line reactor |
|||
|---|---|---|---|---|
6SL3000-0CE22-0AA0 |
6SL3000-0CE24-0AA0 |
6SL3000-0CE31-0AA0 |
||
Rated current |
A |
37 |
74 |
185 (7.28) |
|
Power loss at 50/60 Hz |
kW |
0.13/0.154 |
0.27/0.32 |
0.48/0.565 |
Line/load connection |
Screw-type terminals |
Screw-type terminals |
Flat connector for M8 screw |
|
|
mm2 |
0.5 … 16 |
2.5 ... 35 |
– |
PE connection |
M4 screw |
M6 screw studs |
M8 screw studs |
|
Degree of protection |
IP20 |
IP20 |
IP00 |
|
Dimensions |
||||
|
mm (in) |
178 (7.01) |
210 (8.27) |
261 (10.28) |
|
mm (in) |
165 (6.50) |
239 (9.41) |
228 (8.98) |
|
mm (in) |
100 (3.94) |
105 (4.13) |
138 (5.43) |
Weight, approx. |
kg (lb) |
5.2 (11.5) |
11.2 (24.7) |
21.7 (47.9) |
Certificate of suitability |
cURus |
cURus |
cURus |
|
Suitable for Basic Line Module in booksize format |
Type |
6SL3130-1TE22-0AA0 |
6SL3130-1TE24-0AA0 |
6SL3130-1TE31-0AA0 |
|
kW (hp) |
20 (25) |
40 (50) |
100 (125) |
