Обзор

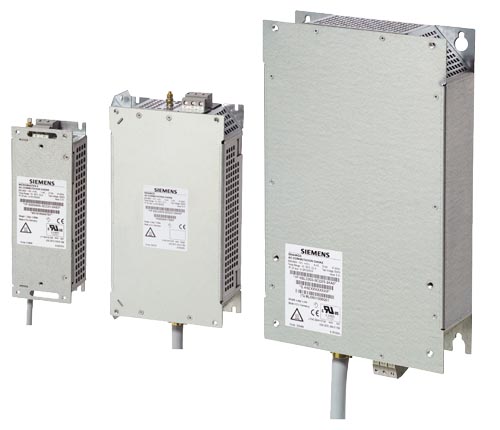

Line reactors for frame sizes FSA to FSE
Line reactors are used to smooth voltage peaks or to bridge commutating dips. Line reactors also reduce the effects of harmonics on the converter and the line supply.
Заказные данные
Rated power |
SINAMICS V20 |
Line reactor |
||
|---|---|---|---|---|
kW |
hp |
6SL3210- |
Frame size |
Article No. |
200 ... 240 V 1 AC | ||||
0.12 |
0.16 |
5BB11-2 . V1 |
FSAA |
6SE6400-3CC00-4AB3 |
0.25 |
0.33 |
5BB12-5 . V1 |
FSAA |
|
0.37 |
0.5 |
5BB13-7 . V1 |
FSAA |
6SE6400-3CC01-0AB3 |
0.55 |
0.75 |
5BB15-5 . V1 |
FSAB |
|
0.75 |
1 |
5BB17-5 . V1 |
FSAB |
|
1.1 |
1.5 |
5BB21-1 . V1 |
FSAC |
6SE6400-3CC02-6BB3 |
1.5 |
2 |
5BB21-5 . V1 |
FSAC |
|
2.2 |
3 |
5BB22-2 . V1 |
FSAD |
6SE6400-3CC03-5CB3 |
3 |
4 |
5BB23-0 . V1 |
FSAD |
|
Rated power |
SINAMICS V20 |
Line reactor |
||
|---|---|---|---|---|
kW |
hp |
6SL3210- |
Frame size |
Article No. |
380 ... 480 V 3 AC | ||||
0.37 |
0.5 |
5BE13-7 . V1 |
FSA |
6SL3203-0CE13-2AA0 |
0.55 |
0.75 |
5BE15-5 . V1 |
FSA |
|
0.75 |
1 |
5BE17-5 . V1 |
FSA |
|
1.1 |
1.5 |
5BE21-1 . V1 |
FSA |
|
1.5 |
2 |
5BE21-5 . V1 |
FSA |
6SL3203-0CE21-0AA0 |
2.2 |
3 |
5BE22-2 . V1 |
FSA |
|
3 |
4 |
5BE23-0 . V1 |
FSB |
|
4 |
5 |
5BE24-0 . V1 |
FSB |
|
5.5 |
7.5 |
5BE25-5 . V1 |
FSC |
6SL3203-0CE21-8AA0 |
7.5 |
10 |
5BE27-5 . V1 |
FSC |
|
11 |
15 |
5BE31-1 . V0 |
FSD |
6SL3203-0CE23-8AA0 |
15 |
20 |
5BE31-5 . V0 |
FSD |
|
22 |
30 |
5BE31-8 . V0 |
FSE |
6SL3203-0CJ24-5AA0 |
30 |
40 |
5BE32-2 . V0 |
FSE |
6SL3203-0CD25-3AA0 |
Note:
Especially for dry-room applications conditions, line reactors 6SL3203-0CE..-.... can be used in environment with relative humidity of 0.2 % at 25 °C.
Технические данные
Line voltage 200 ... 240 V 1 AC |
Line reactor |
||||
|---|---|---|---|---|---|
6SE6400-3CC00-4AB3 |
6SE6400-3CC01-0AB3 |
6SE6400-3CC02-6BB3 |
6SE6400-3CC03-5CB3 |
||
Rated current |
A |
3.4 |
8.1 |
22.8 |
29.5 |
Line supply/load connection |
Screw terminals |
Screw terminals |
Screw terminals |
Screw terminals |
|
|
mm2 |
1 ... 2.5 |
1 ... 2.5 |
1.5 ... 6 |
2.5 ... 10 |
PE connection |
M5 stud bolts |
M5 stud bolts |
M5 stud bolts |
M5 stud bolts |
|
Degree of protection |
IP20 |
IP20 |
IP20 |
IP20 |
|
Dimensions |
|||||
|
mm (in) |
75.5 (2.97) |
75.5 (2.97) |
150 (5.91) |
185 (7.28) |
|
mm (in) |
200 (7.87) |
200 (7.87) |
213 (8.39) |
245 (9.65) |
|
mm (in) |
50 (1.97) |
50 (1.97) |
50 (1.97) |
50 (1.97) |
Weight, approx. |
kg (lb) |
0.5 (1.10) |
0.5 (1.10) |
1.2 (2.65) |
3.05 (6.73) |
Suitable for |
Type |
6SL3210-5BB11-2 . V1 |
6SL3210-5BB13-7 . V1 6SL3210-5BB15-5 . V1 |
6SL3210-5BB21-1 . V1 |
6SL3210-5BB22-2 . V1 |
Line voltage 380 ... 480 V 3 AC |
Line reactor |
||||||
|---|---|---|---|---|---|---|---|
6SL3203-0CE13-2AA0 |
6SL3203-0CE21-0AA0 |
6SL3203-0CE21-8AA0 |
6SL3203-0CE23-8AA0 |
6SL3203-0CJ24-5AA0 |
6SL3203-0CD25-3AA0 |
||
Rated current |
A |
4 |
11.3 |
22.3 |
47 |
47 |
63 |
|
Power loss at 50/60 Hz |
W |
23/26 |
36/40 |
53/59 |
88/97 |
90/115 |
90/115 |
|
Line supply/load connection 1L1, 1L2, 1L3 |
Screw terminals |
Screw terminals |
Screw terminals |
Screw terminals |
Screw terminals |
Screw terminals |
|
|
mm2 |
4 |
4 |
10 |
16 |
16 |
16 |
PE connection |
M4 × 8; U washer; spring lock washer |
M4 × 8; U washer; spring lock washer |
M5 × 10; U washer; spring lock washer |
M5 × 10; U washer; spring lock washer |
M8 screw |
M8 screw |
|
Degree of protection |
IP20 |
IP20 |
IP20 |
IP20 |
IP20 |
IP20 |
|
Dimensions |
|||||||
|
mm (in) |
125 (4.92) |
125 (4.92) |
125 (4.92) |
190 (7.48) |
275 (10.83) |
275 (10.83) |
|
mm (in) |
120 (4.72) |
140 (5.51) |
145 (5.71) |
220 (8.66) |
455 (17.91) |
455 (17.91) |
|
mm (in) |
71 (2.8) |
71 (2.8) |
91 (3.58) |
91 (3.58) |
84 (3.31) |
84 (3.31) |
Weight, approx. |
kg (lb) |
1.1 (2.43) |
2.1 (4.63) |
2.95 (6.5) |
7.8 (17.2) |
13 (28.7) |
13 (28.7) |
Suitable for |
Type |
6SL3210-5BE13-7 . V1 |
6SL3210-5BE21-5 . V1 6SL3210-5BE23-0 . V1 |
6SL3210-5BE25-5 . V1 6SL3210-5BE27-5 . V1 |
6SL3210-5BE31-1 . V0 |
6SL3210-5BE31-8 . V0 |
6SL3210-5BE32-2 . V0 |
Note:
Especially for dry-room applications conditions, line reactors 6SL3203-0CE..-.... can be used in environment with relative humidity of 0.2 % at 25 °C.
