Обзор

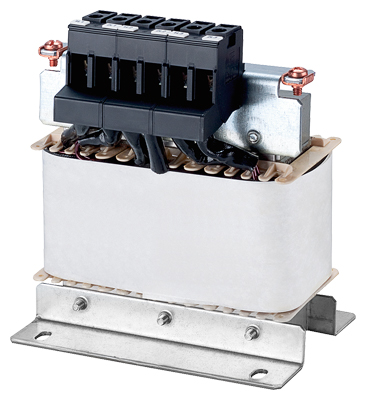

Line reactor for PM240-2 Power Modules, frame size FSA
Line reactors smooth the current drawn by the converter and thus reduce harmonic components in the line current. Through the reduction of the current harmonics, the thermal load on the power components in the rectifier and in the DC link capacitors is reduced as well as the harmonic effects on the supply. The use of a line reactor increases the service life of the converter.
Интеграция
A DC link reactor is integrated in the PM240‑2 Power Modules, frame sizes FSD to FSG, and therefore no line reactor is required.
Line reactors that are optionally available depending on the Power Module used
Frame size |
|||||||
|---|---|---|---|---|---|---|---|
FSA |
FSB |
FSC |
FSD |
FSE |
FSF |
FSG |
|
PM240-2 Power Module with integrated braking chopper | |||||||
|
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
– |
|
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
|
– |
– |
– |
✓ |
✓ |
✓ |
✓ |
Line-side components | |||||||
Line reactors (only for 3‑AC versions 1)) |
S 2) |
S 2) |
S 2) |
I |
I |
I |
I |
S = Lateral mounting
I = Integrated
– = Not possible
1) With the appropriate wiring, the line reactors for 200 V 3 AC can be used for the 200 V versions for 200 V 1 AC with corresponding wiring. More information can be found on the internet at:
2) For frame sizes FSA to FSC, for lines with uk < 1 %, it is recommended that you use a line reactor or the next more powerful Power Module. More information can be found on the internet at:
Заказные данные
Rated power |
PM240‑2 Power Module |
Line reactor |
||
|---|---|---|---|---|
kW |
hp |
Type 6SL3210-... |
Frame size |
Article No. |
200 … 240 V 3 AC 1) | ||||
0.55 |
0.75 |
1PB13-0 . L0 |
FSA |
6SL3203-0CE13-2AA0 |
0.75 |
1 |
1PB13-8 . L0 |
||
1.1 |
1.5 |
1PB15-5 . L0 |
FSB |
6SL3203-0CE21-0AA0 |
1.5 |
2 |
1PB17-4 . L0 |
||
2.2 |
3 |
1PB21-0 . L0 |
||
3 |
4 |
1PB21-4 . L0 |
FSC |
6SL3203-0CE21-8AA0 |
4 |
5 |
1PB21-8 . L0 |
||
5.5 |
7.5 |
1PC22-2 . L0 |
FSC |
6SL3203-0CE23-8AA0 |
7.5 |
10 |
1PC22-8 . L0 |
||
380 ... 480 V 3 AC | ||||
0.55 |
0.75 |
1PE11-8 . L1 |
FSA |
6SL3203-0CE13-2AA0 |
0.75 |
1 |
1PE12-3 . L1 |
||
1.1 |
1.5 |
1PE13-2 . L1 |
||
1.5 |
2 |
1PE14-3 . L1 |
FSA |
6SL3203-0CE21-0AA0 |
2.2 |
3 |
1PE16-1 . L1 |
||
3 |
4 |
1PE18-0 . L1 |
||
4 |
5 |
1PE21-1 . L0 |
FSB |
6SL3203-0CE21-8AA0 |
5.5 |
7.5 |
1PE21-4 . L0 |
||
7.5 |
10 |
1PE21-8 . L0 |
||
11 |
15 |
1PE22-7 . L0 |
FSC |
6SL3203-0CE23-8AA0 |
15 |
20 |
1PE23-3 . L0 |
||
1) With the appropriate wiring, the line reactors for 200 V 3 AC can be used for the 200 V variants for 200 V 1 AC. More information can be found on the internet at:
Note:
Especially for dry-room applications conditions, line reactors 6SL3203-0CE..-.... can be used in environment with relative humidity of 0.2 % at 25 °C.
Технические данные
Line voltage 200 … 240 V 3 AC 1) or 380 ... 480 V 3 AC |
Line reactor |
||||
|---|---|---|---|---|---|
6SL3203-0CE13-2AA0 |
6SL3203-0CE21-0AA0 |
6SL3203-0CE21-8AA0 |
6SL3203-0CE23-8AA0 |
||
Rated current |
A |
4 |
11.3 |
22.3 |
47 |
|
Power loss at 50/60 Hz |
W |
23/26 |
36/40 |
53/59 |
88/97 |
|
Line supply/load connection 1L1, 1L2, 1L3 |
Screw terminals |
Screw terminals |
Screw terminals |
Screw terminals |
|
|
mm2 |
4 |
4 |
10 |
16 |
PE connection |
M4 × 8; U washer; spring lock washer |
M4 × 8; U washer; spring lock washer |
M5 × 10; U washer; spring lock washer |
M5 × 10; U washer; spring lock washer |
|
Degree of protection |
IP20 |
IP20 |
IP20 |
IP20 |
|
Dimensions |
|||||
|
mm (in) |
125 (4.92) |
125 (4.92) |
125 (4.92) |
190 (7.48) |
|
mm (in) |
120 (4.72) |
140 (5.51) |
145 (5.71) |
220 (8.66) |
|
mm (in) |
71 (2.80) |
71 (2.80) |
91 (3.58) |
91 (3.58) |
Weight, approx. |
kg (lb) |
1.1 (2.43) |
2.1 (4.63) |
2.95 (6.50) |
7.8 (17.20) |
Suitable for |
Type |
6SL3210-1PB13-0 . L0 |
6SL3210-1PB15-5 . L0 |
6SL3210-1PB21-4 . L0 |
6SL3210-1PC22-2 . L0 |
|
FSA |
FSB |
FSC |
FSC |
|
Suitable for |
Type |
6SL3210-1PE11-8 . L1 |
6SL3210-1PE14-3 . L1 |
6SL3210-1PE21-1 . L0 |
6SL3210-1PE22-7 . L0 |
|
FSA |
FSA |
FSB |
FSC |
|
1) With the appropriate wiring, the line reactors for 200 V 3 AC can be used for the 200 V variants for 200 V 1 AC. More information can be found on the internet at:
Note:
Especially for dry-room applications conditions, line reactors 6SL3203-0CE..-.... can be used in environment with relative humidity of 0.2 % at 25 °C.
