Соединительные кабели IE M12-180/M12-180

product brand name

SIMATIC NET

SIMATIC NET

SIMATIC NET

SIMATIC NET

Technical Product Detail Page

suitability for use

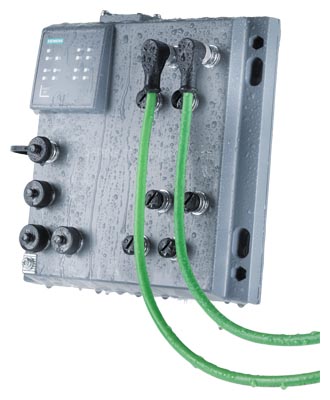

For connecting Industrial Ethernet stations (e.g. SIMATIC ET200 and SCALANCE XP-200) in IP 65/67 degree of protection

For connecting Industrial Ethernet stations (e.g. SIMATIC ET200pro, SCALANCE X208PRO and SIMOTION)

For connecting Industrial Ethernet stations with degree of protection IP65/67/69. Cable with FEP jacket (fluorinated plastic, perfluoroethylene propylene) for use in the food, beverages and tobacco industries (IP69 resistant). Line is water-repellent, weather-proof, resistant to microbes, and extremely resistant to many cleaning agents and disinfectants (such as hypochlorite, chlorine dioxide, peroxyacetic acid, and quaternary ammonium cations).

For connecting Industrial Ethernet stations (e.g. SIMATIC ET200pro, SCALANCE X208PRO and SIMOTION)

cable designation

SF/UTP, 2YY (ST) CY 2x2x0,75/1,5-100 LI GN

2YY (ST) CY 2x2x0,75/1,5-100 LI GN

SF/UTP, 2YY(ST)CY6Y 2X2X0.75/1.55 LI VZN

2YY (ST) CY 2x2x0,75/1,5-100 LI GN

wire length

1 m

10 m

1 m

5 m

electrical data

number of electrical connections

2

2

2

2

attenuation factor per length

• ● at 10 MHz maximum

63 dB/km

63 dB/km

95 dB/km

63 dB/km

• ● at 100 MHz maximum

213 dB/km

213 dB/km

320 dB/km

213 dB/km

impedance

• ● at 1 MHz ... 100 MHz

100 Ω

100 Ω

100 Ω

100 Ω

relative symmetrical tolerance

• ● of the characteristic impedance at 1 MHz … 100 MHz

5 %

5 %

5 %

5 %

near-end crosstalk per length

• ● at 1 MHz ... 100 MHz

500 dB/km

500 dB/km

353 dB/km

500 dB/km

transfer impedance per length at 10 MHz

20 mΩ/m

20 mΩ/m

80 mΩ/m

20 mΩ/m

loop resistance per length maximum

120 mΩ/m

120 mΩ/m

120 mΩ/m

120 mΩ/m

operating voltage

• ● RMS value

80 V

80 V

80 V

80 V

NVP value in percent

66 %

66 %

69 %

66 %

mechanical data

number of electrical cores

4

4

4

4

design of the shield

SF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires

Overlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires

SF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires

Overlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires

type of electrical connection FastConnect

Yes

core diameter

• ● of AWG22 insulated conductor

0.75 mm

0.75 mm

0.75 mm

0.75 mm

outer diameter

• ● of inner conductor

0.75 mm

0.75 mm

0.75 mm

0.75 mm

• ● of the wire insulation

1.5 mm

1.5 mm

1.56 mm

1.5 mm

• ● of the inner sheath of the cable

3.9 mm

3.9 mm

4 mm

3.9 mm

• ● of cable sheath

6.5 mm

6.5 mm

6.5 mm

6.5 mm

symmetrical tolerance of the outer diameter of cable sheath

0.2 mm

0.2 mm

0.2 mm

0.2 mm

material

• ● of the wire insulation

polyethylene (PE)

polyethylene (PE)

polyethylene (PE)

polyethylene (PE)

• ● of the inner sheath of the cable

PVC

PVC

PVC

PVC

• ● of cable sheath

PVC

PVC

PVC/FEP; FEP transparent

PVC

color

• ● of the insulation of data wires

white/yellow/blue/orange

white/yellow/blue/orange

white/yellow/blue/orange

white/yellow/blue/orange

• ● of cable sheath

green

green

green

green

bending radius

• ● with single bend minimum permissible

32.5 mm

32.5 mm

26 mm

32.5 mm

• ● with multiple bends minimum permissible

49 mm

49 mm

52 mm

49 mm

• ● with continuous bending

100 mm

100 mm

100 mm

100 mm

number of bending cycles

3 000 000; Drag chain suitable for 3 million bending cycles at a bending radius of 100 mm, a speed of 4 m/s and an acceleration of 4 m/s²

3 000 000; Drag chain suitable for 3 million bending cycles at a bending radius of 100 mm, a speed of 4 m/s and an acceleration of 4 m/s²

1 000 000; Acceleration 4 m/s²

3 000 000; Drag chain suitable for 3 million bending cycles at a bending radius of 100 mm, a speed of 4 m/s and an acceleration of 4 m/s²

number of torsion cycles with torsion by ± 180° on 1 m cable length

1 000 000

tensile load maximum

150 N

150 N

150 N

150 N

weight per length

68 kg/km

68 kg/km

72 kg/km

68 kg/km

plug

type of plug interlock

screwed

screwed

design of plug-in connection

M12-180

M12-180

tightening torque for M12 round connector maximum

0.6 N·m

connector coding

M12

M12

• ● of the M12 circular connector

D-coded

D-coded

ambient conditions

ambient temperature

• ● during operation

0 ... 60 °C

-25 ... +75 °C

-40 ... +80 °C

-25 ... +75 °C

• ● during storage

-25 ... +75 °C

-25 ... +75 °C

-40 ... +80 °C

-25 ... +75 °C

• ● during transport

-25 ... +75 °C

-25 ... +75 °C

-40 ... +80 °C

-25 ... +75 °C

• ● during installation

0 ... 60 °C

-10 ... +60 °C

-40 ... +80 °C

-10 ... +60 °C

• ● note

electrical properties measured at 20 °C

electrical properties measured at 20 °C

Electrical properties measured at 20 °C, tests according to DIN VDE 0472

electrical properties measured at 20 °C

fire behavior

flame resistant according to UL 1685 (CSA FT 4)

flame resistant according to UL 1685 (CSA FT 4)

flame resistant according to IEC 60332-1-2

flame resistant according to UL 1685 (CSA FT 4)

chemical resistance

• ● to mineral oil

conditional resistance

conditional resistance

oil resistant according to IEC 60811-404 (7x24h/90°C)

conditional resistance

• ● to grease

Conditional resistance

Conditional resistance

Conditional resistance

Conditional resistance

• ● to water

conditional resistance

resistant

conditional resistance

radiological resistance to UV radiation

resistant

resistant

resistant

resistant

protection class IP

IP65, IP67

IP65/67/69

product features, product functions, product components general

product feature

• ● halogen-free

No

No

No

No

• ● PoE capability

Yes

Yes

Yes

Yes

• ● PoE+ capability

Yes

Yes

Yes

Yes

• ● silicon-free

Yes

Yes

Yes

Yes

standards, specifications, approvals

UL/ETL listing 300 V Rating

Yes; c(ETL)us, CMG FT4 / (ETL)us PLTC / Sun Res / OIL RES

Yes; c(ETL)us, CMG FT4 / (ETL)us PLTC / Sun Res / OIL RES

Yes; c(ETL)us 3047254 CMG FT4 75°C

Yes; c(ETL)us, CMG FT4 / (ETL)us PLTC / Sun Res / OIL RES

UL/ETL style 600 V Rating

Yes; cRUus AWM 21694 AWM I A/B 60°C 600V FT2

Yes; cRUus AWM 21694 AWM I A/B 60°C 600V FT2

Yes; AWM 22162 AWM I A/B 80°C 600V FT2

Yes; cRUus AWM 21694 AWM I A/B 60°C 600V FT2

certificate of suitability

UL 2238

UL 2238

• ● EAC approval

Yes

Yes

Yes

Yes

• ● CE marking

Yes

Yes

Yes

Yes

• ● RoHS conformity

Yes

Yes

Yes

Yes

standard for structured cabling

Cat5e

Cat5e

Cat5e

Cat5e

Marine classification association

• ● American Bureau of Shipping Europe Ltd. (ABS)

No

No

No

No

• ● French marine classification society (BV)

No

No

No

No

• ● Det Norske Veritas (DNV)

No

No

No

No

• ● Germanische Lloyd (GL)

No

No

No

No

• ● Lloyds Register of Shipping (LRS)

No

No

No

No

• ● Nippon Kaiji Kyokai (NK)

No

No

No

No

• ● Polski Rejestr Statkow (PRS)

No

No

No

No
