TP Cord

product brand name

SIMATIC NET

SIMATIC NET

Technical Product Detail Page

suitability for use

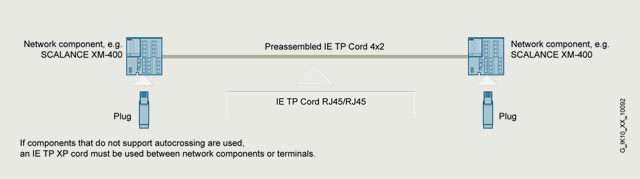

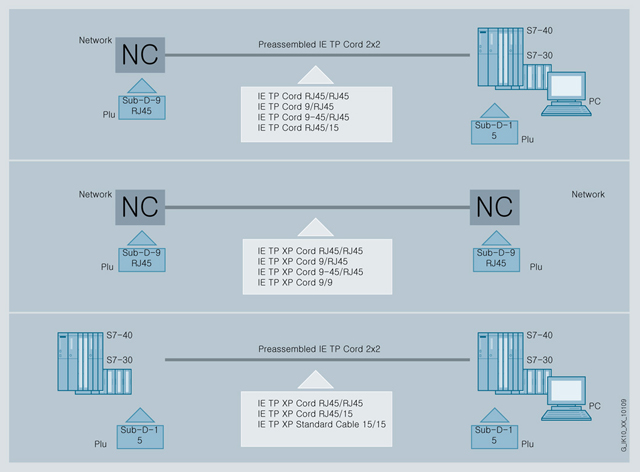

Easy connection of terminal devices to the IE FC cabling system

Easy connection of terminal devices to the IE FC cabling system

cable designation

S/FTP, LI 02YSCH 4x2x0,15 PIMF GN FRNC

S/FTP, LI 02YSCH 4x2x0,15 PIMF RD FRNC

wire length

1 m

1 m

electrical data

number of electrical connections

2

2

attenuation factor per length

• ● at 10 MHz maximum

86 dB/km

86 dB/km

• ● at 100 MHz maximum

280 dB/km

280 dB/km

• ● at 300 MHz maximum

501 dB/km

501 dB/km

• ● at 600 MHz maximum

735 dB/km

735 dB/km

impedance

• ● at 1 MHz ... 100 MHz

100 Ω

100 Ω

• ● at 10 MHz … 600 MHz

100 Ω

100 Ω

relative symmetrical tolerance

• ● of the characteristic impedance at 1 MHz … 100 MHz

15 %

15 %

• ● of the characteristic impedance at 10 MHz … 600 MHz

10 %

10 %

coupling loss at 30 MHz … 100 MHz minimum

70 dB

transfer impedance per length at 10 MHz

10 mΩ/m

10 mΩ/m

loop resistance per length maximum

290 mΩ/m

290 mΩ/m

insulation resistance coefficient

500 GΩ·m

operating voltage

• ● RMS value

80 V

80 V

NVP value in percent

80 %

80 %

mechanical data

number of electrical cores

8

8

design of the shield

S/FTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires

S/FTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires

core diameter

• ● of AWG26 insulated conductor

0.5 mm

0.5 mm

outer diameter

• ● of inner conductor

0.5 mm

0.5 mm

• ● of the wire insulation

1 mm

1 mm

• ● of cable sheath

6.2 mm

6.2 mm

symmetrical tolerance of the outer diameter of cable sheath

0.3 mm

0.3 mm

material

• ● of the wire insulation

polyethylene (PE)

polyethylene (PE)

• ● of cable sheath

FRNC

FRNC

color

• ● of the insulation of data wires

white/blue, white/orange, white/green, white/brown

white/blue, white/orange, white/green, white/brown

• ● of cable sheath

green

green

bending radius

• ● with single bend minimum permissible

31 mm

31 mm

• ● with multiple bends minimum permissible

43.5 mm

43.5 mm

weight per length

50 kg/km

50 kg/km

plug

connector type

RJ45

RJ45

type of plug interlock

latched

latched

design of plug-in connection

RJ45-180

RJ45-180

ambient conditions

ambient temperature

• ● during operation

-25 ... +80 °C

-25 ... +80 °C

• ● during storage

-25 ... +80 °C

-25 ... +80 °C

• ● during transport

-25 ... +80 °C

-25 ... +80 °C

• ● during installation

-25 ... +80 °C

-25 ... +80 °C

• ● note

In fixed installation -40 °C to 80 °C

In fixed installation -40 °C to 80 °C

fire behavior

flame resistant acc. to IEC 60332-1-2, EN 60332-3-24, smoke density acc. to IEC 61034

flame resistant according to IEC 60332-1-2, smoke density according to IEC 61034

class of burning behaviour according to EN 13501-6

Eca

Eca

chemical resistance

• ● to mineral oil

oil resistant according to IEC 60811-2-1 (4 h / 70°C)

oil resistant according to IEC 60811-2-1 (4 h / 70°C)

• ● to grease

Conditional resistance

Conditional resistance

radiological resistance to UV radiation

not resistant

not resistant

protection class IP

IP20

IP20

product features, product functions, product components general

product feature

• ● halogen-free

Yes; halogen-free according to EN 60754-2

Yes

• ● PoE capability

Yes

Yes

• ● PoE+ capability

Yes

Yes

• ● PoE++ capability

Yes

Yes

• ● silicon-free

Yes

Yes

test voltage

• ● at AC core-to-core

500 V

500 V

• ● at AC core shield

1 500 V

1 500 V

standards, specifications, approvals

UL/ETL listing 300 V Rating

No

No

UL/ETL style 600 V Rating

Yes; E502506 AWM STYLE 21279, Wiring Harness

Yes; E130266 AWM STYLE 21279

certificate of suitability

ISO/IEC 11801-1, IEC 61035

ISO/IEC 11801-1, IEC 61035

• ● EAC approval

Yes

Yes

• ● UL approval

Yes

Yes

• ● RoHS conformity

Yes

Yes

standard for structured cabling

Cat6A

Cat6A

Marine classification association

• ● American Bureau of Shipping Europe Ltd. (ABS)

No

No

• ● French marine classification society (BV)

No

No

• ● Det Norske Veritas (DNV)

No

No

• ● Germanische Lloyd (GL)

No

No

• ● Lloyds Register of Shipping (LRS)

No

No

• ● Nippon Kaiji Kyokai (NK)

No

No

• ● Polski Rejestr Statkow (PRS)

No

No
